How To Erase DTC (With Consult-II)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

If a DTC is displayed for both ECM and TCM, it needs to be erased for both ECM and TCM .

If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 seconds and then turn it ON (engine stopped) again.
Turn CONSULT-II ON and touch A/T.
Touch SELF DIAGNOSIS.
Touch ERASE. (The DTC in the TCM will be erased.) Then touch BACK twice.
Touch ENGINE.
Touch SELF DIAGNOSIS.
Touch ERASE. (The DTC in the ECM will be erased.)

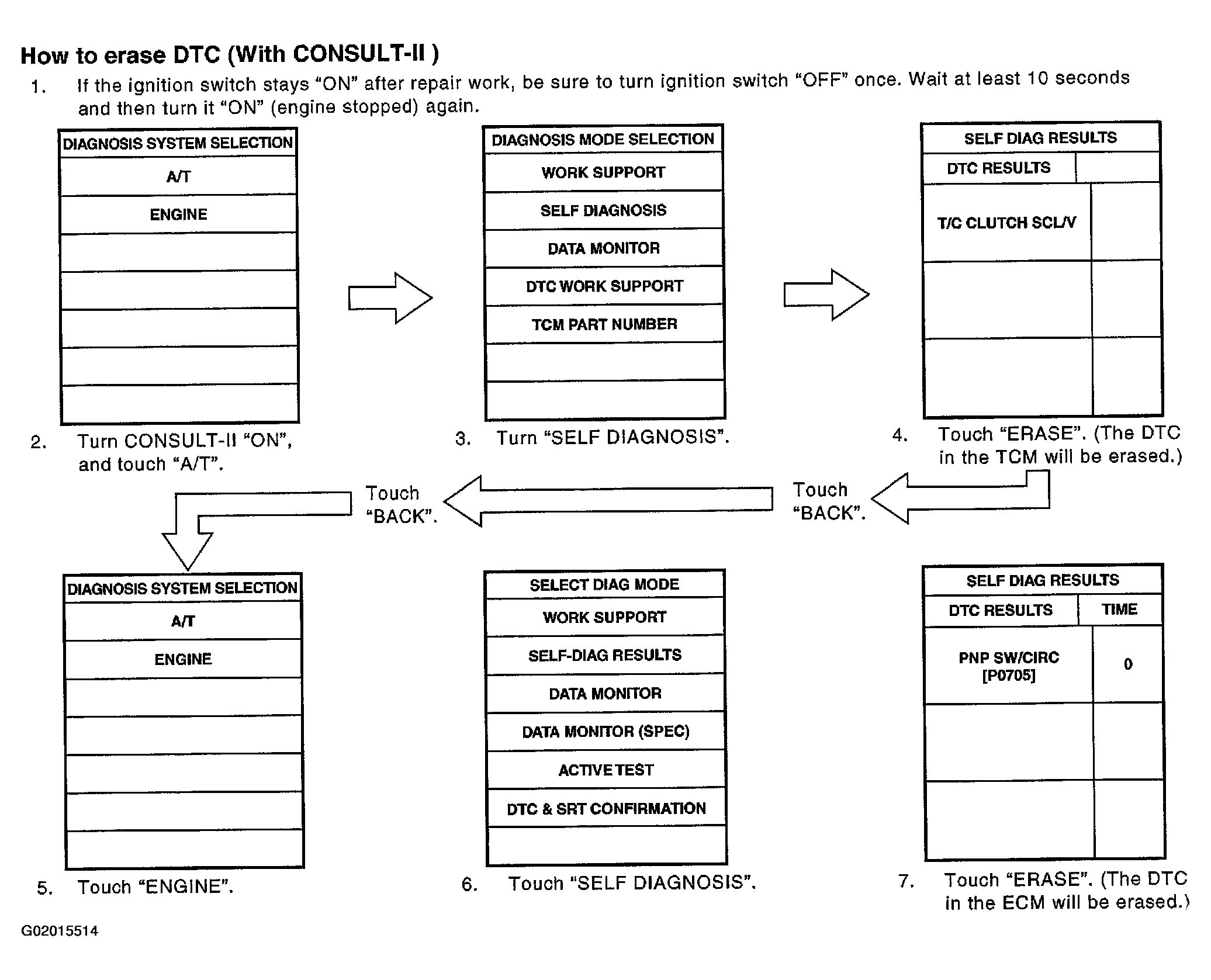

Fig 1: DTC Erasing Method Display With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
