Low & Reverse Brake Drive Plates

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check facing for burns, cracks or damage.
Measure thickness of facing.

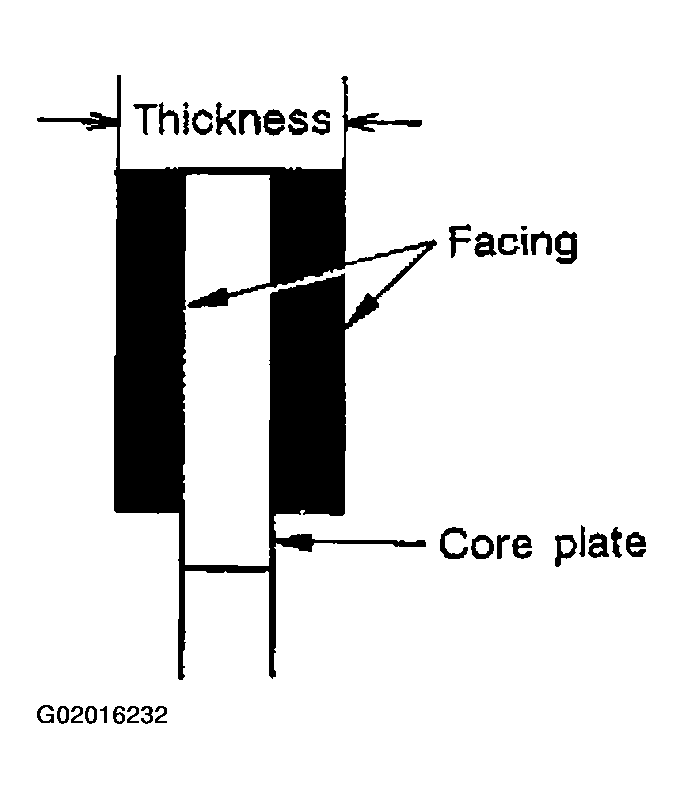

Fig 1: Identifying Low & Reverse Brake Drive Plates Facing Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.

Thickness of drive plate

Standard value: 2.0 mm (0.079 in)

Wear limit: 1.8 mm (0.071 in)
If not within wear limit, replace.
