Forward Clutch And Overrun Clutch Dish Plates

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check for deformation or damage.
Measure thickness of dish plate.

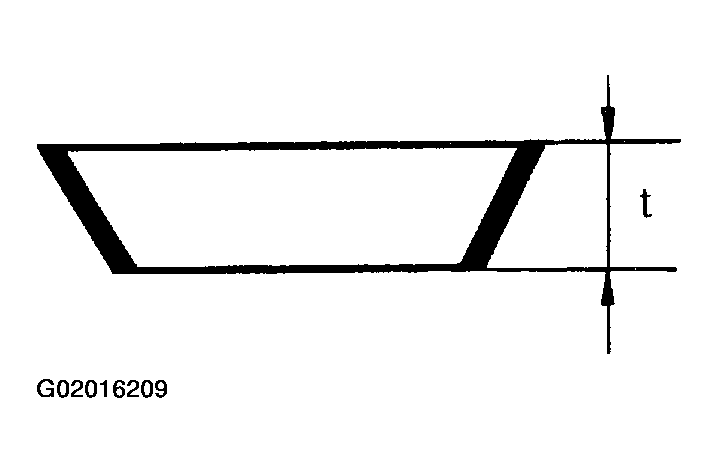

Fig 1: Identifying Forward & Overrun Clutch Dish Plate Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.

Thickness of dish plate t

Forward clutch: 2.5 mm (0.098 in)

Overrun clutch: 2.15 mm (0.0846 in)
If deformed or fatigued, replace.
