Section 777 (Automatic Transaxle Re4F03B)
>>
Final Drive
>>
Inspection
>>
Gear, Washer, Shaft And Case
Gear, Washer, Shaft And Case
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Check mating surfaces of differential case, side gears and pinion mate gears.
Check washers for wear.

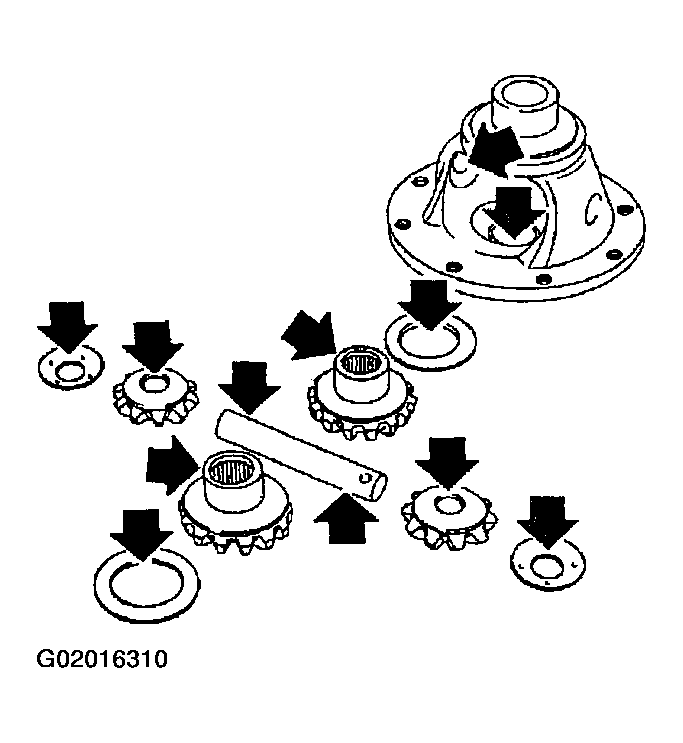

Fig 1: Checking Differential Case, Side Gears & Pinion Mate Gears Mating Surfaces
Courtesy of NISSAN MOTOR CO., U.S.A.
