Resistance Check

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between two terminals.

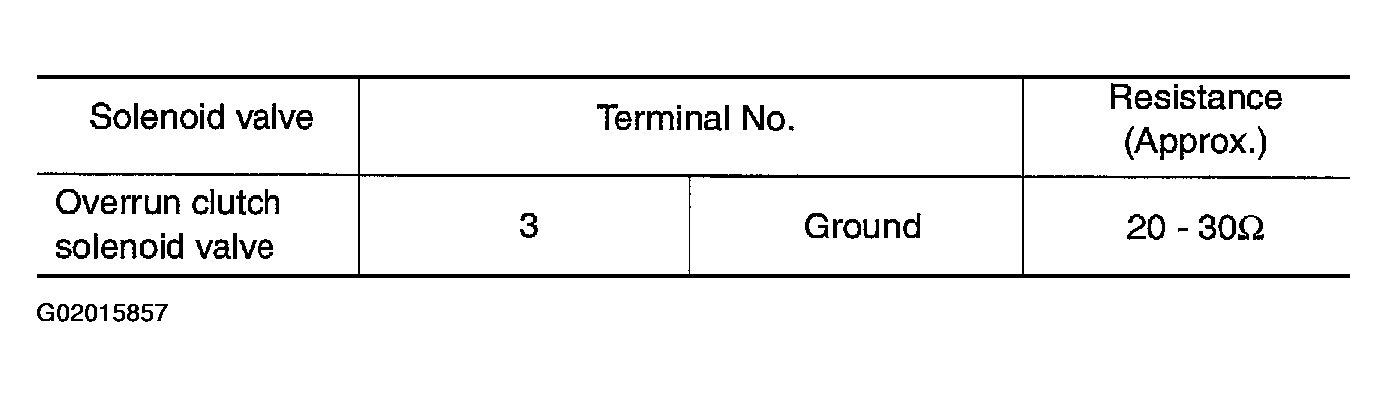

Fig 1: Overrun Clutch Solenoid Valve Terminal Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

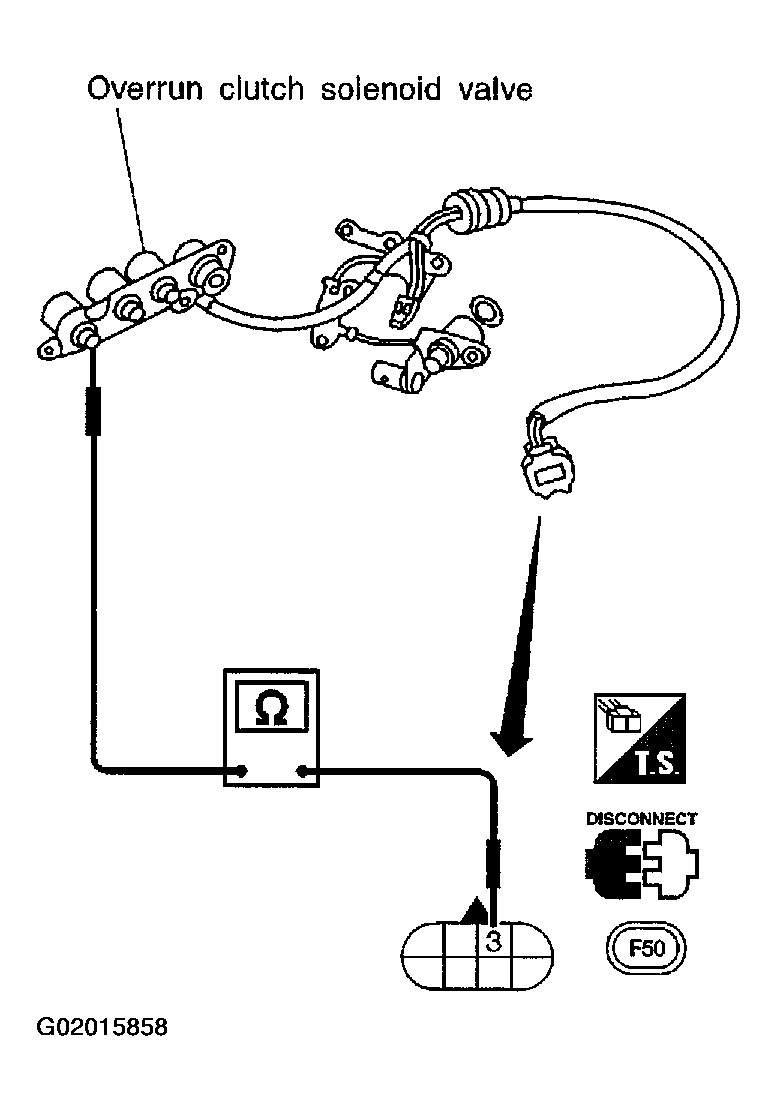

Fig 2: Checking Resistance Between Overrun Clutch Solenoid Valve Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
