Section 777 (Automatic Transaxle Re4F03B)
>>
Diagnostic Trouble Code Definitions
>>
DTC P0731: A/T 1ST Gear Function
>>
Wiring Diagram - AT - 1ST
Wiring Diagram - AT - 1ST
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

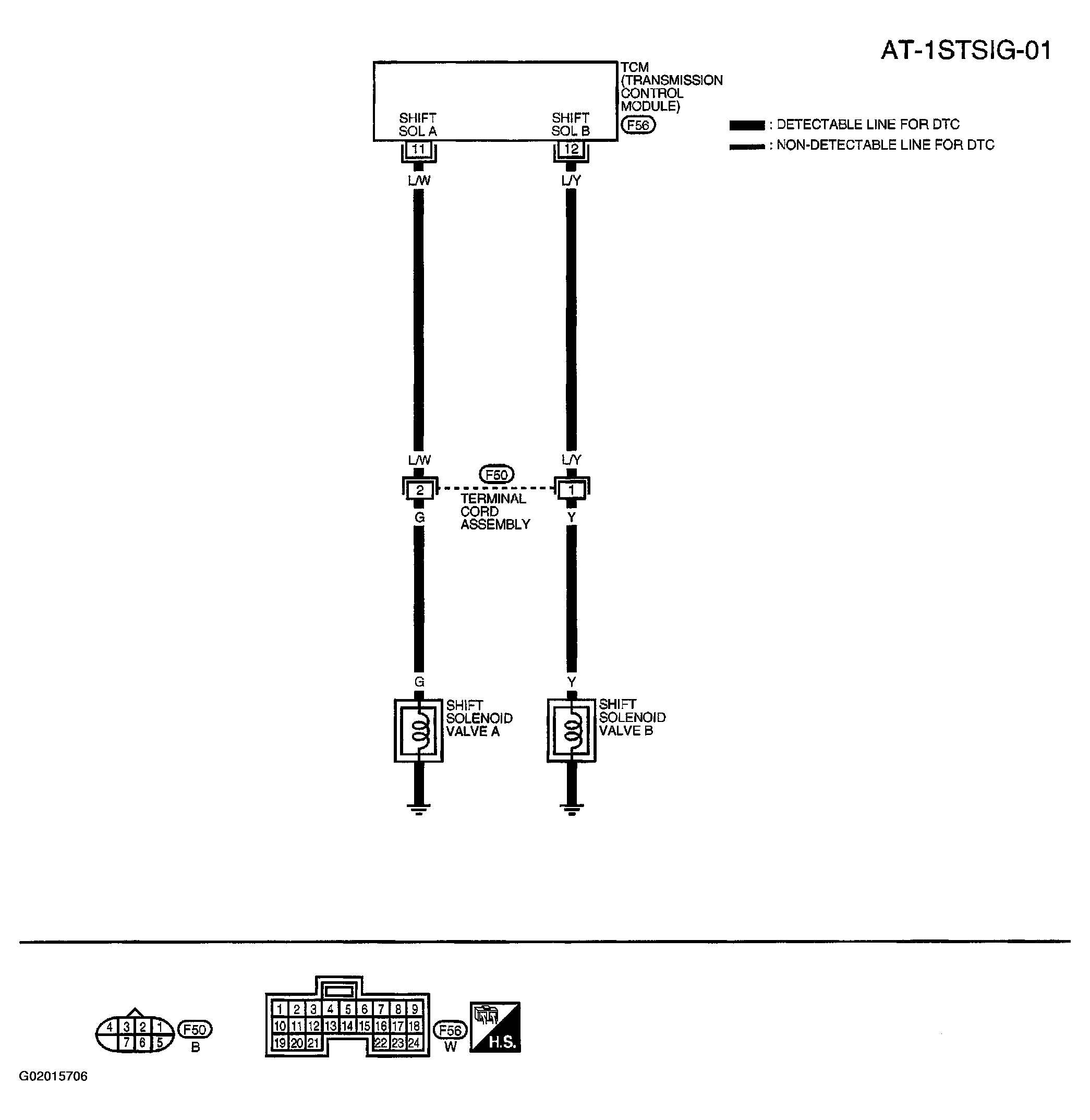

Fig 1: 1st Gear Function Wiring Diagram & Identifying Connectors (Automatic Transaxle)
Courtesy of NISSAN MOTOR CO., U.S.A.

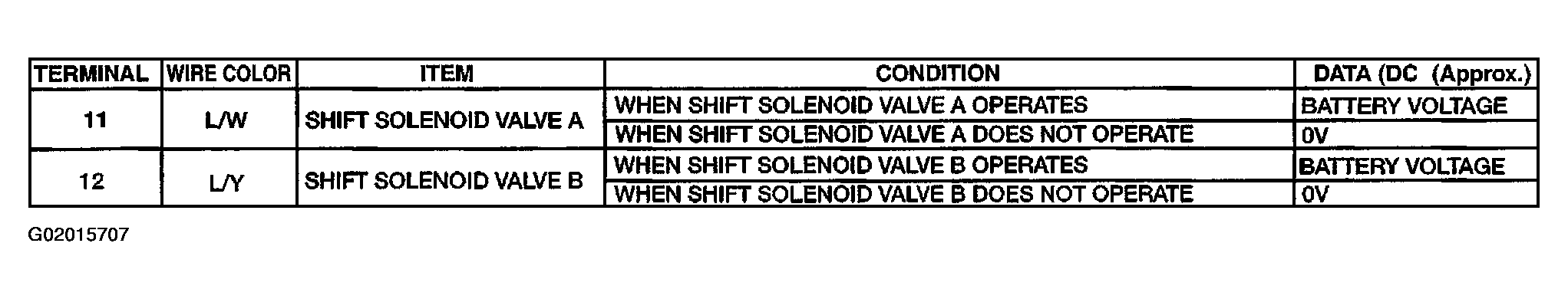

Fig 2: TCM Terminals Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
