Wiring Diagram - AT - FTS

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

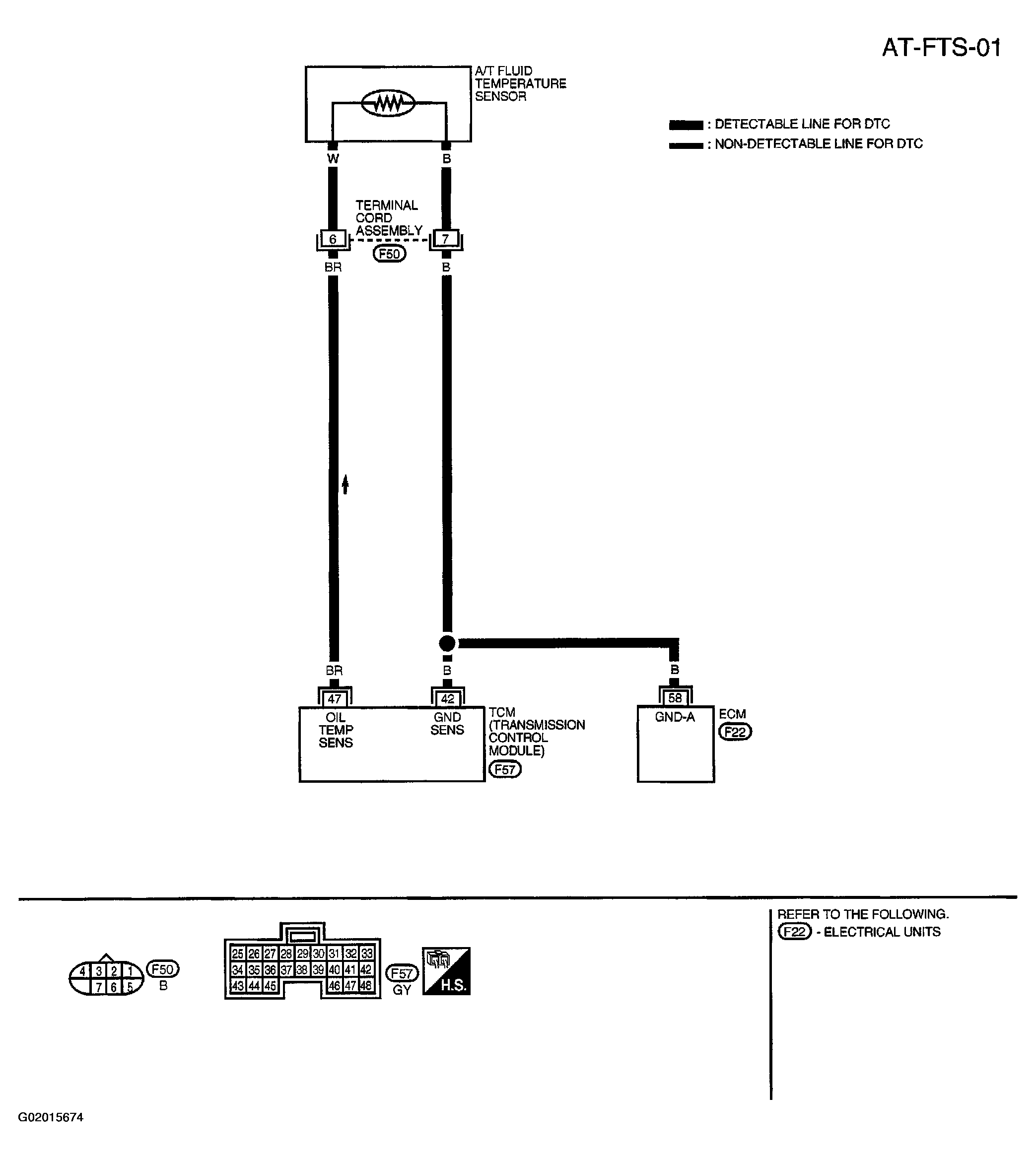

Fig 1: Fluid Temperature Sensor Wiring Diagram & Identifying Connectors (Automatic Transaxle)

Courtesy of NISSAN MOTOR CO., U.S.A.

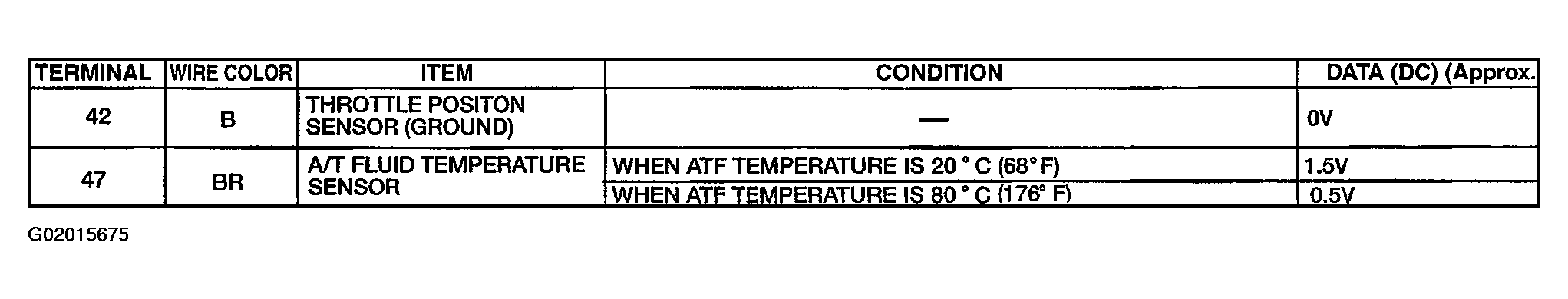

Fig 2: Transmission Control Module Terminals Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
