Total End Play

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure clearance between reverse clutch drum and needle bearing for oil pump cover.
Select proper thickness of bearing race so that end play is within specifications.

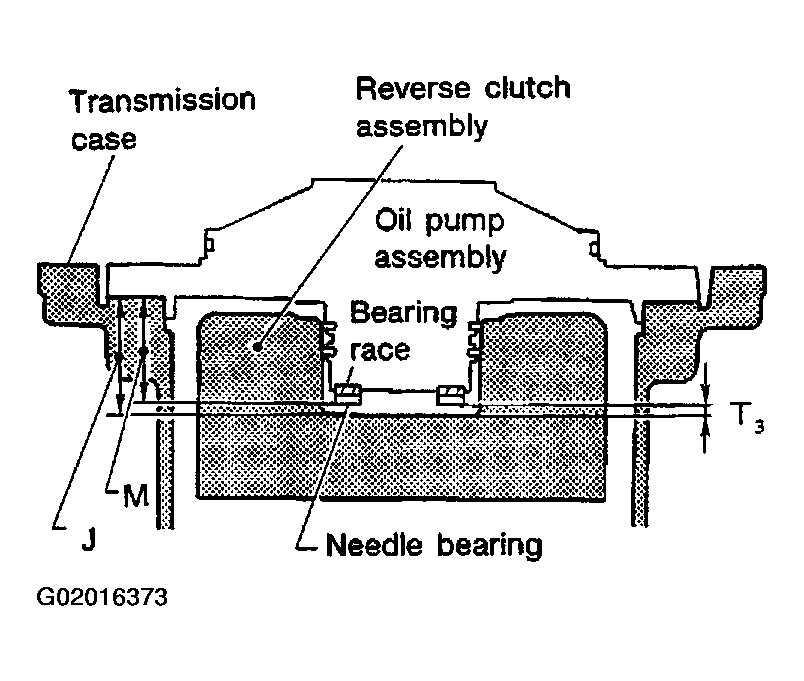

Fig 1: Measuring Clearance Between Reverse Clutch Drum & Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

Measure dimensions K and L and then calculate dimension J.

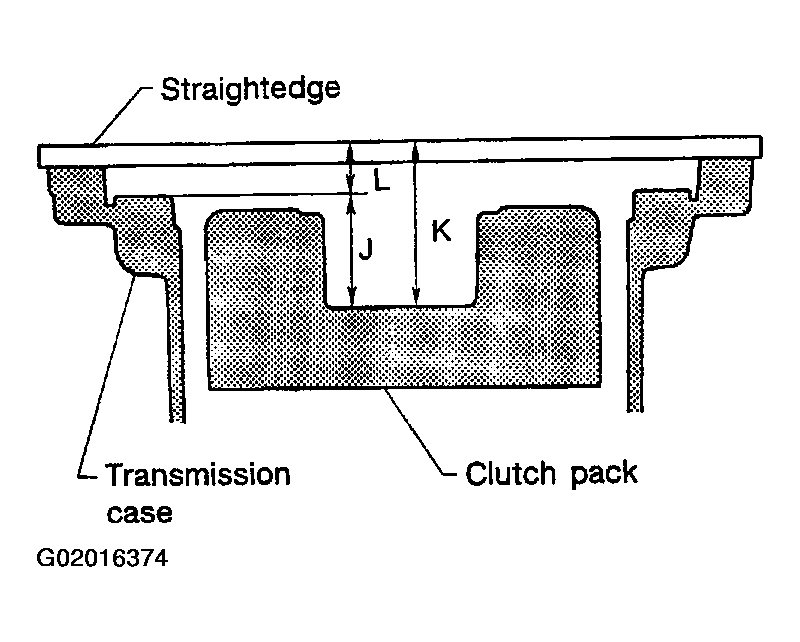

Fig 2: Measuring Dimensions K & L
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimension K.

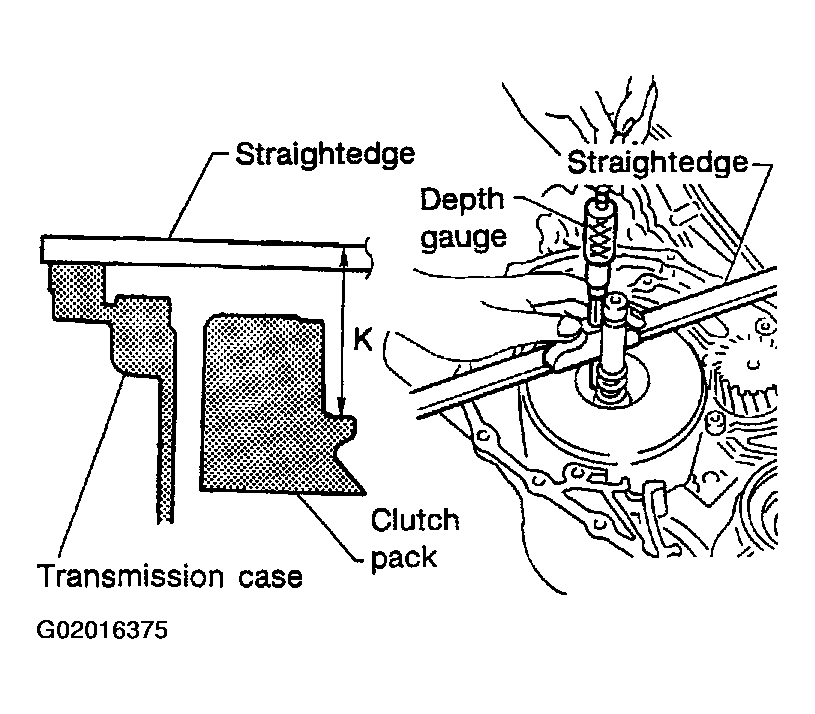

  Fig 3: Measuring Dimension K
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension L.

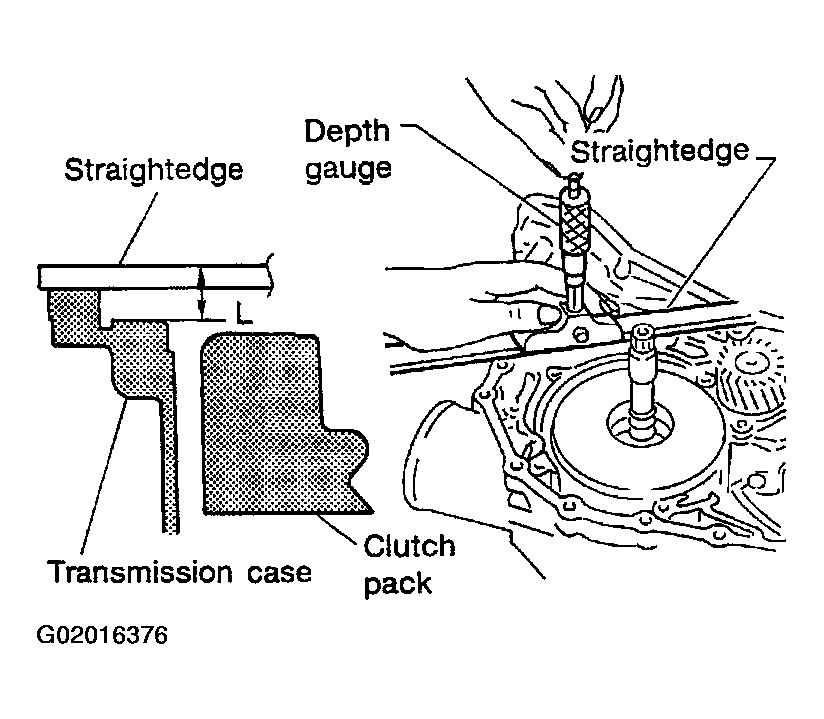

  Fig 4: Measuring Dimension L
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Calculate dimension J.
  "J": Distance between oil pump fitting surface of transmission case and needle bearing mating surface of high clutch drum

  J = K - L
Measure dimension M.

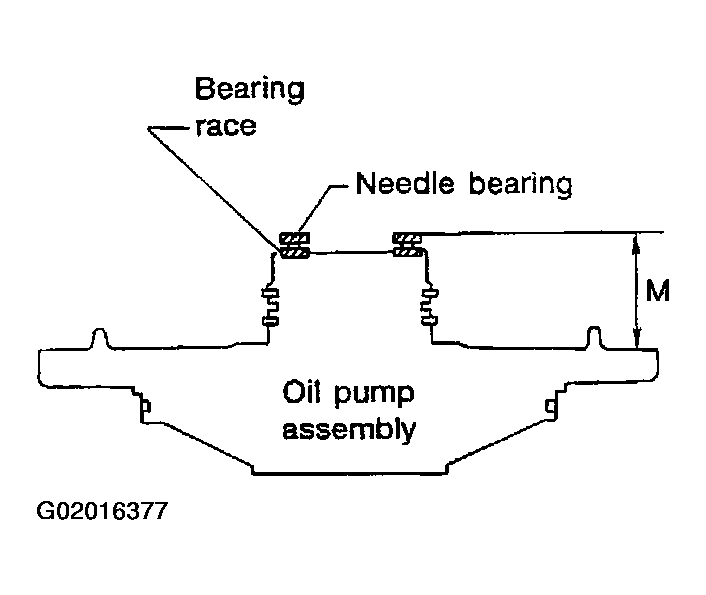

Fig 5: Measuring Dimension M
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Place bearing race and needle bearing on oil pump assembly.
2. Measure dimension M.

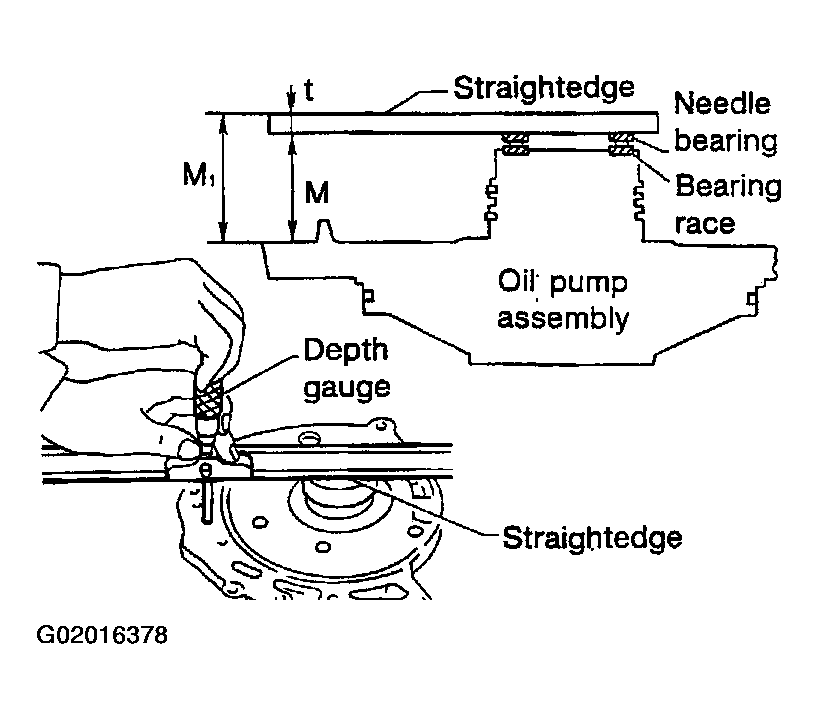

  Fig 6: Placing Bearing Race & Needle Bearing On Pump Assembly & Measuring Dimension M
  Courtesy of NISSAN MOTOR CO., U.S.A.

  "M": Distance between transmission case fitting surface and needle bearing on oil pump cover M1: Indication of gauge
3. Measure thickness of straightedge t.

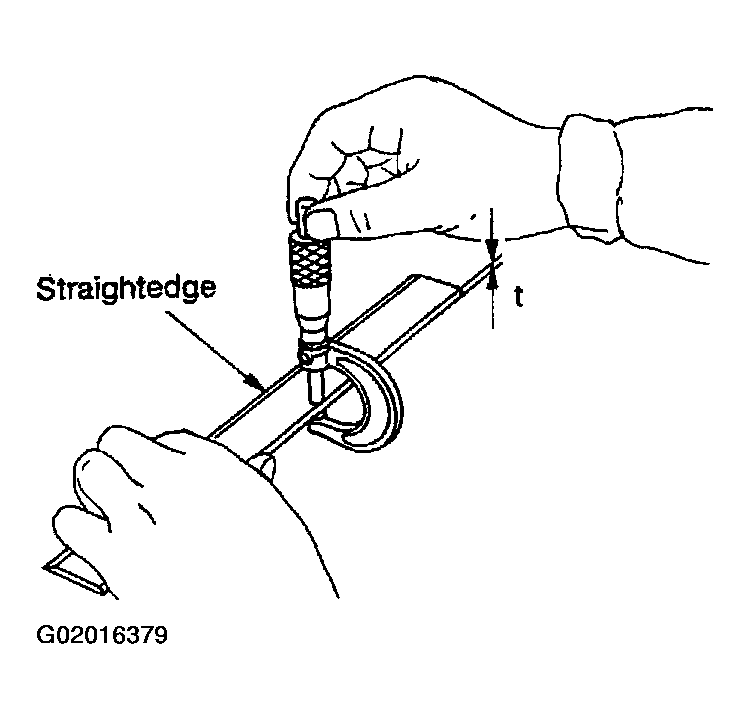

  Fig 7: Measuring Straightedge Thickness
  Courtesy of NISSAN MOTOR CO., U.S.A.

  M = M1 - t
Adjust total end play T3.
T3 = J - M

Total end play T3: 0.25 - 0.55 mm (0.0098 - 0.0217 in)
- Select proper thickness of bearing race so that total end play is within specifications.
  Bearing races: Refer to BEARING RACE FOR ADJUSTING TOTAL END PLAY
