Reverse Clutch End Play

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure clearance between oil pump cover and thrust washer for reverse clutch drum.
Select proper thickness of thrust washer so that end play is within specifications.

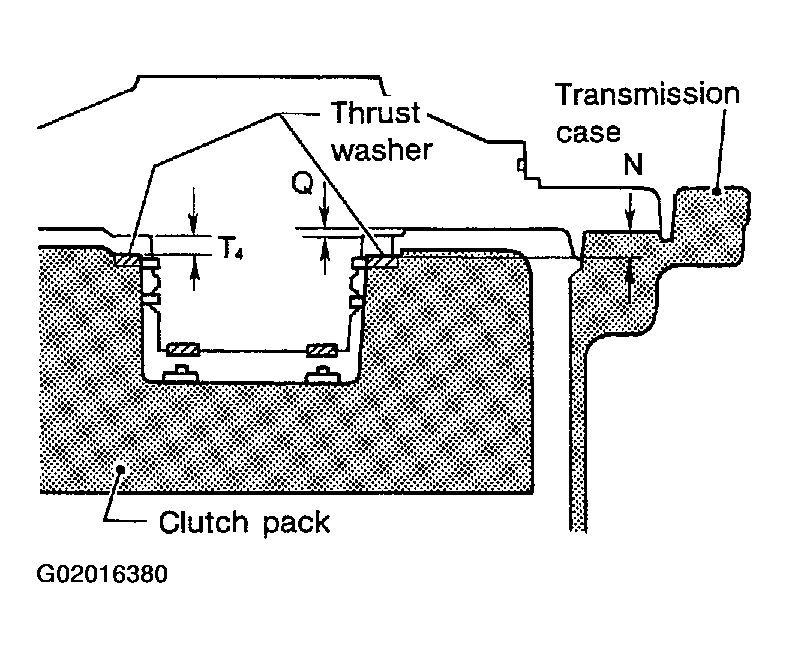

Fig 1: Measuring Clearance Between Oil Pump Cover & Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.

Measure dimensions O and P and then calculate dimension N.

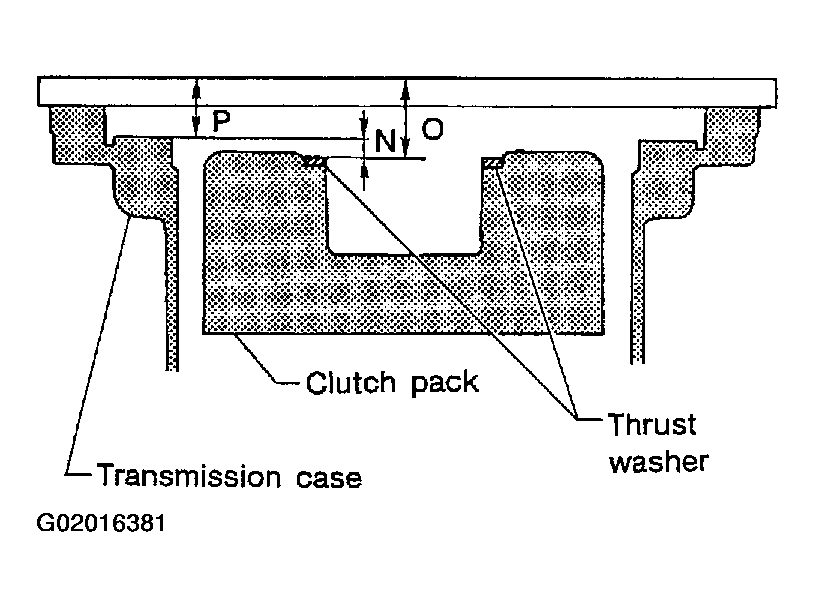

Fig 2: Measuring Dimensions O & P
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Place thrust washer on reverse clutch drum.

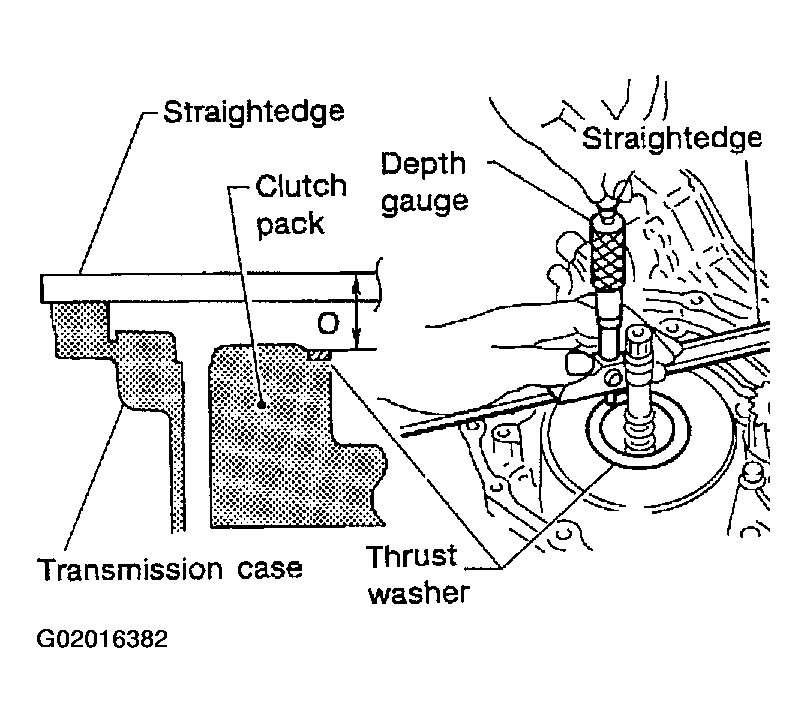

  Fig 3: Placing Thrust Washer On Reverse Clutch Drum & Measuring Dimension O
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension O.
3. Measure dimension P.

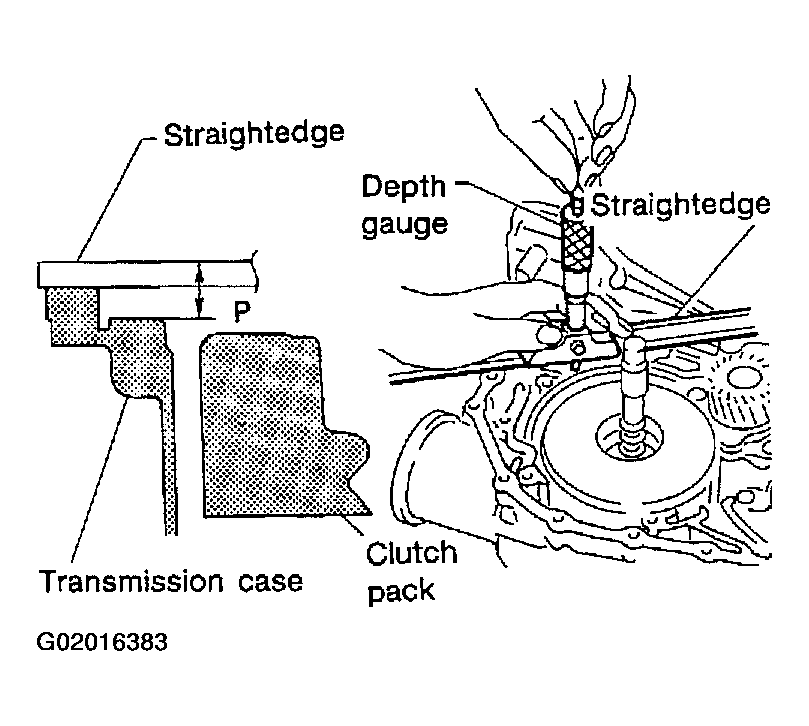

  Fig 4: Placing Thrust Washer On Reverse Clutch Drum & Measuring Dimension P
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Calculate dimension N.
  N: Distance between oil pump fitting surface of transmission case and thrust washer on reverse clutch drum

  N = O - P
Measure dimensions R and S and then calculate dimension Q.

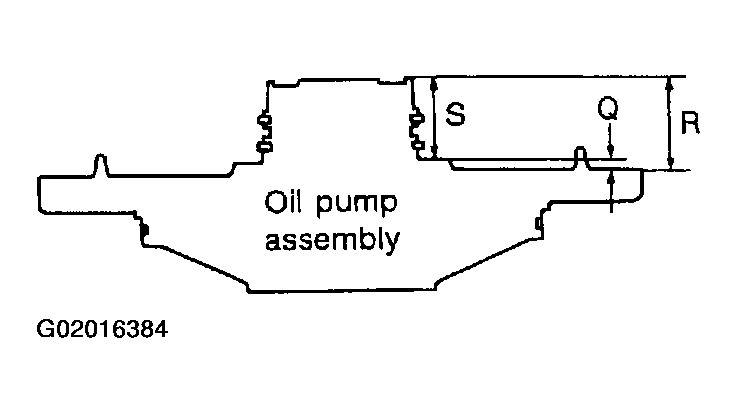

Fig 5: Measuring Dimensions R & S
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimension R.

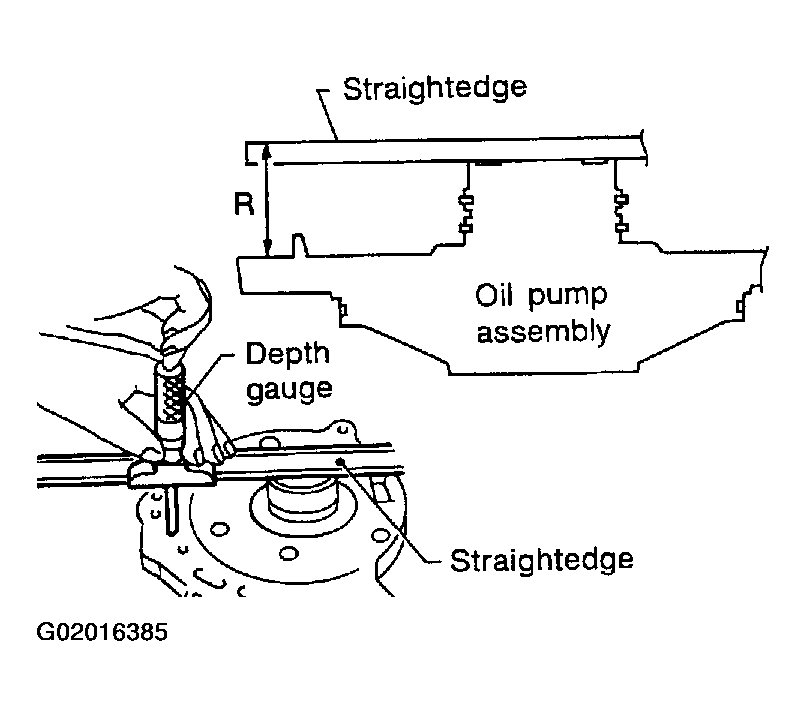

  Fig 6: Measuring Dimension R
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension S.

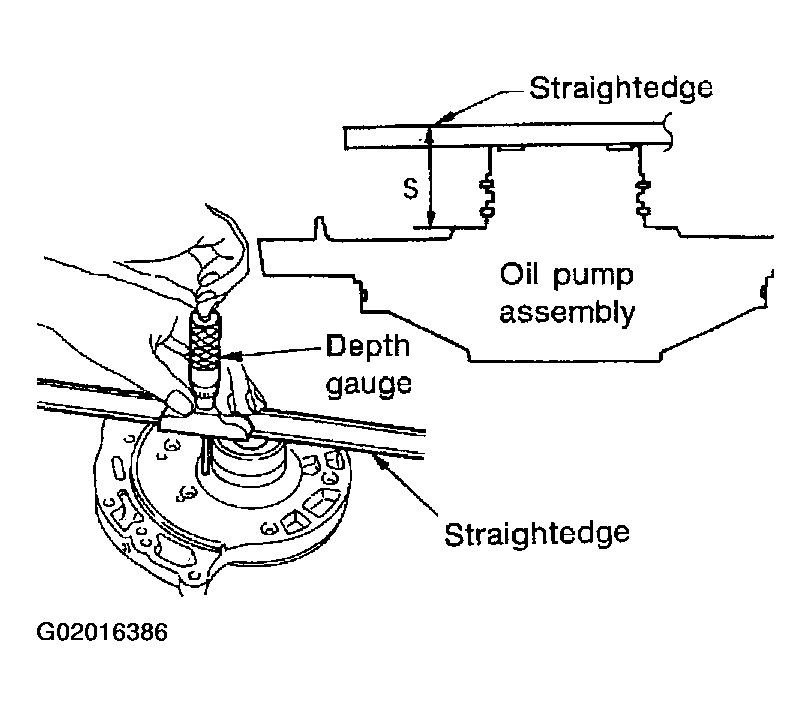

  Fig 7: Measuring Dimension S
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Calculate dimension Q.
  Q: Distance between transmission case fitting surface and thrust washer mating surface

  Q = R - S
Adjust reverse clutch end play T4.
T4 = N - Q

Reverse clutch end: 0.65 - 1.00 mm (0.0256 - 0.0394 in) play
- Select proper thickness of thrust washer so that reverse clutch end play is within specifications.
  Thrust washer: Refer to THRUST WASHERS FOR ADJUSTING REVERSE CLUTCH END PLAY
