Removal and Installation: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air cleaner and air duct.
  2. Remove battery.
  3. Remove the air breather hose. Refer to REMOVAL AND INSTALLATION .
    4. CAUTION: Do not depress clutch pedal during removal procedure.
  4. Remove clutch operating cylinder.
  5. Remove engine under cover.
  6. Remove the control cable from the transaxle. Refer to REMOVAL AND INSTALLATION OF CONTROL DEVICE AND CABLE .
  7. Drain gear oil from transaxle. Refer to REPLACEMENT .
  8. Remove connectors and harnesses for:
    • PNP switch.
    • Speed sensor.
    • Back-up lamp switch.
    • Ground.
  9. Remove the exhaust front tube using power tool. Refer to REMOVAL AND INSTALLATION .
  10. Remove the drive shaft using power tool. Refer to REMOVAL, OVERHAUL & INSTALLATION .
  11. Remove starter motor, using power tool. Refer to REMOVAL AND INSTALLATION - QG18DE .
    12. CAUTION: When setting jack, be careful not to bring it into contact with the switch.
  12. Place a jack under the transaxle.
  13. Remove the center member, the engine insulator and the engine mount bracket using power tool.
  14. Support engine by placing a jack under oil pan.

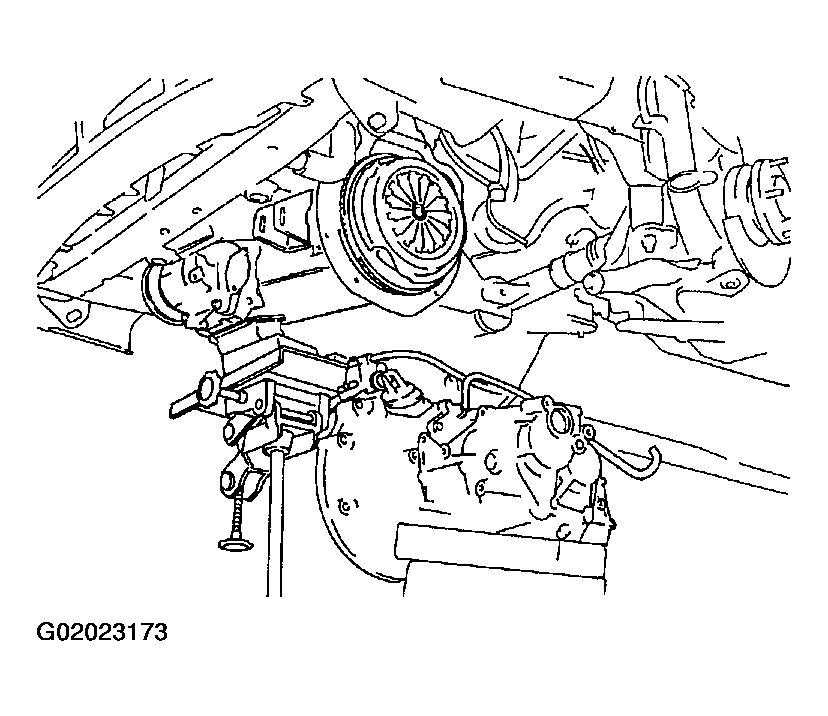

    Fig 1: Supporting Engine
    G02023173Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove the bolts that mount the engine to the transaxle using power tool.
  16. Remove the transaxle from the vehicle.
