Input Shaft End Play

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

When adjusting input shaft end play, select adjusting shim for input shaft bearing. To select adjusting shim, measure clearance between transaxle case and input shaft rear bearing.

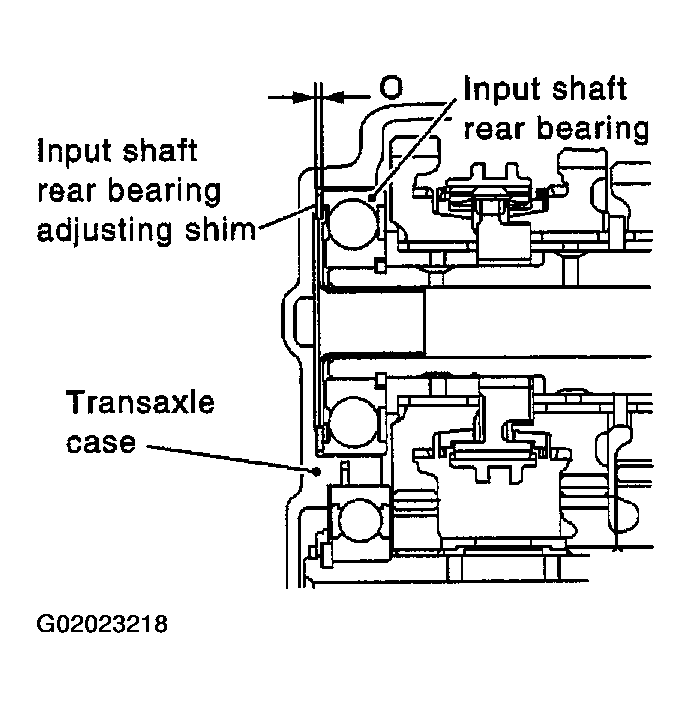

Fig 1: Locating Input Shaft Rear Bearing Adjusting Shim
Courtesy of NISSAN MOTOR CO., U.S.A.
Calculate dimension "O" (thickness of adjusting shim) using the following procedure to meet specification of end play for input shaft rear bearing.

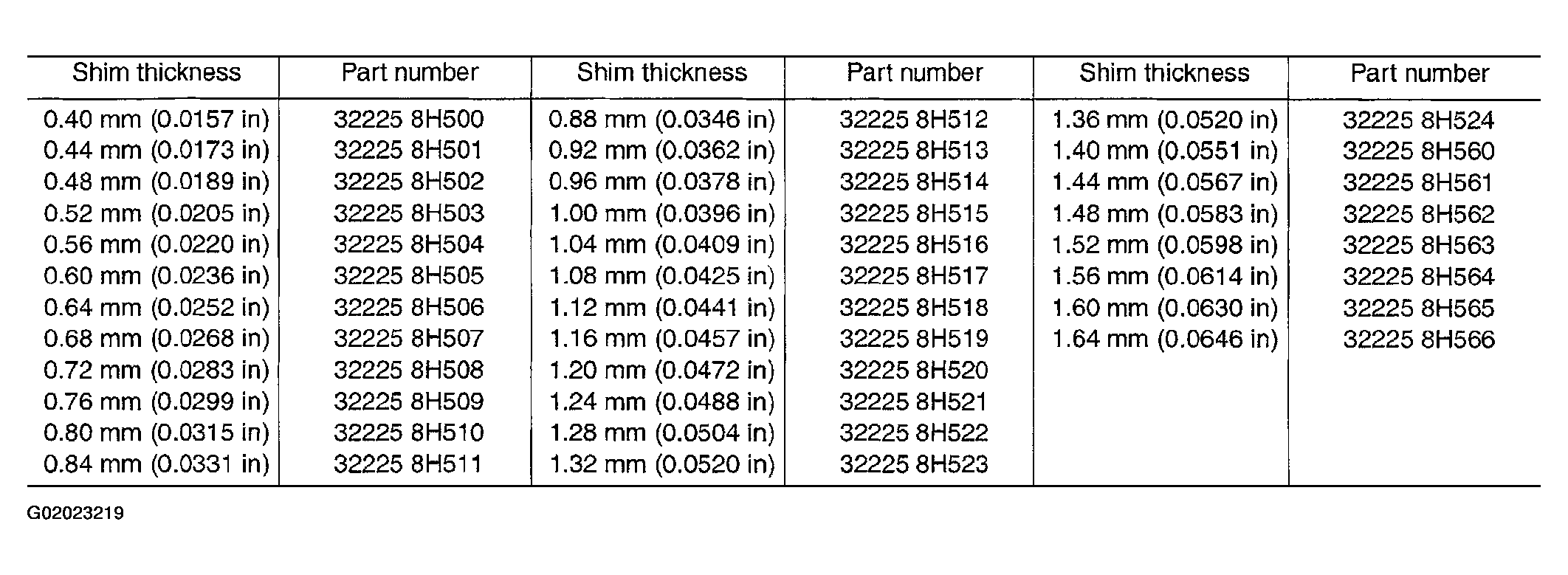

Fig 2: Identifying Adjusting Shims & Thicknesses For Adjusting Dimension O
Courtesy of NISSAN MOTOR CO., U.S.A.
1. End play : 0 - 0.06 mm (0 - 0.0024 in)
  1. Dimension "O" = (O ₁ - O ₂ ) + End play
    1. O : Thickness of adjusting shim
    2. O ₁ : Distance between transaxle case end face and mounting face of adjusting shim
    3. O ₂ ) : Distance between clutch housing case end face and end face of input shaft rear bearing

Adjusting Shim

CAUTION: Only 1 adjusting shim can be selected.

Using depth micrometer and straight edge, measure dimension "O ₁ " between transaxle case end face and mounting face of adjusting shim.

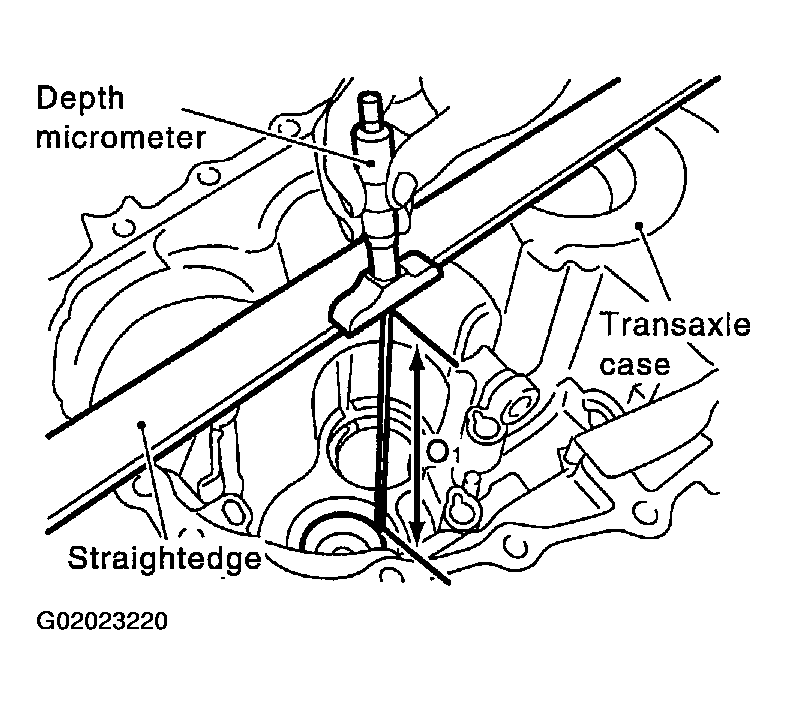

Fig 3: Measuring Dimension O1
Courtesy of NISSAN MOTOR CO., U.S.A.
Using depth micrometer and straight edge as shown in Fig 4 , measure dimension "O ₂ " between clutch housing case end face and end face of input shaft rear bearing.

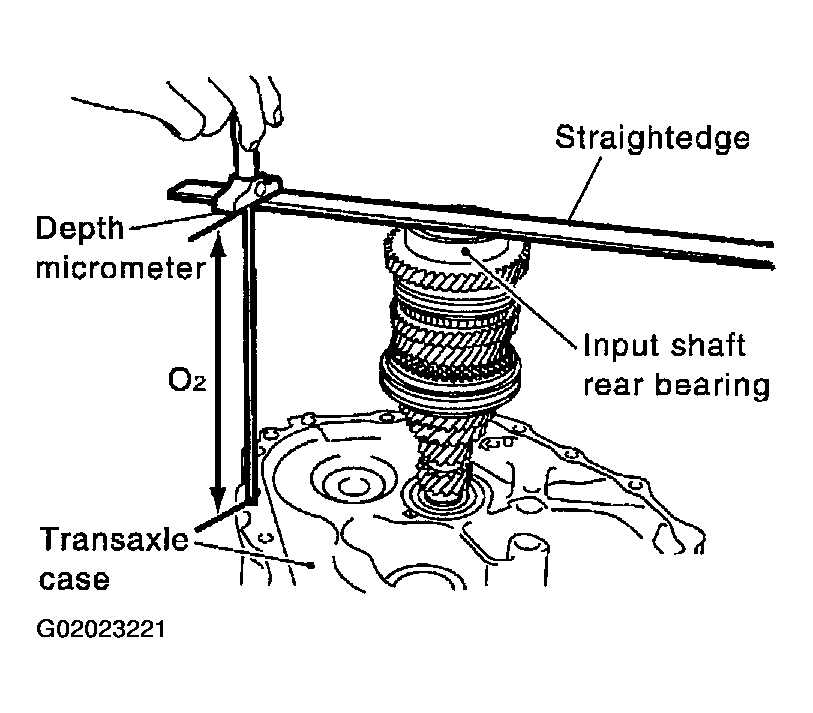

Fig 4: Measuring Dimension O2
Courtesy of NISSAN MOTOR CO., U.S.A.
Install selected input shaft rear bearing adjusting shim onto input shaft.
