Removal and Installation: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shaft from the transaxle body. Refer to REMOVAL, OVERHAUL & INSTALLATION .
    2. CAUTION: Be careful not to damage the case surface when removing the oil seal.

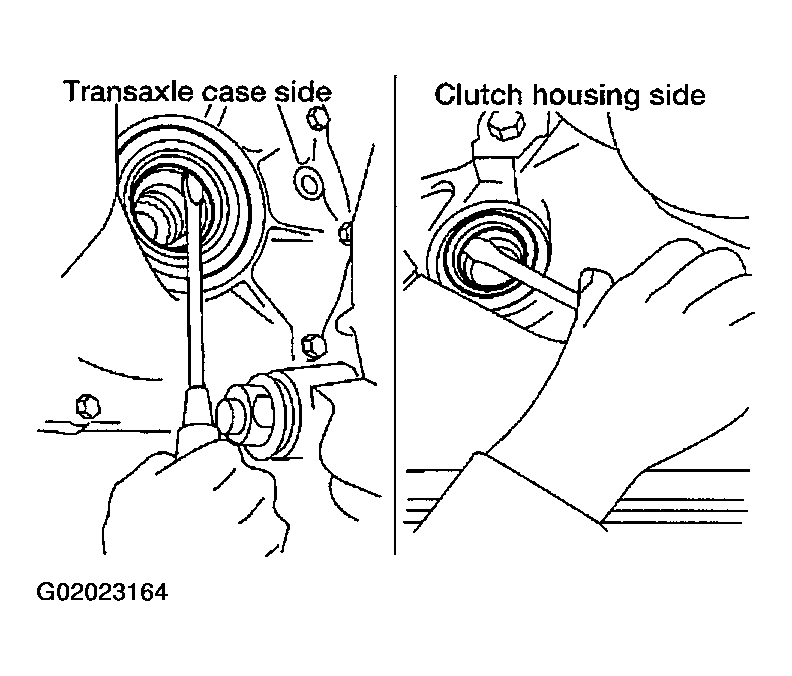

    Fig 1: Removing Oil Seal With Slotted Screwdriver
    G02023164Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil seal with a slotted screwdriver.
