Removal and Installation: Installation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:
    • When installing oil seals, apply multi-purpose grease to oil seal lips.
    • Oil seals are not reusable. Never reuse them.

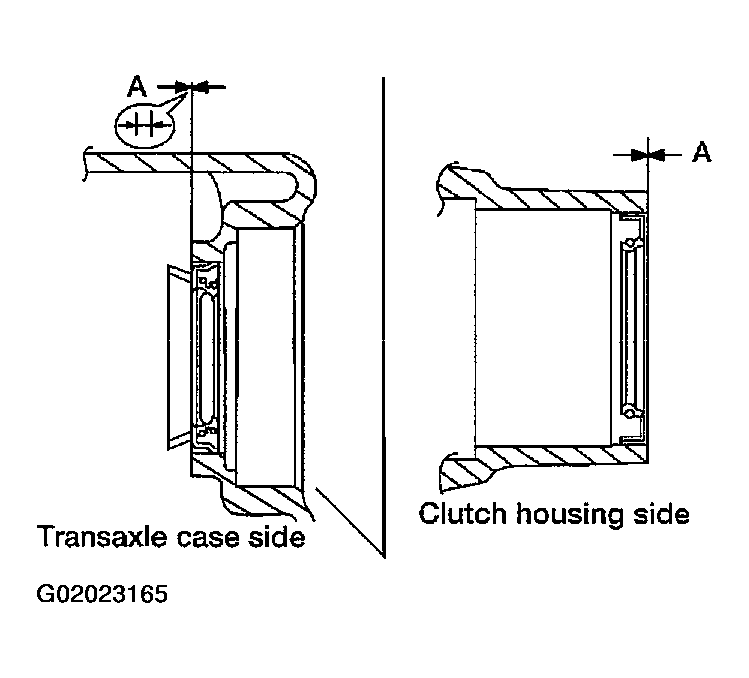

    Fig 1: Identifying Differential Oil Seal Dimensions A
    G02023165Courtesy of NISSAN MOTOR CO., U.S.A.

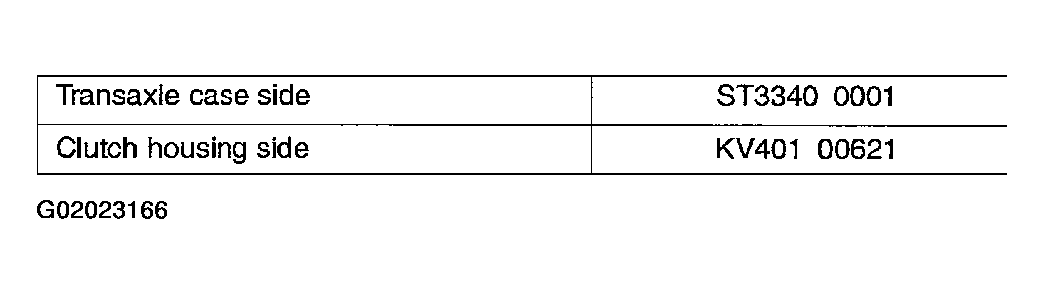

    Fig 2: Drift Specification Chart
    G02023166Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Using a drift (special service tool), drive the oil seal straight until it protrudes from the case end equal to dimension A shown in the figure.
    1. Dimension A:Within 0.5 mm (0.02 in) or flush with the case.

    Drift to be used:

  2. Installation is in the reverse order of removal. Check oil level after installation.
