Section 776 (Manual Transaxle RS6F51H)
>>
Service Data And Specifications (SDS)
>>
Clearance Between Baulk Ring and Gear
>>
3RD, 4TH, 5TH, 6TH & Reverse Baulk Ring
3RD, 4TH, 5TH, 6TH & Reverse Baulk Ring
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

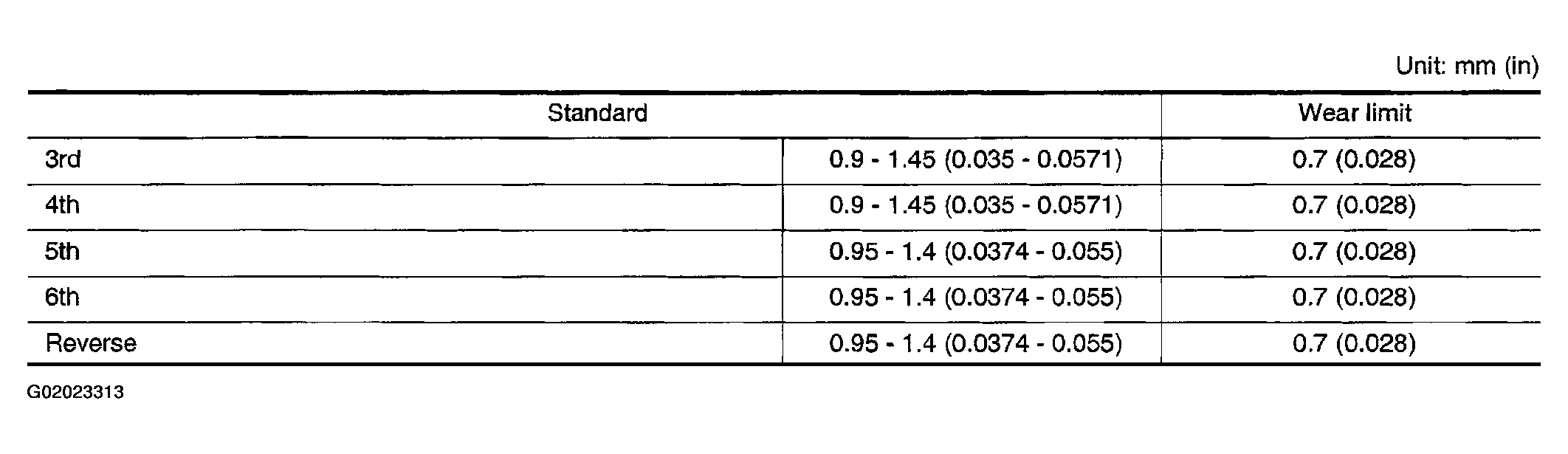

Fig 1: 3-6th & Reverse Baulk Ring Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
