Section 776 (Manual Transaxle RS6F51H)
>>
Service Data And Specifications (SDS)
>>
Available Adjusting Shims
>>
6TH Main Gear Adjusting Shim
6TH Main Gear Adjusting Shim
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

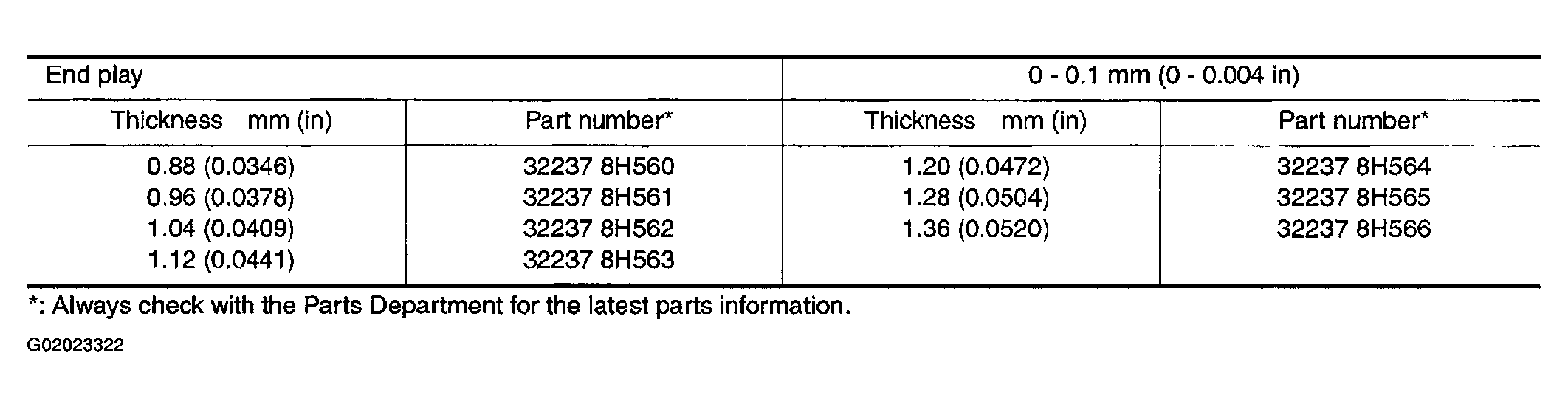

Fig 1: 6th Main Gear Adjusting Shim Thicknesses
Courtesy of NISSAN MOTOR CO., U.S.A.
