Baulk ring clearance

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Press baulk ring against cone, and measure clearance between baulk ring and cone. If measurement is below limit, replace it with a new one.

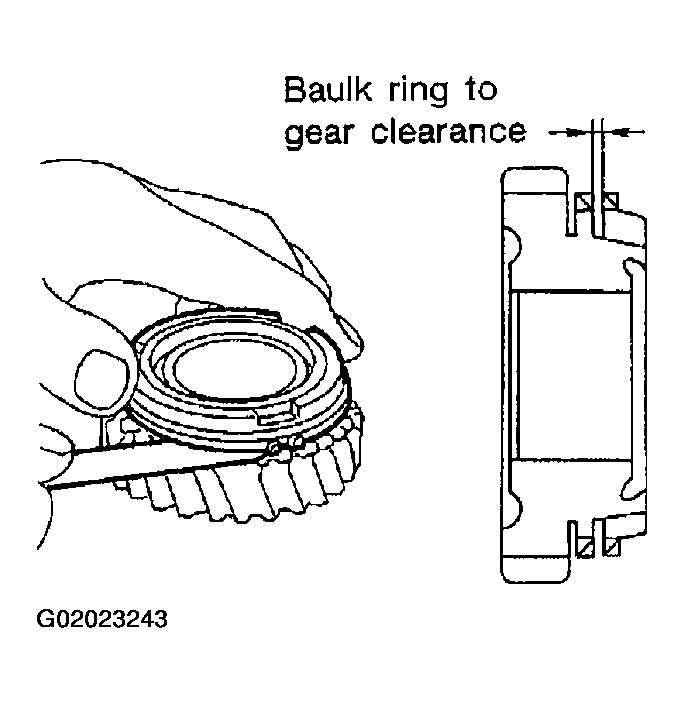

Fig 1: Measuring Clearance Between Baulk Ring & Cone
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Clearance
  1. Standard
    1. 3rd and 4th :0.9 - 1.45 mm (0.035 - 0.0571 in)
    2. 5th and 6th :0.95 - 1.4 mm (0.0374 - 0.055 in)
    3. Limit value :0.7 mm (0.028 in)
