Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove mounting bolts. Then, separate the final gear from differential case.
  2. Remove speedometer drive gear.
  3. Using a drift and puller, remove differential side bearing (clutch housing side).

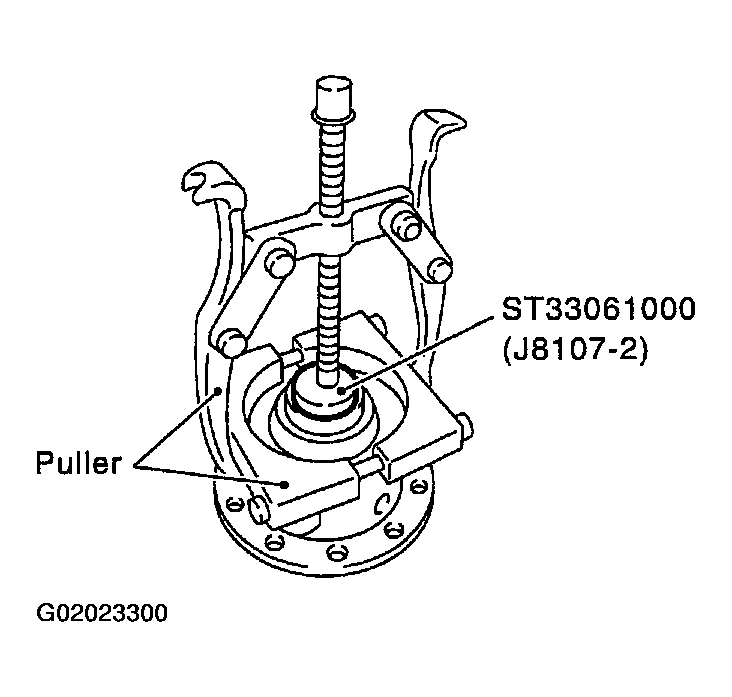

    Fig 1: Pressing Differential Side Bearing Off (Clutch Housing Side)
    G02023300Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a drift and puller, remove differential side bearing (transaxle case side).

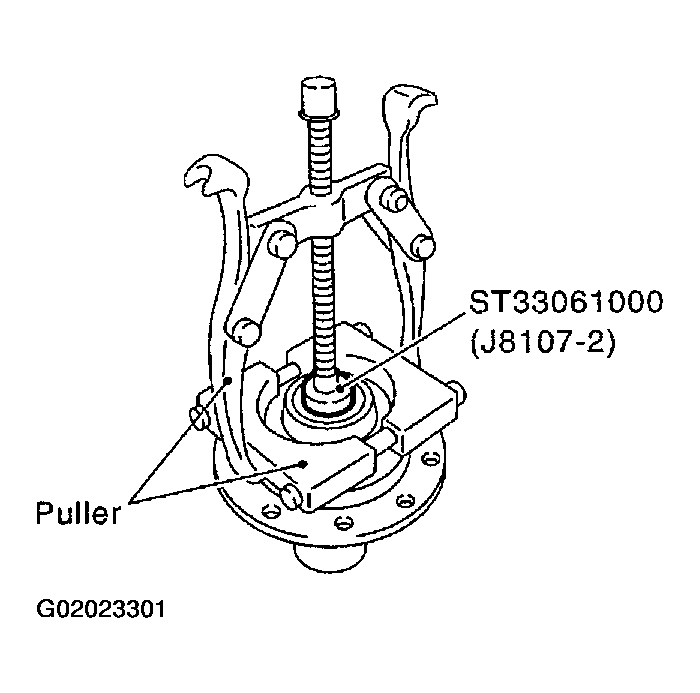

    Fig 2: Pressing Differential Side Bearing Off (Transaxle Case Side)
    G02023301Courtesy of NISSAN MOTOR CO., U.S.A.
