Removal and Installation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure there are no pinched or restricted areas on the air breather hose caused by bending or winding when installing it.
  • Be sure to insert hose into the transaxle tube until overlap area reaches the spool.

Refer to Fig 1 for air breather hose removal and installation information.

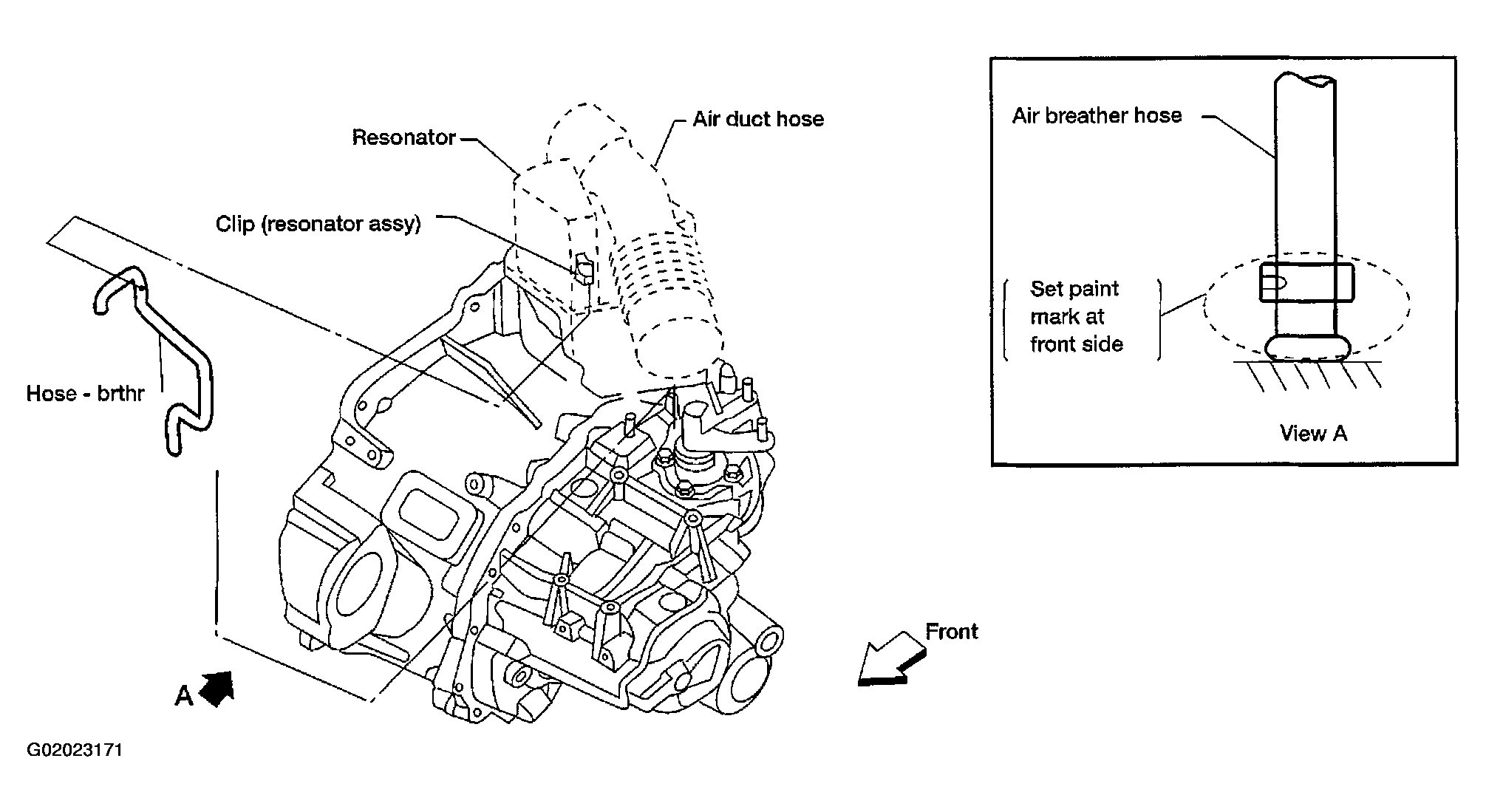

Fig 1: Identifying Air Breather Hose Components
G02023171Courtesy of NISSAN MOTOR CO., U.S.A.
