Removal and Installation: Installation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Using a drift (special service tool), drive the oil seal straight until it protrudes from the case end equal to dimension A .

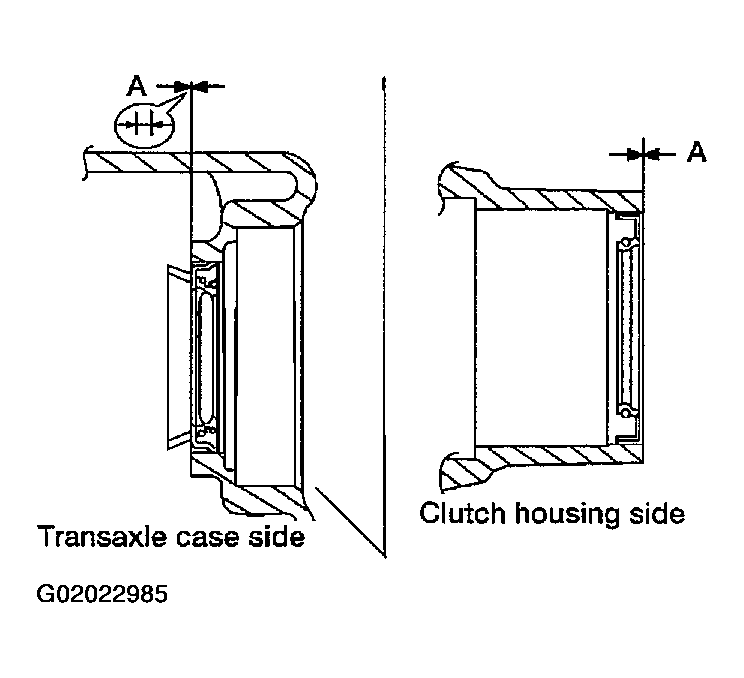

Fig 1: Identifying Differential Oil Seal Installed Position
Courtesy of NISSAN MOTOR CO., U.S.A.

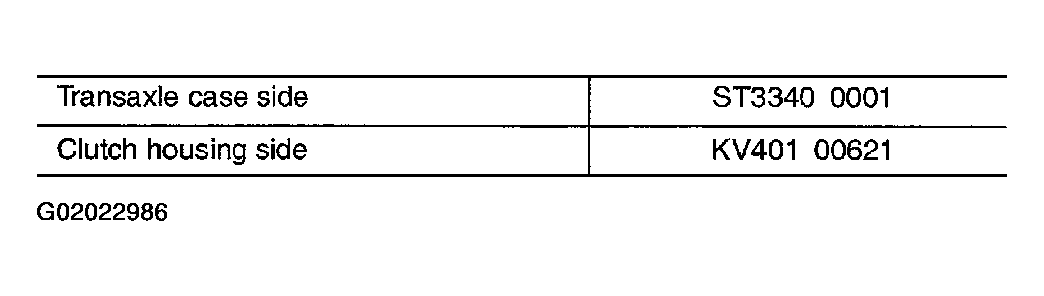

Fig 2: Drift Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Dimension A : Within 0.5 mm (0.02 in) or flush with the case.
Drift to be used:

CAUTION:

When installing oil seals, apply multi-purpose grease to oil seal lips.
Oil seals are not reusable. Never reuse them.

Installation is in the reverse order of removal. Check oil level after installation.
