Section 775 (Manual Transaxle RS5F51A)
>>
Service Data And Specifications (SDS)
>>
Available Adjusting Shims
>>
MAINSHAFT Rear Bearing Adjusting Shim
MAINSHAFT Rear Bearing Adjusting Shim
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

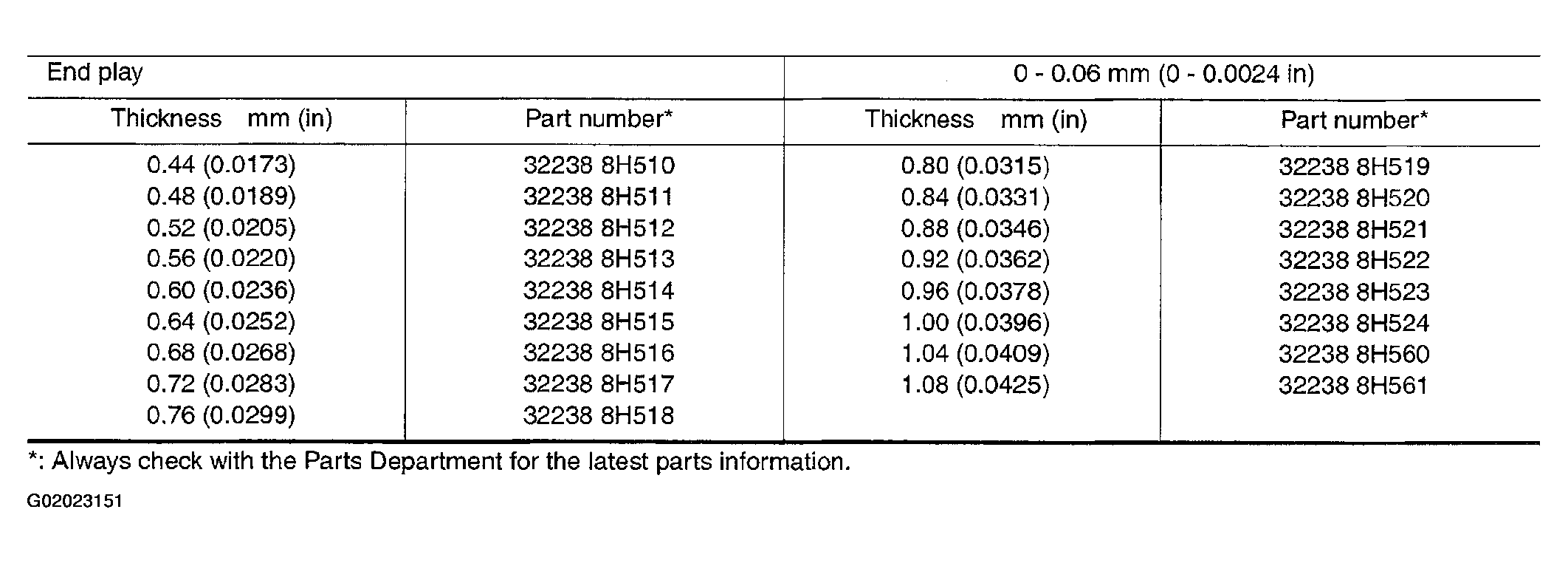

Fig 1: Mainshaft Rear Bearing Adjusting Shims
Courtesy of NISSAN MOTOR CO., U.S.A.
