Reverse Idler Shaft and Gears

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check items below. If necessary, replace them with new ones.

Damage, peeling, dent, uneven wear, bending, and other non-standard conditions of the shaft.

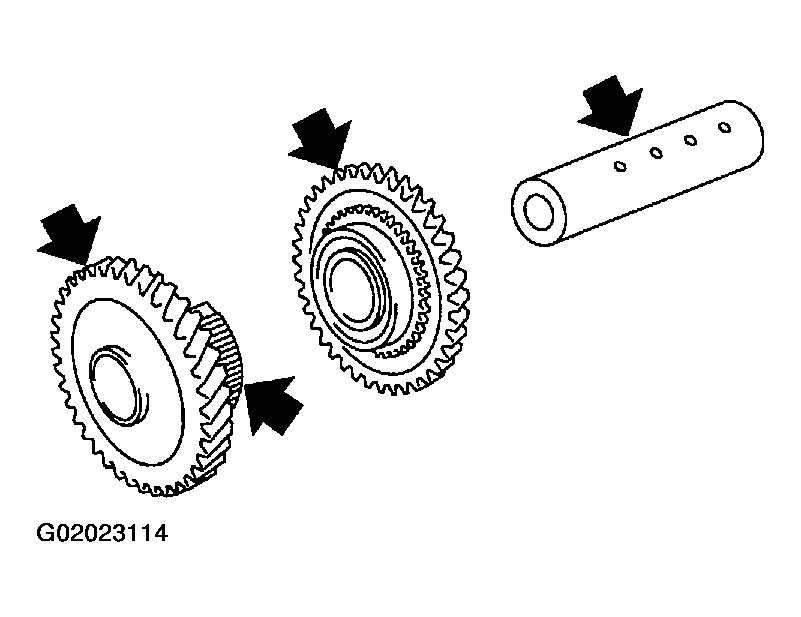

Fig 1: Checking Reverse Idler Shaft & Gear For Damage
Courtesy of NISSAN MOTOR CO., U.S.A.
Excessive wear, damage, peeling, and other non-standard conditions of the gears.
