Baulk ring clearance

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Press baulk ring against cone, and measure clearance between baulk ring and cone. If measurement is below limit, replace it with a new one.

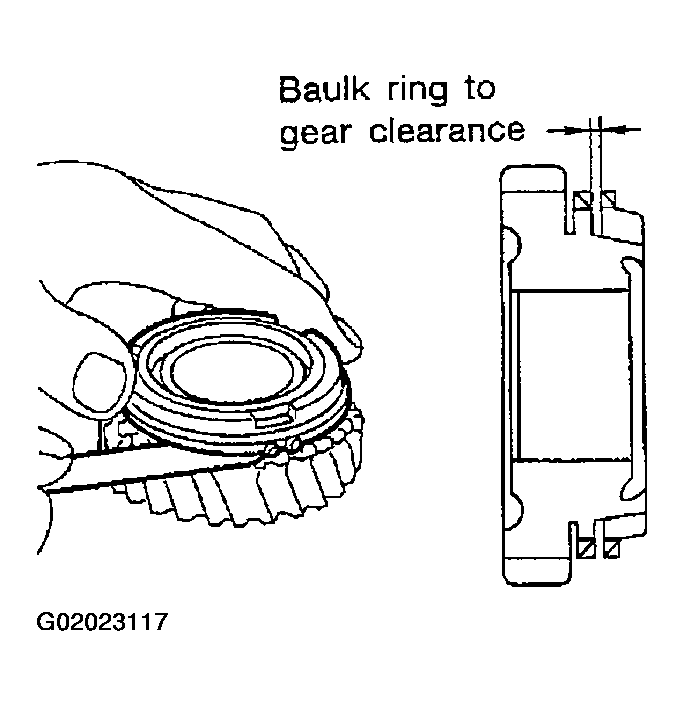

Fig 1: Measuring Baulk Ring To Gear Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Clearance
  1. Standard : 0.95 - 1.4 mm (0.0374 - 0.055 in)
  2. Limit value : 0.7 mm (0.028 in)
