NVH Troubleshooting Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.

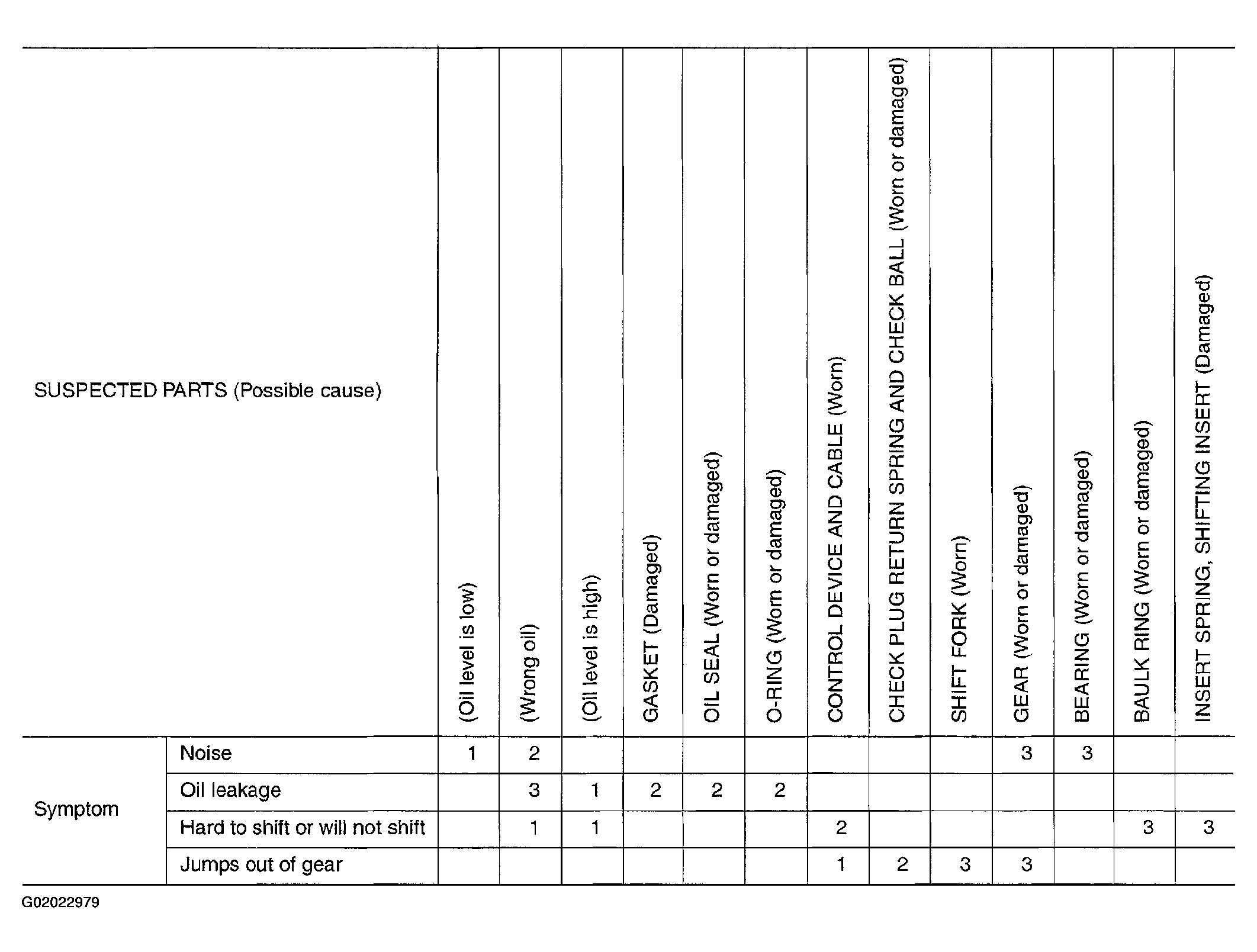

Fig 1: Noise, Vibration, & Harshness Troubleshooting Chart
G02022979Courtesy of NISSAN MOTOR CO., U.S.A.
