Baulk Ring Clearance

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Outer baulk ring, synchronizer cone, and inner baulk ring as a set control clearance A and B. If measurement exceeds service limit value, replace all of them as a set.

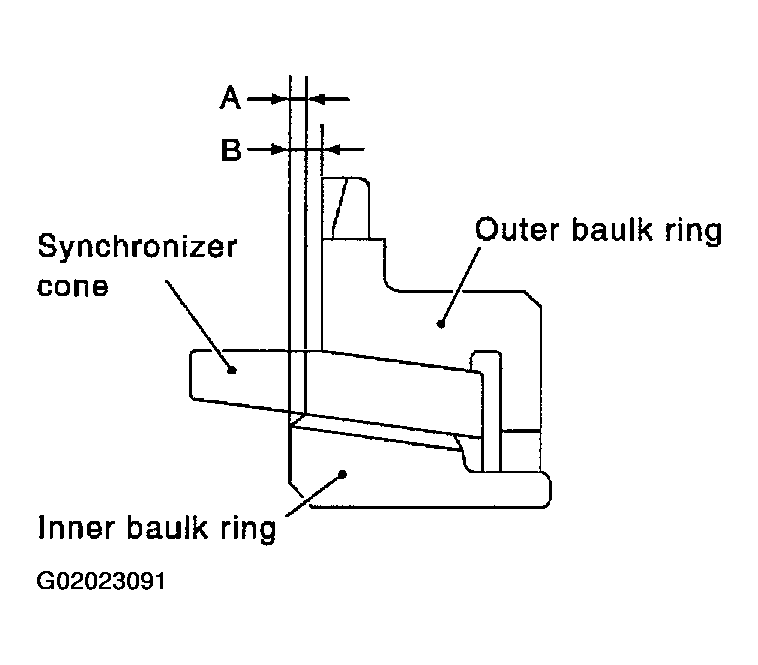

Fig 1: Identifying Mainshaft Clearance Dimensions A & B

Courtesy of NISSAN MOTOR CO., U.S.A.

Double cone synchronizer (1st and 2nd)
Check clearance of outer baulk ring, synchronizer cone, and inner baulk ring of 1st and 2nd double cone synchronizers, following procedure below.

Using a dial gauge, measure clearance A at 2 or more points diagonally opposite, and calculate mean value.

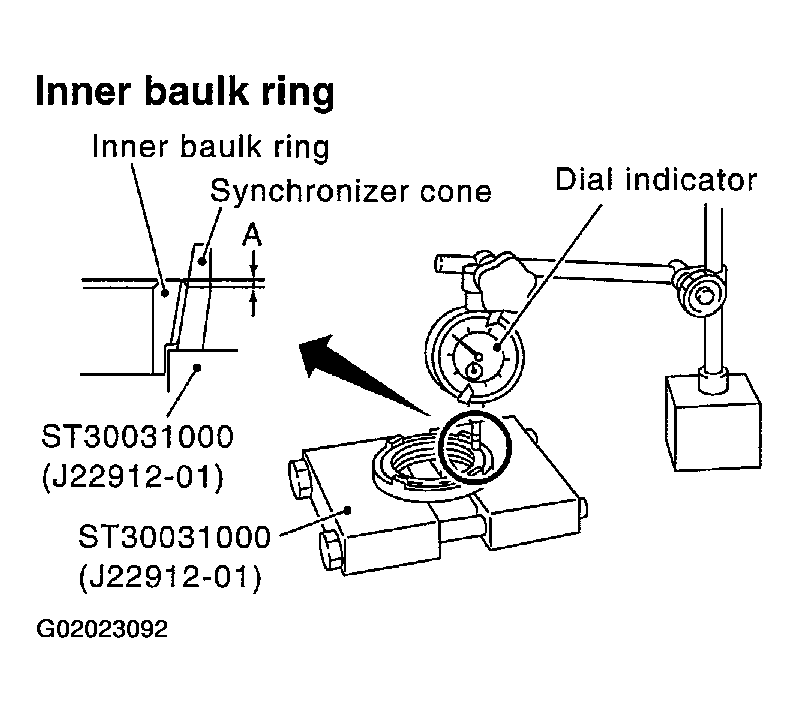

Fig 2: Measuring Clearance A
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Clearance A
  1. Standard : 0.6 - 0.8 mm (0.024 - 0.031 in)
  2. Limit value : 0.2 mm (0.008 in) or less
Using a dial gauge, measure clearance B at 2 or more points diagonally opposite, and calculate mean value.

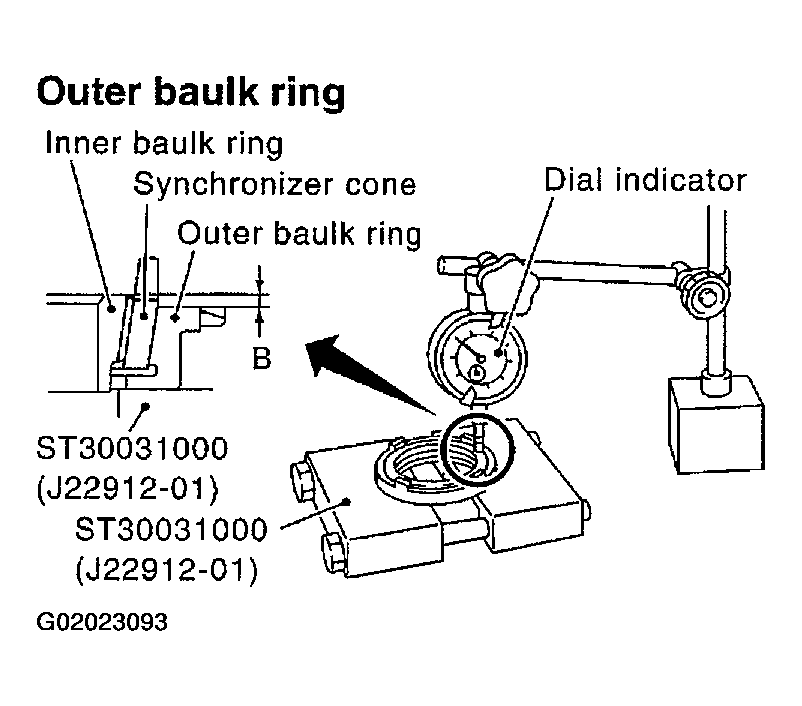

Fig 3: Measuring Clearance B
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Clearance B
  1. Standard : 1.3 - 1.5 mm (0.051 - 0.059 in)
  2. Limit value : 0.2 mm (0.008 in) or less
