Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install reverse main gear.

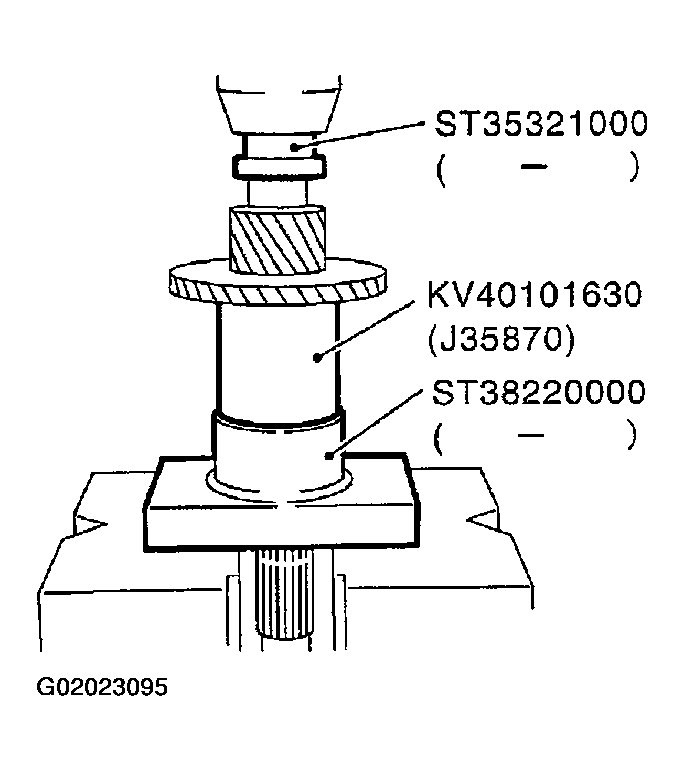

    Fig 1: Installing Reverse Main Gear
    G02023095Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful with orientation of reverse main gear.

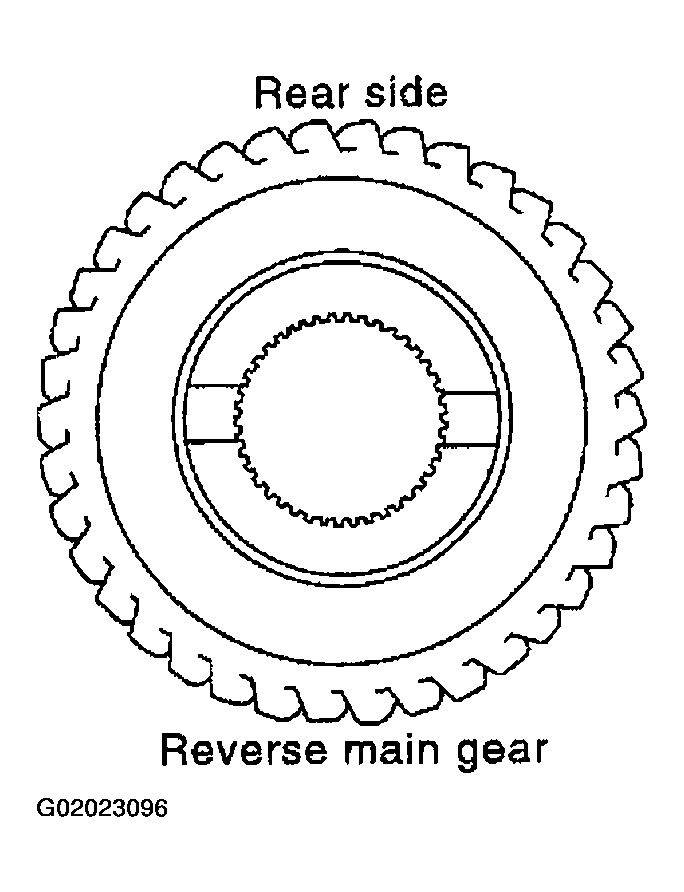

    Fig 2: Checking Orientation Of Reverse Main Gear
    G02023096Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install 1st bushing.
  3. Install needle bearing, and then 1st main gear.

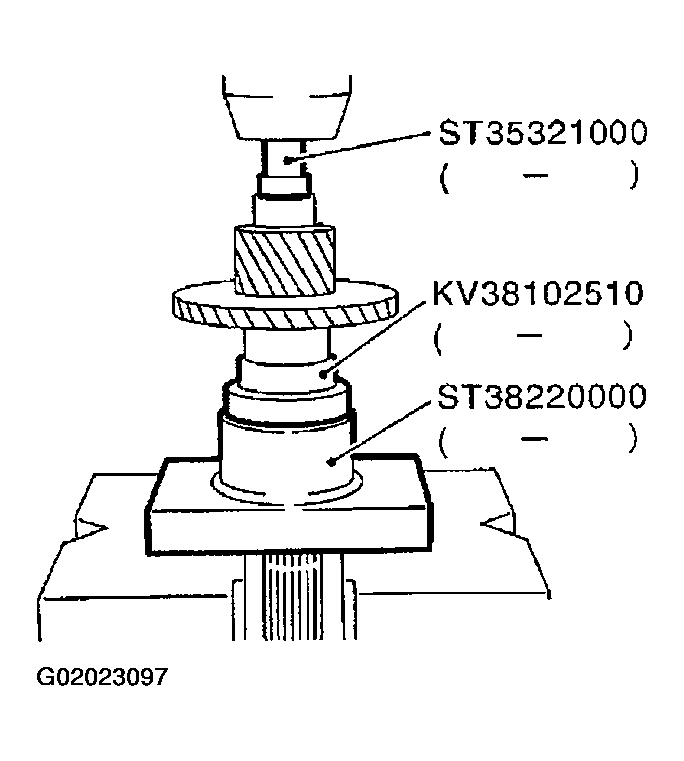

    Fig 3: Installing 1st Bushing & 1st Main Gear
    G02023097Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CAUTION:
    • Be careful with orientation of synchronizer hub.

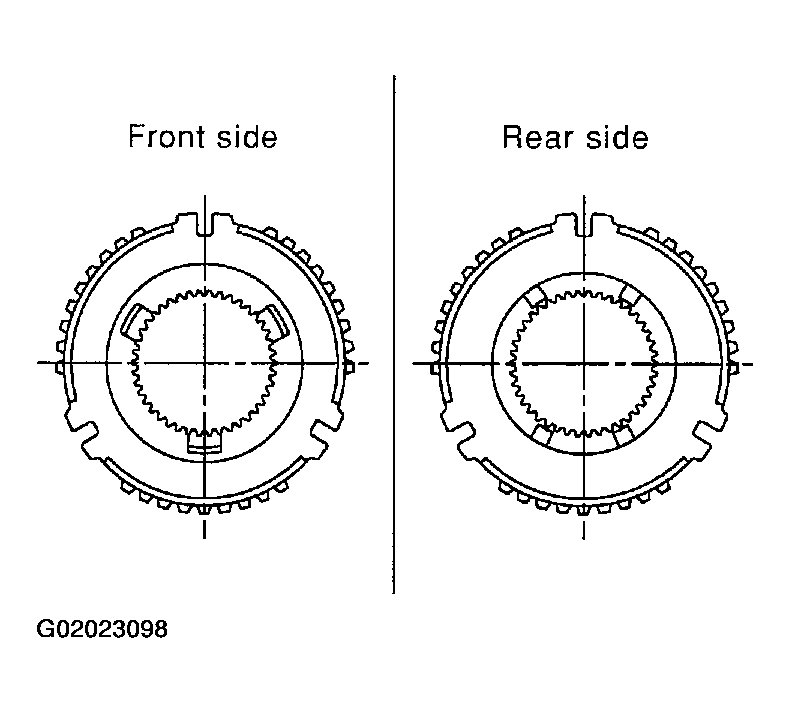

      Fig 4: Checking Orientation Of 1st & 2nd Gear Synchronizer Hub
      G02023098Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be careful with orientation of coupling sleeve.

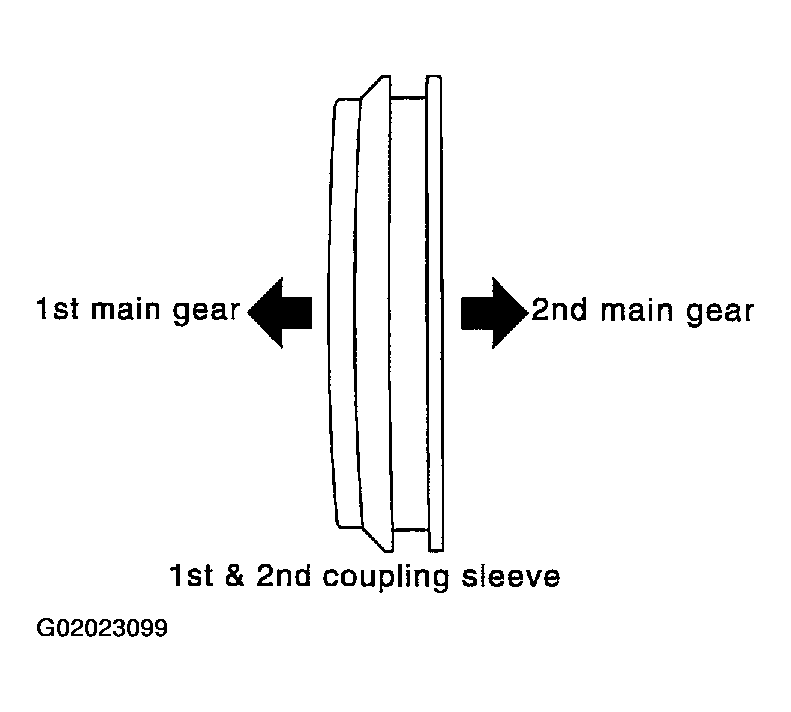

      Fig 5: Checking Orientation Of 1st & 2nd Gear Coupling Sleeve
      G02023099Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be sure not to hook ends of 2 spread springs (front and back: 2 each) on same shifting insert.

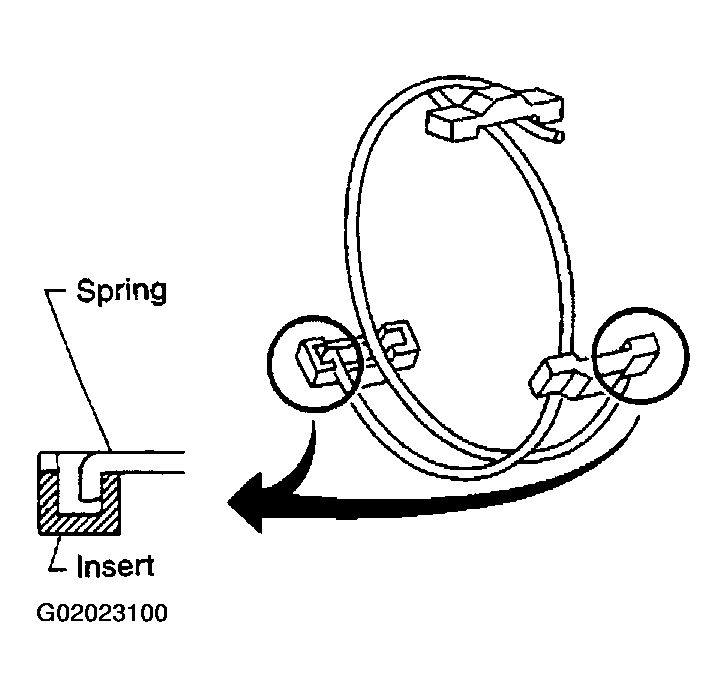

      Fig 6: Installing Spread Springs
      G02023100Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install spread spring, shifting insert and 1st-2nd synchronizer hub onto 1st-2nd coupling sleeve.
  6. Install 1st gear synchronizer assembly onto mainshaft, and synchronizer hub assembly onto mainshaft.

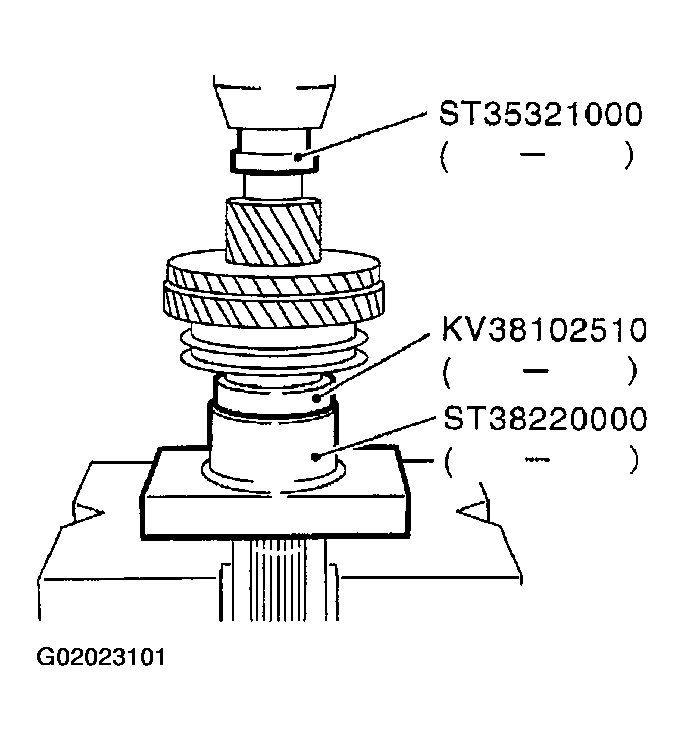

    Fig 7: Installing 1st Gear Components To Mainshaft
    G02023101Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Outer baulk ring, synchronizer cone, and inner baulk ring on 2nd gear-side must have been removed.
    • Be careful with orientation of coupling sleeve.
  7. Install 2nd bushing.

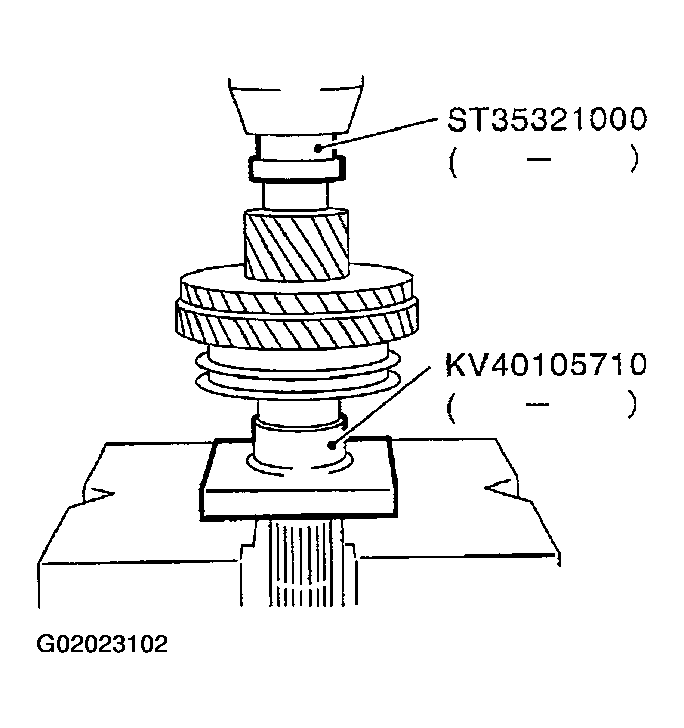

    Fig 8: Installing 2nd Gear Components To Mainshaft
    G02023102Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install outer baulk ring, synchronizer cone, and inner baulk ring on 2nd gear-side.
  9. Install 2nd needle bearing and 2nd gear.
  10. Install 3rd main gear.

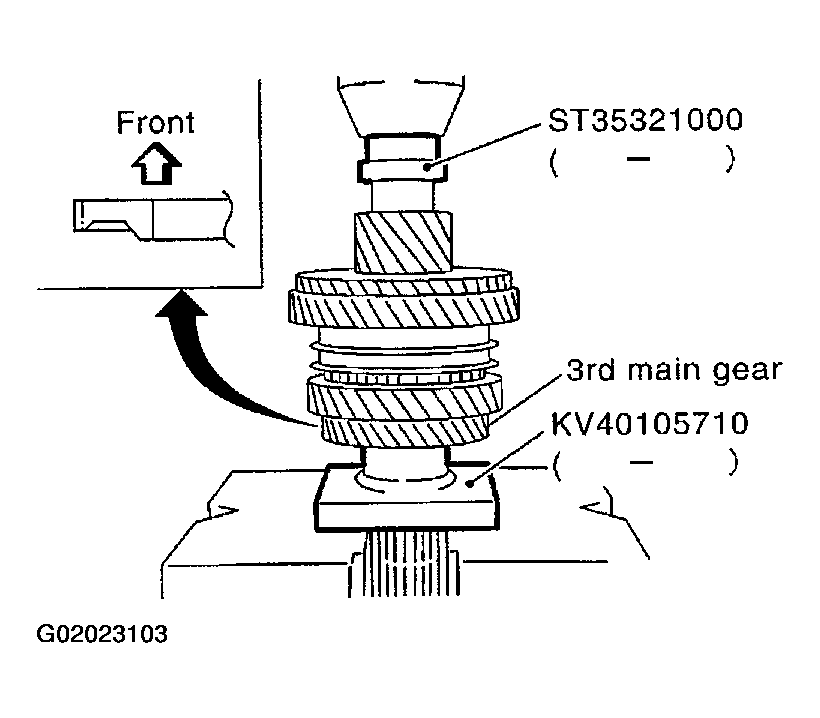

    Fig 9: Installing 3rd Main Gear
    G02023103Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful with orientation of 3rd main gear.
  11. Install 3rd-4th mainshaft spacer.
  12. Select suitable adjusting shim so that dimension "CI" satisfies standard value below, and install it onto mainshaft.
    1. Standard for dimension C1:
    2. 173.85 - 173.95 mm (6.844 - 6.848 in)

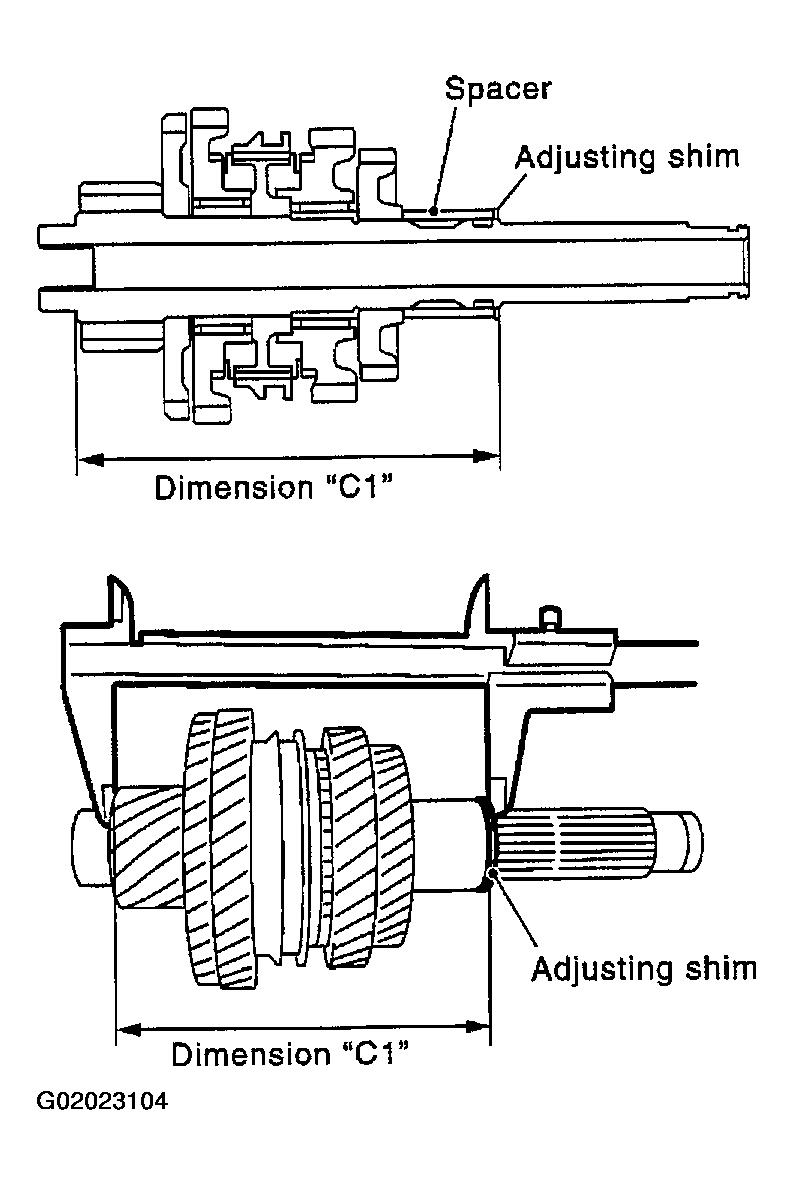

    Fig 10: Identifying Dimension C1
    G02023104Courtesy of NISSAN MOTOR CO., U.S.A.

    Adjusting Shims

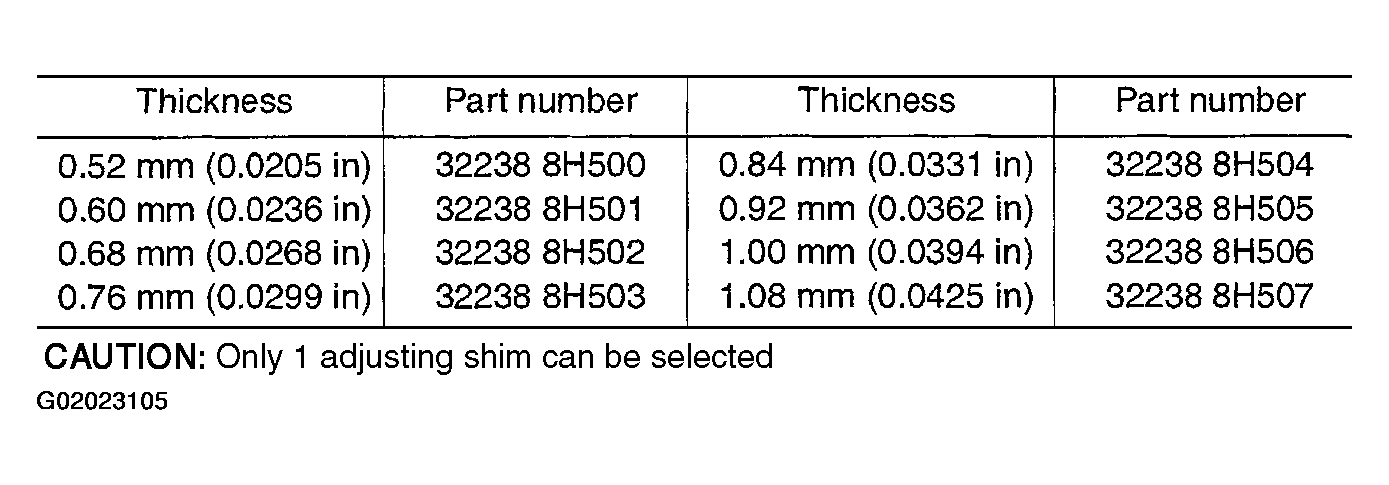

    Fig 11: Dimension C1 Adjustment Shim Chart
    G02023105Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install 4th main gear.

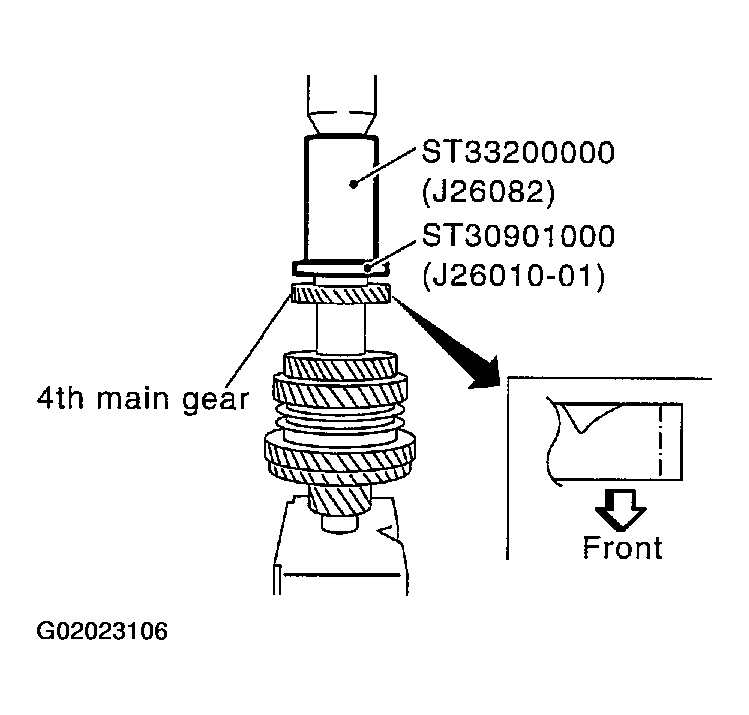

    Fig 12: Installing 4th Main Gear
    G02023106Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful with orientation of 4th main gear.
  14. Install 5th main gear.

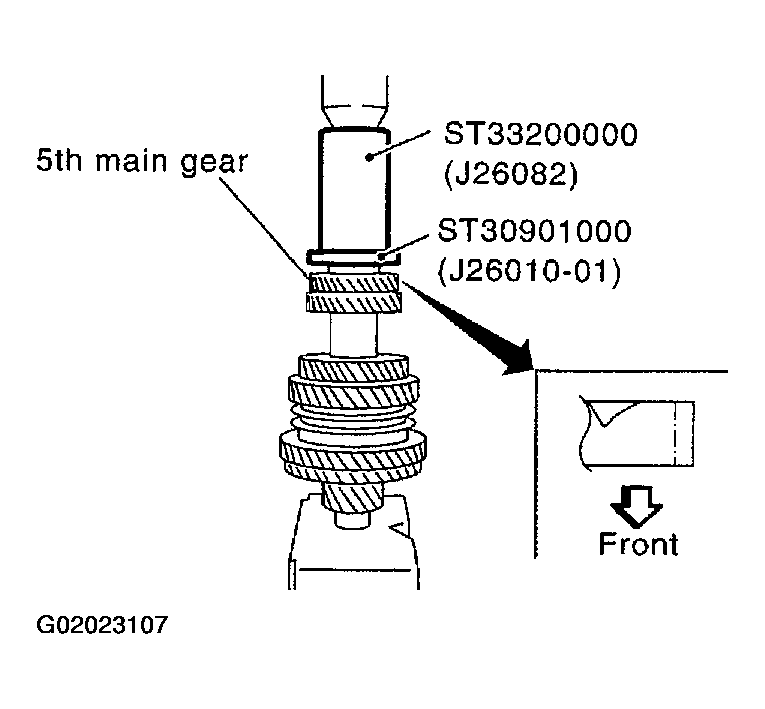

    Fig 13: Installing 5th Main Gear
    G02023107Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful with orientation of 5th main gear.
  15. Install snap ring onto mainshaft, and check that end play of 5th main gear satisfies standard value.
    1. End play standard value: 0 - 0.1 mm (0 - 0.004 in)
    • If measurement is outside the standard range, reselect snap ring.

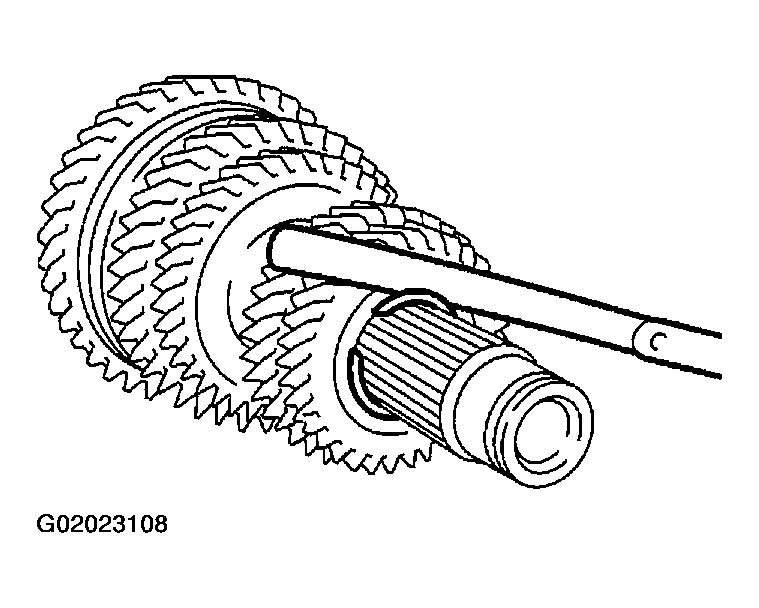

      Fig 14: Checking End Play
      G02023108Courtesy of NISSAN MOTOR CO., U.S.A.

    Snap Rings

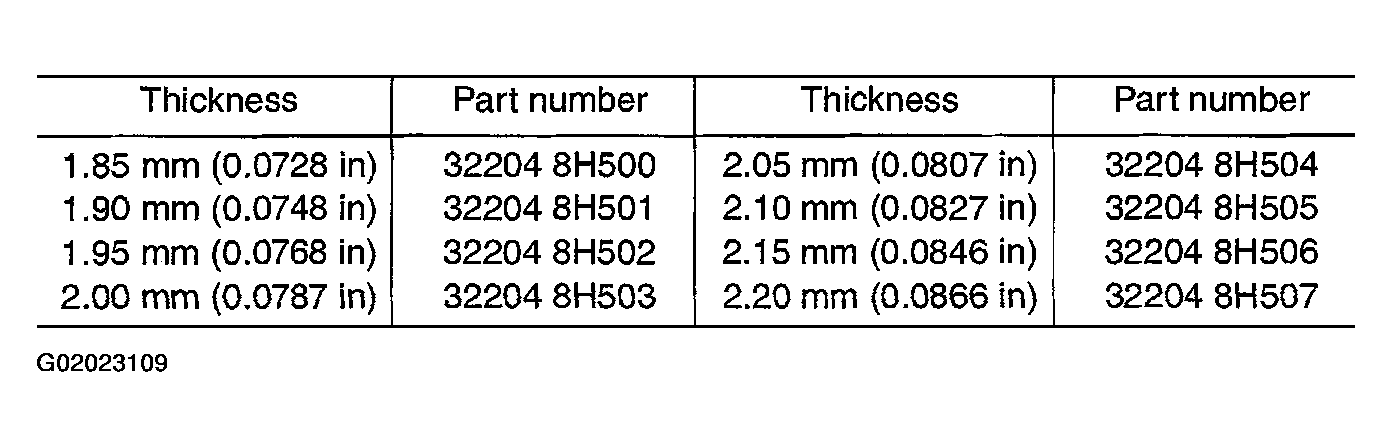

    Fig 15: Snap Ring Thickness Chart
    G02023109Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install mainshaft rear bearing.

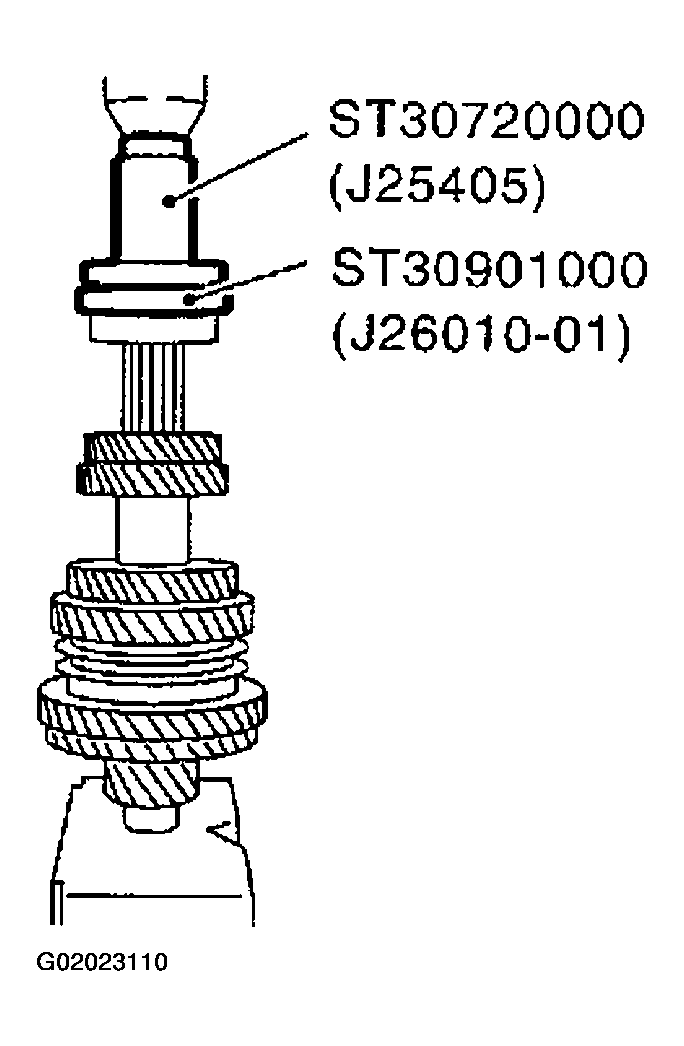

    Fig 16: Installing Mainshaft Rear Bearing
    G02023110Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install C-ring onto mainshaft, and check that end play of mainshaft rear bearing meets specifications.

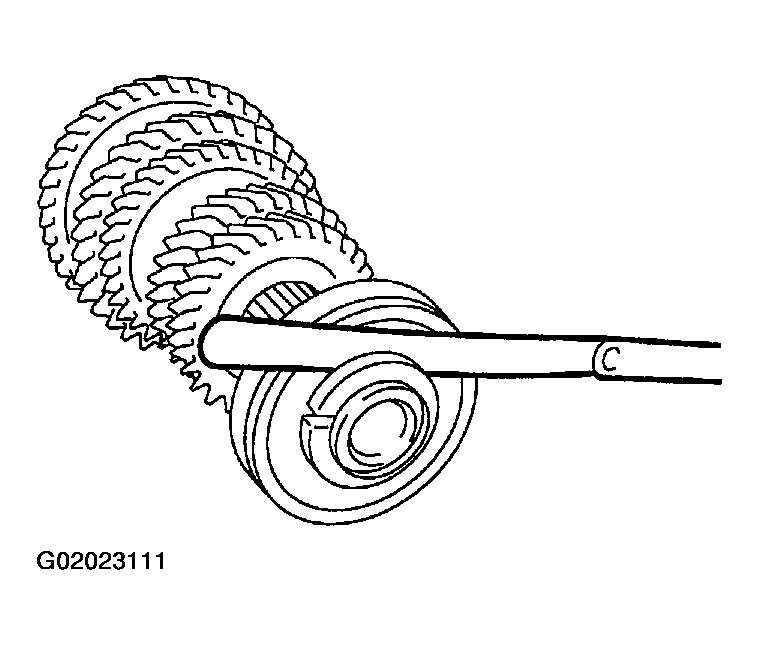

    Fig 17: Measuring Mainshaft Rear Bearing End Play
    G02023111Courtesy of NISSAN MOTOR CO., U.S.A.
    1. End play standard value: 0 - 0.06 mm (0 - 0.0024 in)
    • If measurement is outside the standard range, reselect C-ring.

    C-rings

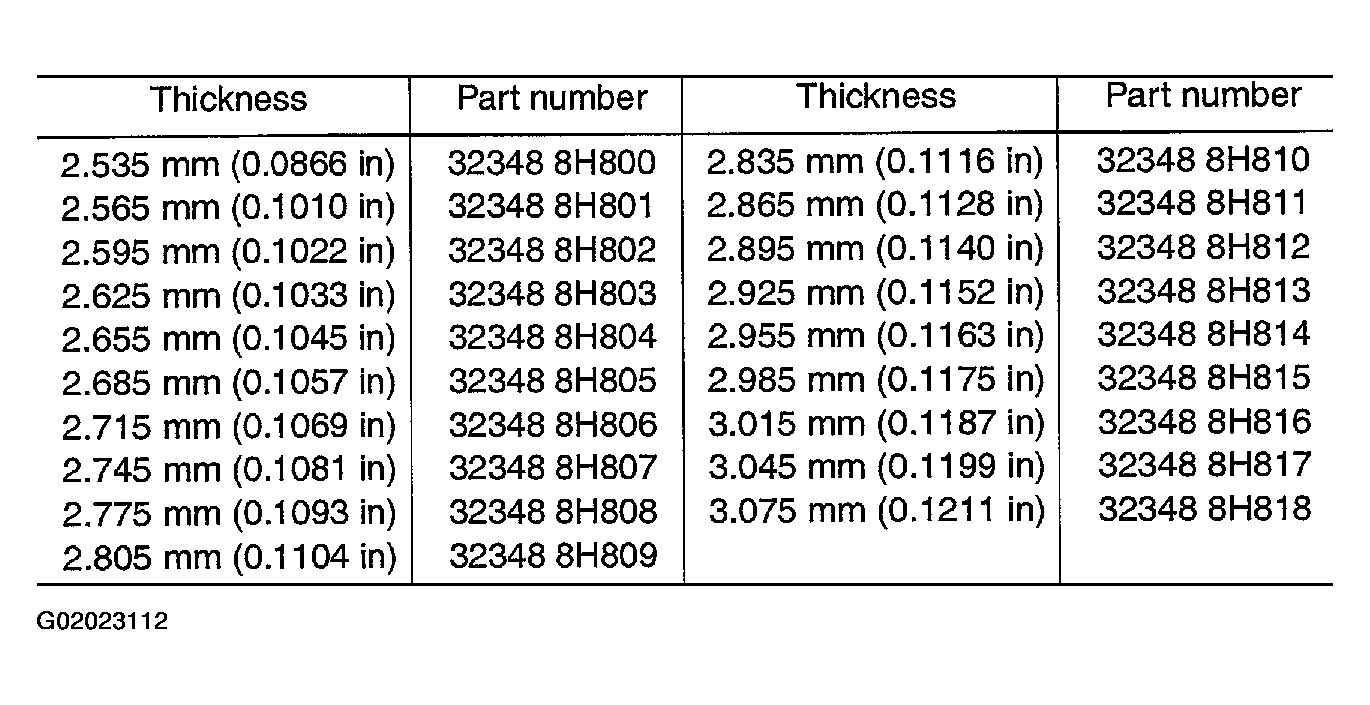

    Fig 18: C-Ring Thickness & Part Number Chart
    G02023112Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Fit C-ring holder, and install snap ring.
  19. Check end play of 1st and 2nd main gears.

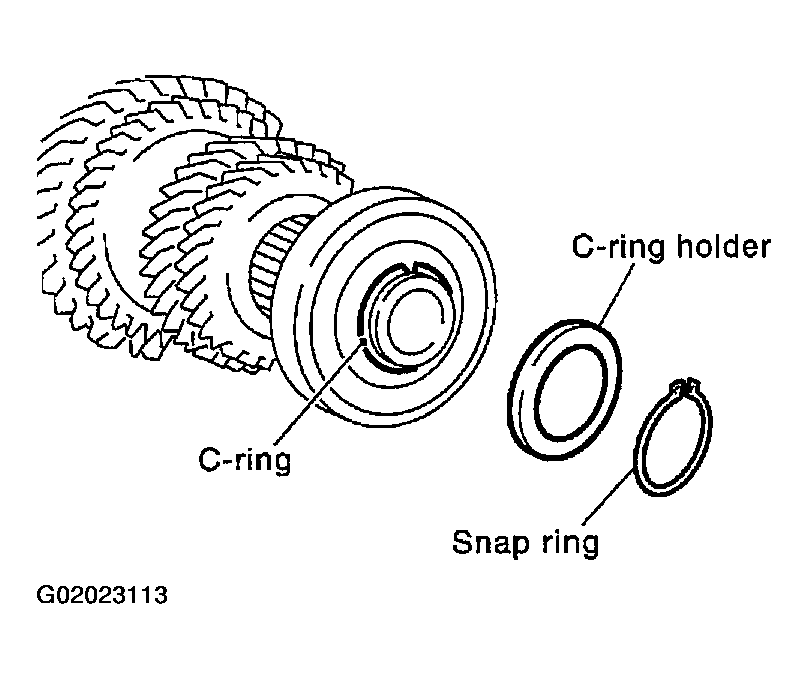

    Fig 19: Identifying C-Ring, C-Ring Holder & Snap Ring Installation Order
    G02023113Courtesy of NISSAN MOTOR CO., U.S.A.
    1. End play standard value
      1. 1st gear : 0.20 - 0.30 mm (0.0079 - 0.0118 in)
      2. 2nd gear : 0.06 - 0.16 mm (0.0024 - 0.0063 in)
