Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If measurement is outside the standard range, disassemble to check contact surfaces of gear, shaft, and hub. Adjust with snap ring at assembly.

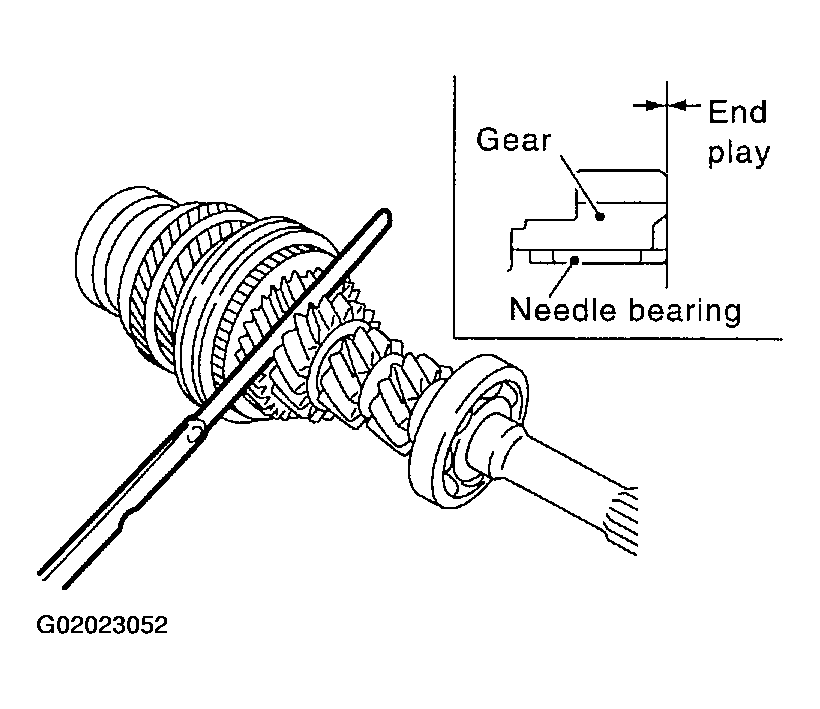

Fig 1: Measuring 3rd, 4th, & 5th Input Gear End Play

Courtesy of NISSAN MOTOR CO., U.S.A.

Before disassembling, measure end play for 3rd, 4th, and 5th input gears.
1. End play standard value
  1. 3rd gear : 0.18 - 0.31 mm (0.0071 - 0.0122 in)
  2. 4th gear : 0.20 - 0.30 mm (0.0079 - 0.0118 in)
  3. 5th gear : 0.06 - 0.16 mm (0.0024 - 0.0063 in)
Remove oil channel.
Remove input shaft rear bearing.

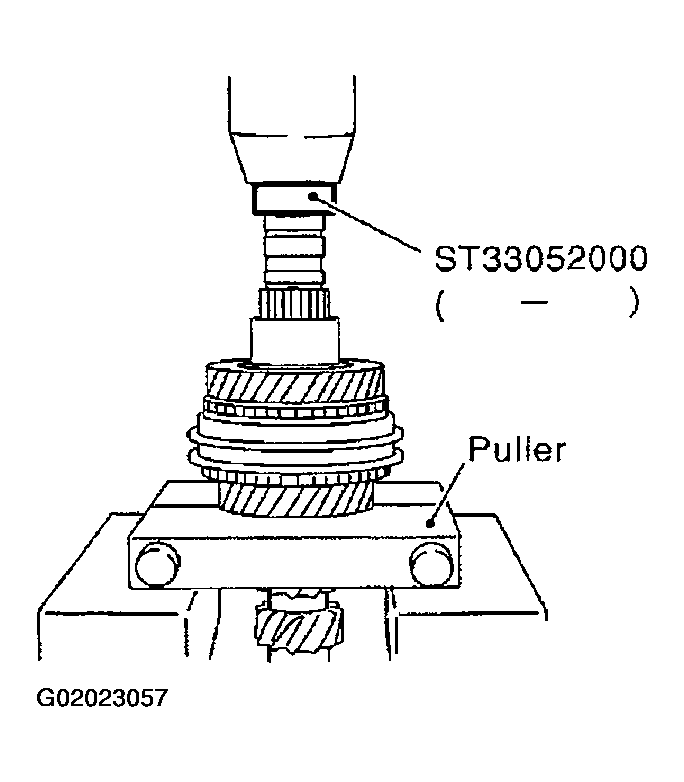

Fig 2: Pressing Input Shaft Rear Bearing Off
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring.

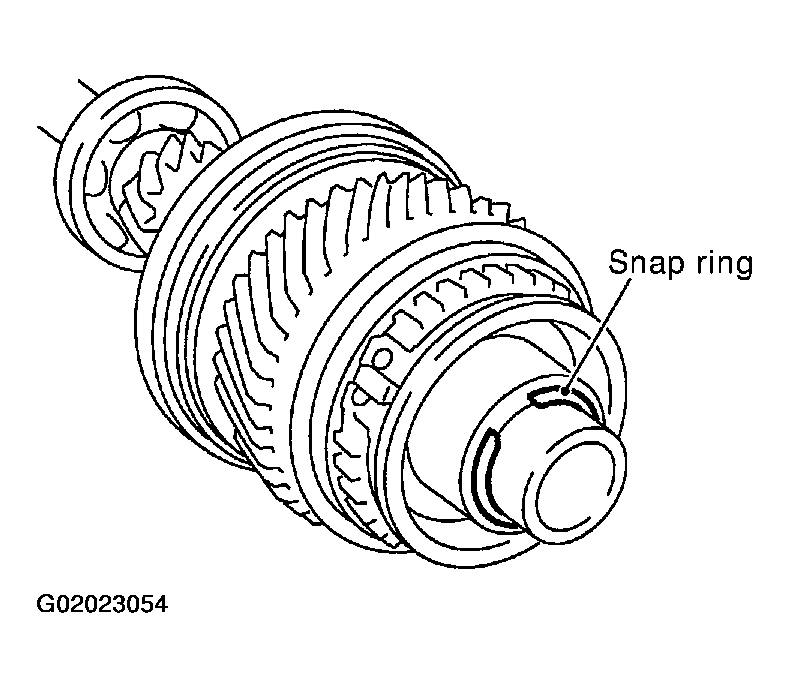

Fig 3: Identifying 5th Input Gear Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove input shaft bearing spacer and 5th stopper simultaneously.

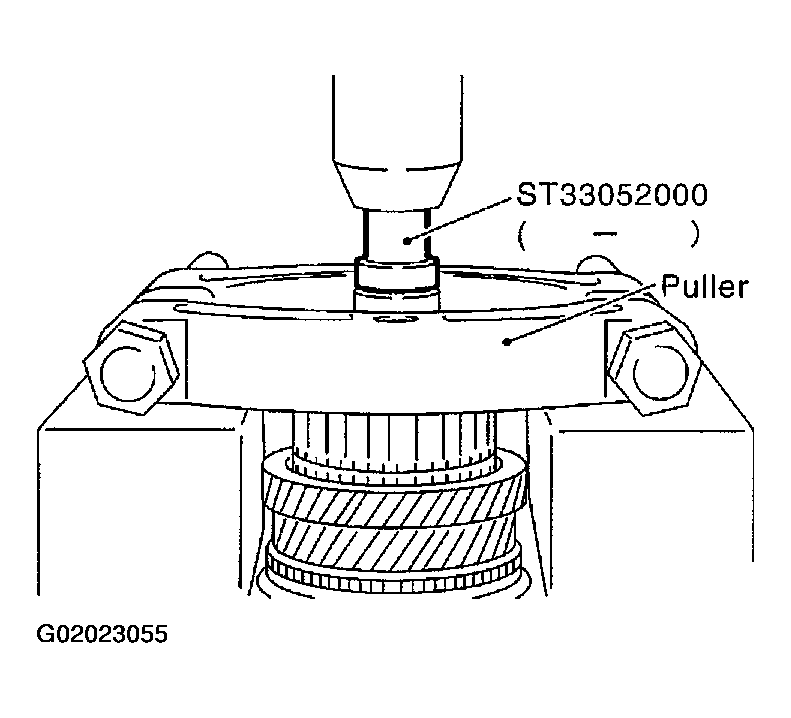

Fig 4: Removing Input Shaft Bearing Spacer & 5th Stopper
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 5th input gear and synchronizer hub assembly simultaneously.
Remove 5th needle bearing.

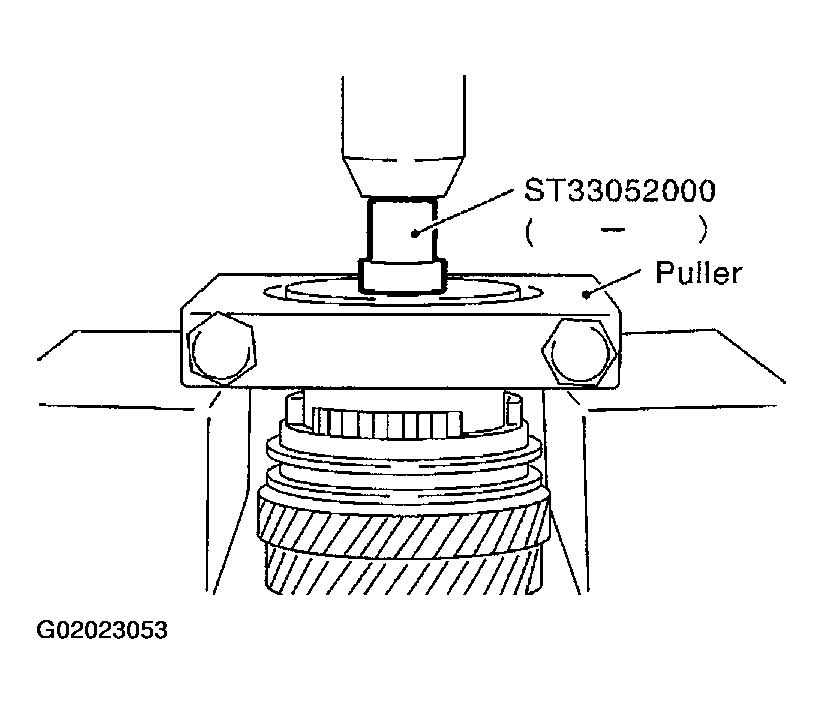

Fig 5: Pressing 5th Gear Needle Bearing Off
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 5th bushing, thrust washer, 4th input gear, 4th needle bearing, 4th bushing, 4th baulk ring, 3rd-4th synchronizer hub assembly, 3rd baulk ring and 3rd input gear simultaneously.
Remove 3rd needle bearing.

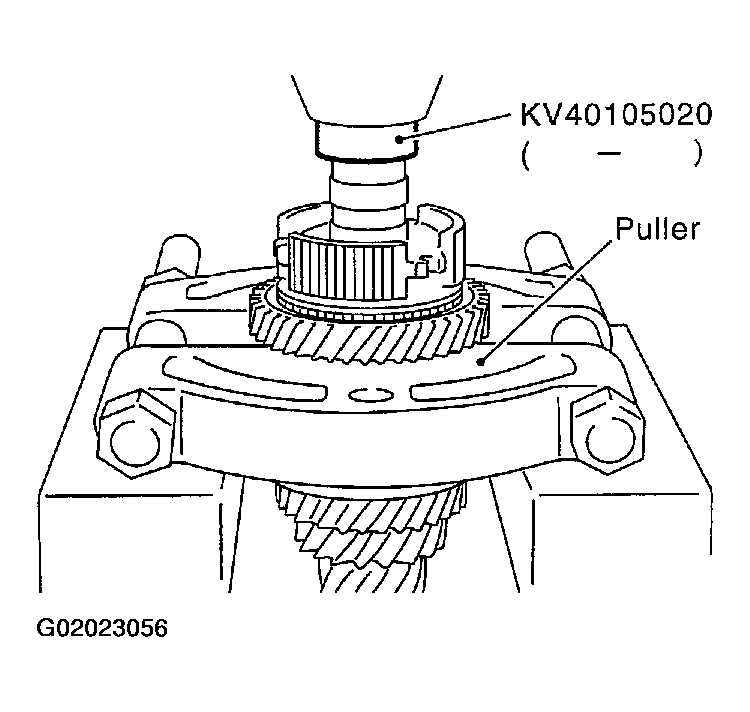

Fig 6: Pressing 3rd Gear Needle Bearing Off
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove input shaft front bearing.

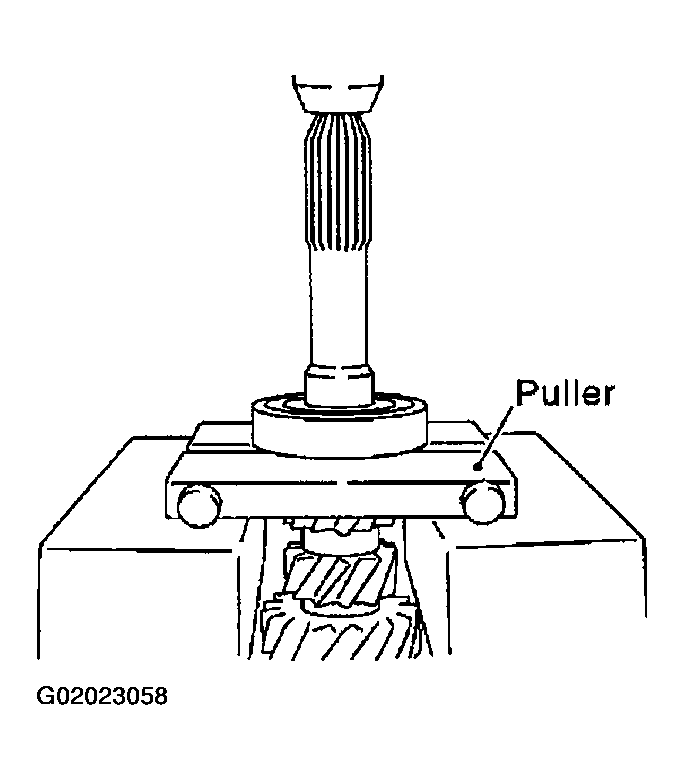

Fig 7: Pressing Input Shaft Front Bearing Off
Courtesy of NISSAN MOTOR CO., U.S.A.
