Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install 3rd needle bearing.
Install 3rd input gear and 3rd baulk ring.
Install spread spring, shifting insert and 3rd-4th synchronizer hub onto 3rd-4th coupling sleeve.
CAUTION:

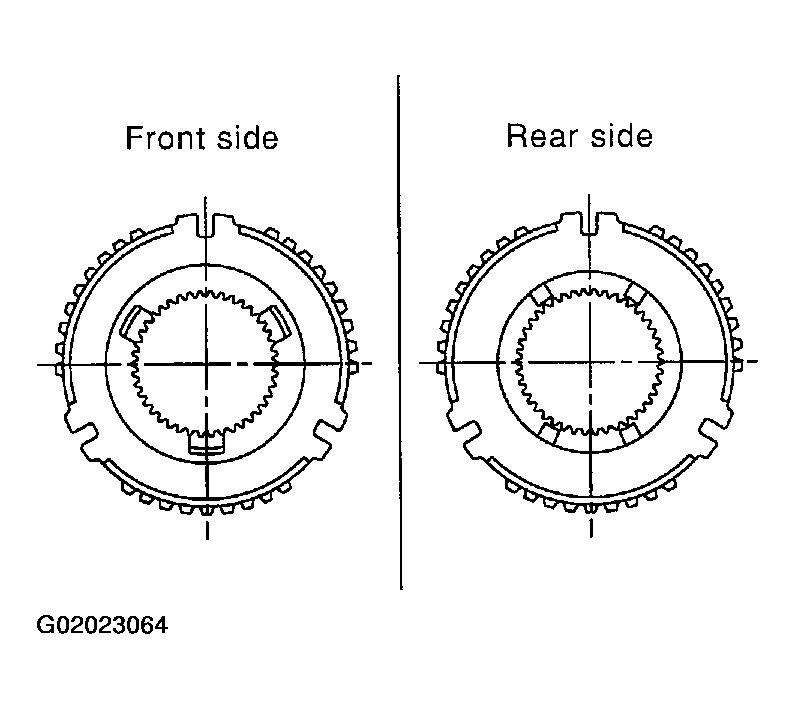

- Be careful with orientation of synchronizer hub.

  Fig 1: Checking Orientation Of 3rd & 4th Gear Synchronizer Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.

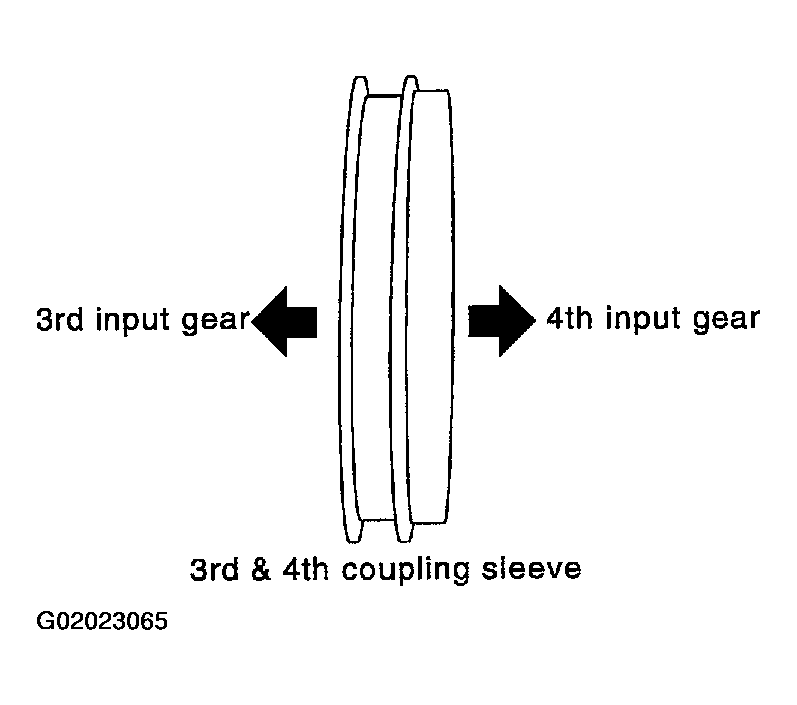

- Be careful with orientation of coupling sleeve.

  Fig 2: Checking Orientation Of 3rd & 4th Gear Coupling Sleeve
  Courtesy of NISSAN MOTOR CO., U.S.A.

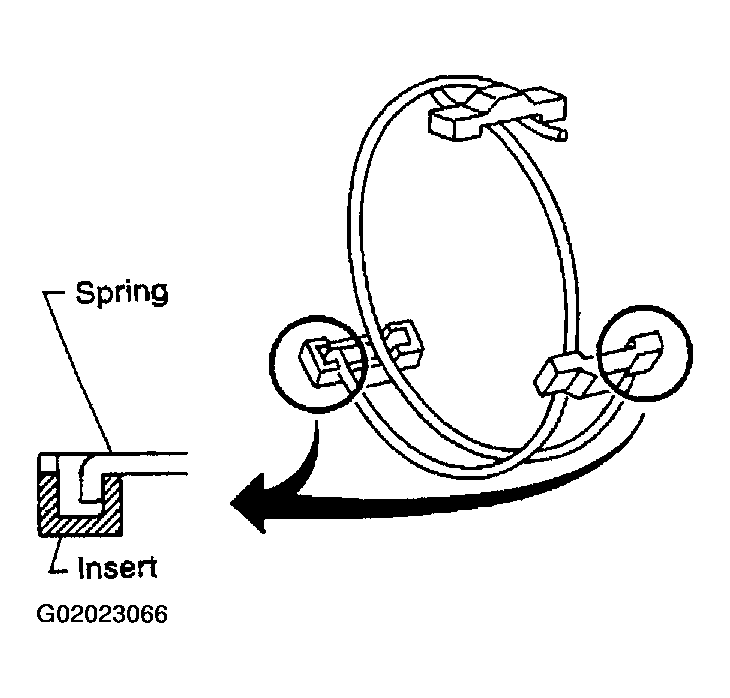

- Be sure not to hook ends of 2 spread springs (front and back: 2 each) on same shifting insert.

  Fig 3: Installing Spread Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Align grooves of shifting insert and 3rd baulk ring.

Fig 4: Installing 3rd-4th Synchronizer Hubs

Courtesy of NISSAN MOTOR CO., U.S.A.

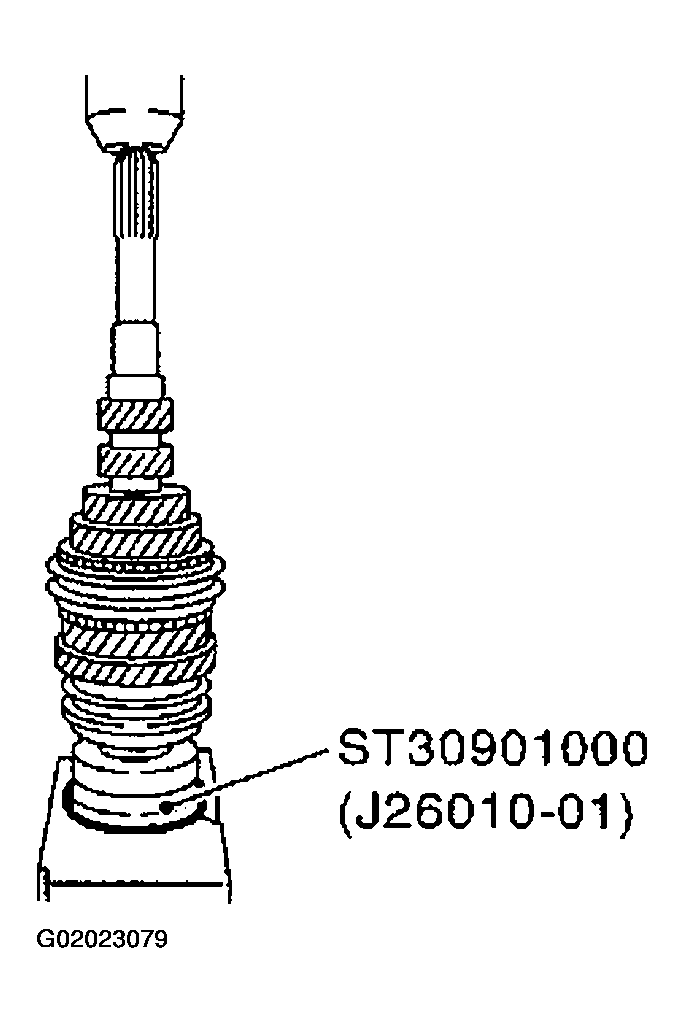

Install 3rd-4th synchronizer hub assembly.

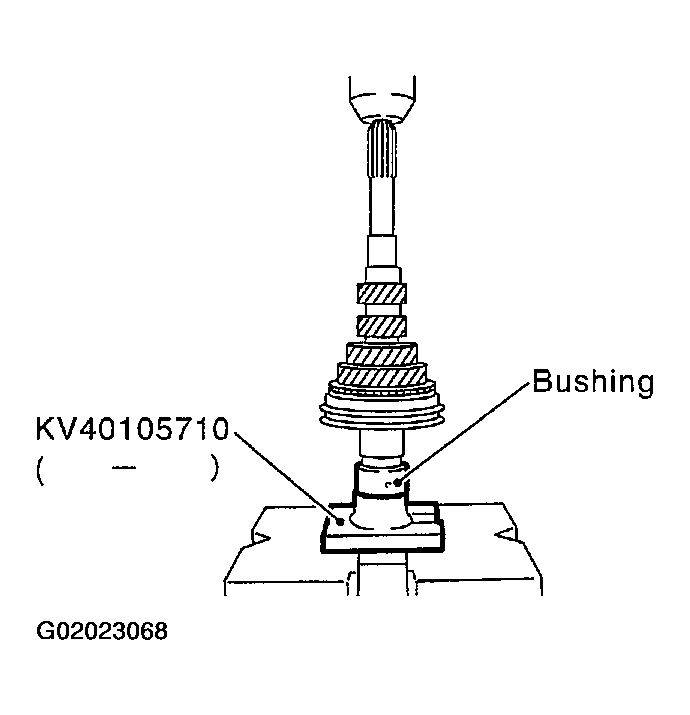

Install 4th bushing.

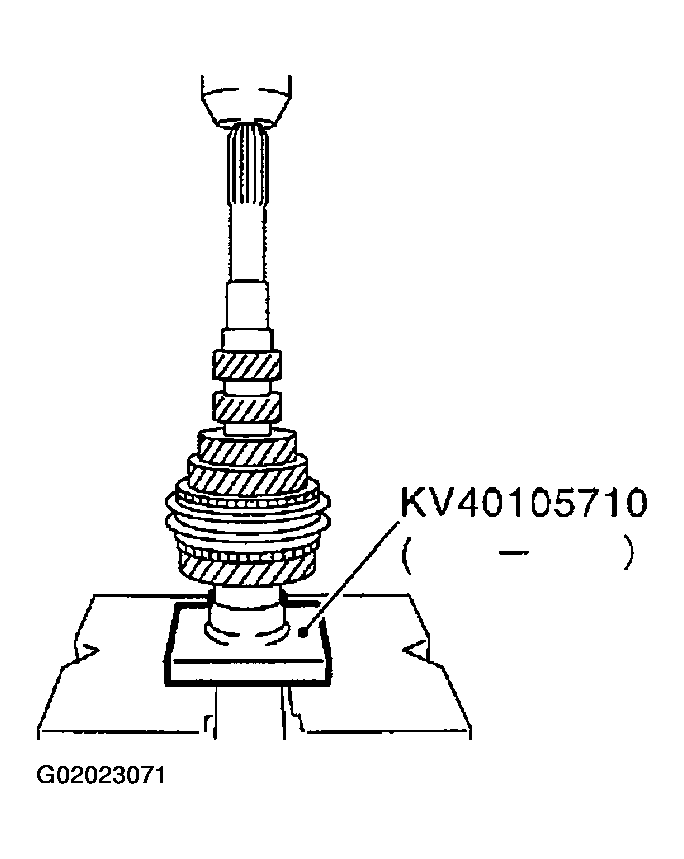

Fig 5: Installing 4Th Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install 4th baulk ring.
Install 4th input gear and 4th needle bearing.
Select thrust washer so that dimension "C2" satisfies standard below. Then install it onto input shaft.

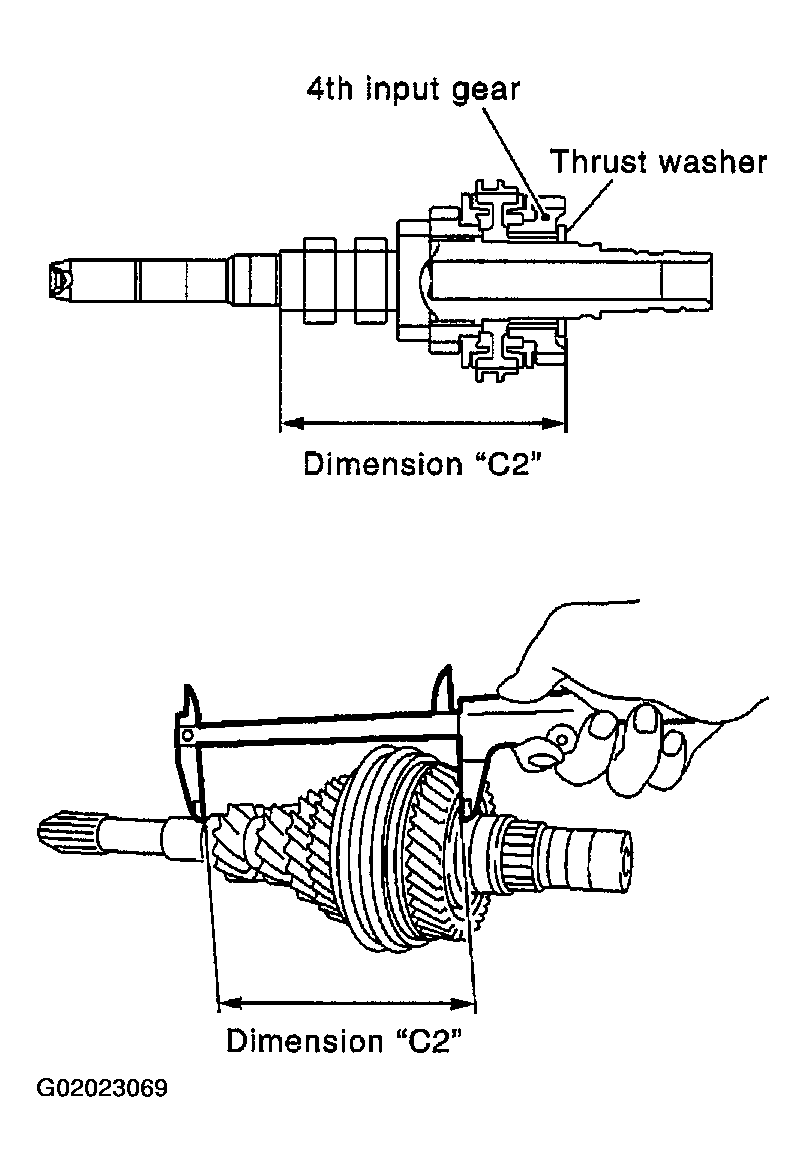

Fig 6: Identifying Dimension C2
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Standard for dimension C2: 154.7 - 154.8 mm (6.091 - 6.094 in)
Thrust Washer

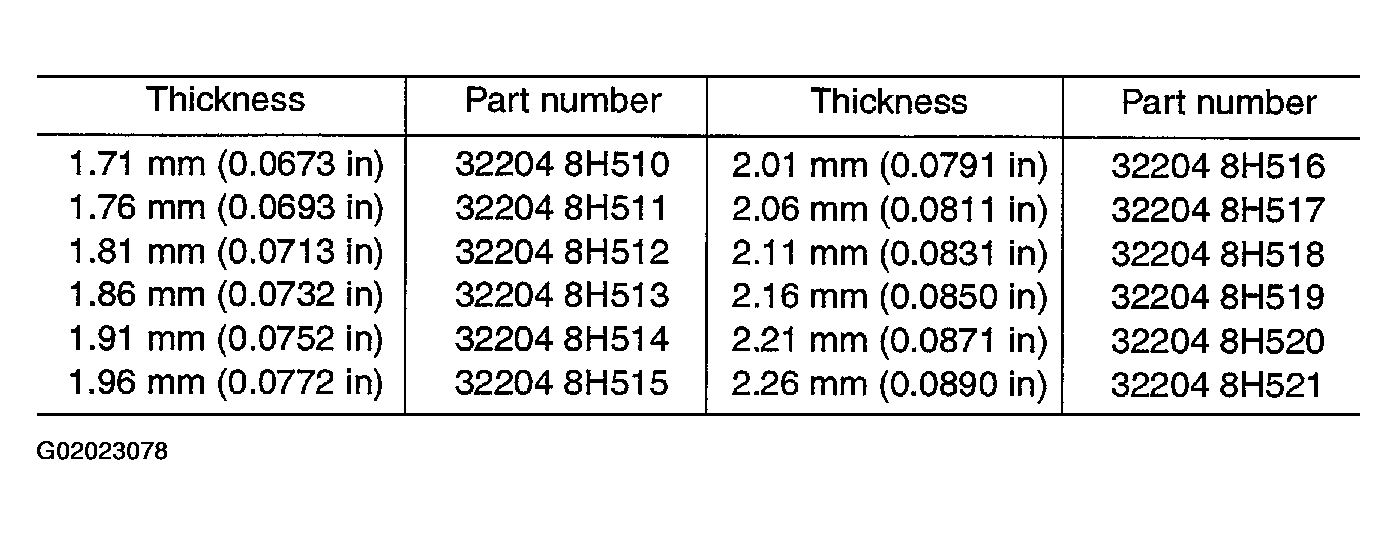

Fig 7: Dimension C2 Adjustment Shim Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

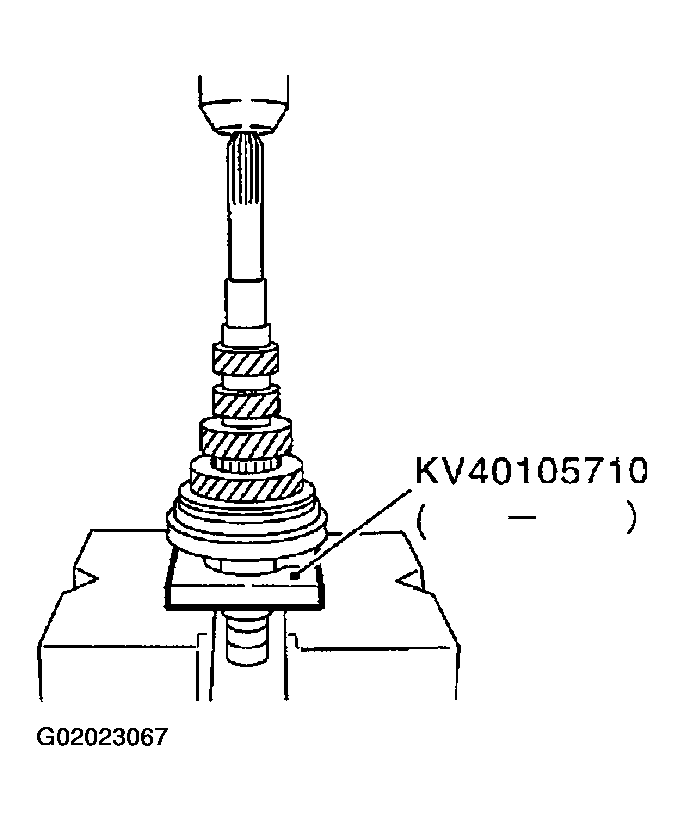

Install 5th bushing.
Install 5th needle bearing and 5th input gear.
Install 5th baulk ring.

Fig 8: Installing 5th Gear Components
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Be careful with orientation of synchronizer hub and shifting insert.

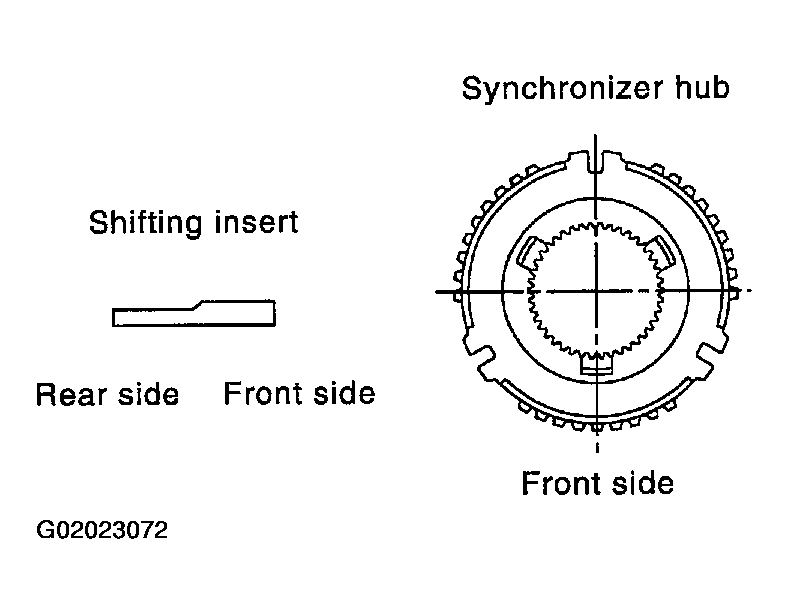

Fig 9: Checking Orientation Of 5th Gear Synchronizer Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Be careful with orientation of coupling sleeve.

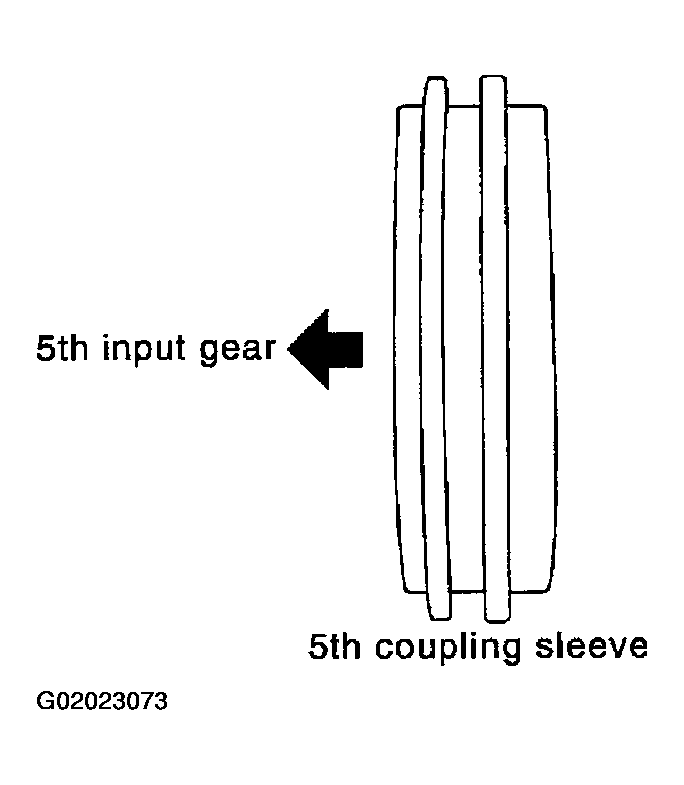

Fig 10: Checking Orientation Of 5th Gear Coupling Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
Be sure not to hook ends of 2 spread springs (front and back: 2 each) on same shifting insert.

Fig 11: Installing Spread Springs
Courtesy of NISSAN MOTOR CO., U.S.A.

Install spread spring, shifting insert and 5th synchronizer hub onto 5th coupling sleeve.

CAUTION: Align grooves of 5th shifting insert and 5th baulk ring.

Fig 12: Installing 5th Gear Synchronizer Hub Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

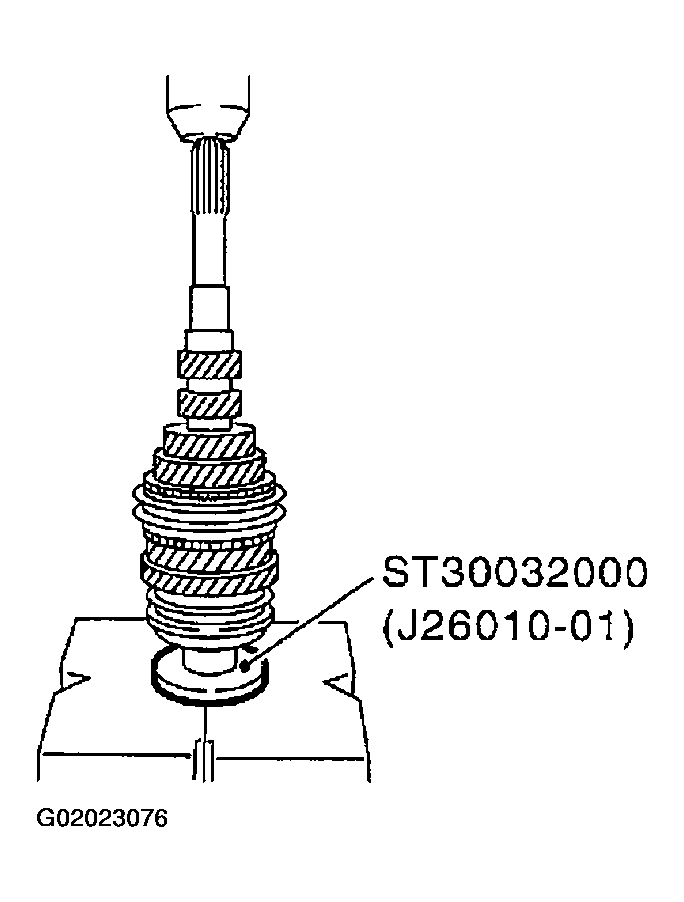

Install 5th synchronizer hub assembly.
Install 5th stopper and then input shaft bearing spacer.

Fig 13: Installing 5th Gear Stopper & Bearing Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring onto input shaft, and check that end play (gap between snap ring and groove) of input shaft bearing spacer satisfies standard.

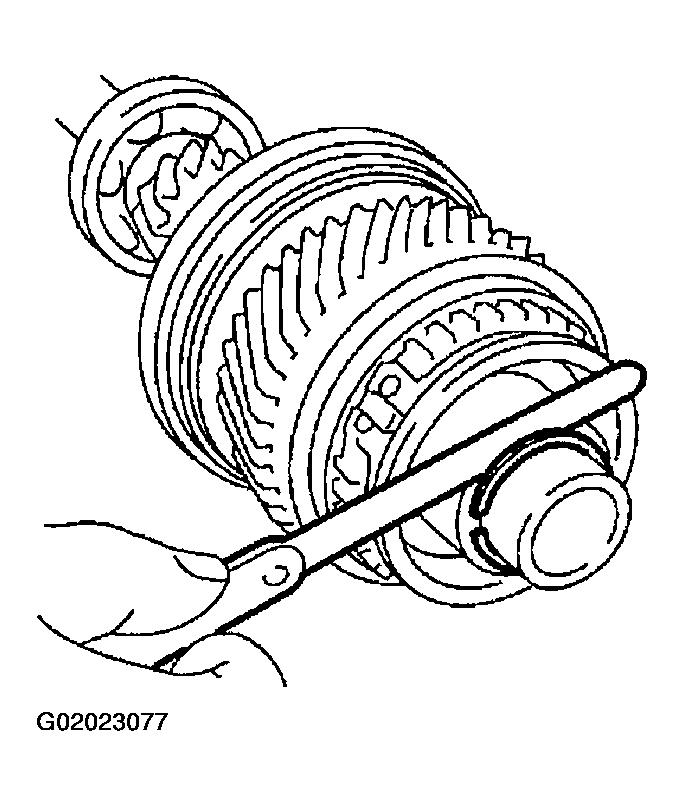

Fig 14: Measuring 5th Gear End Play
Courtesy of NISSAN MOTOR CO., U.S.A.
1. End play standard value : 0 - 0.1 mm (0 - 0.004 in)
- If measurement is outside the standard range, select snap ring.
Snap Rings

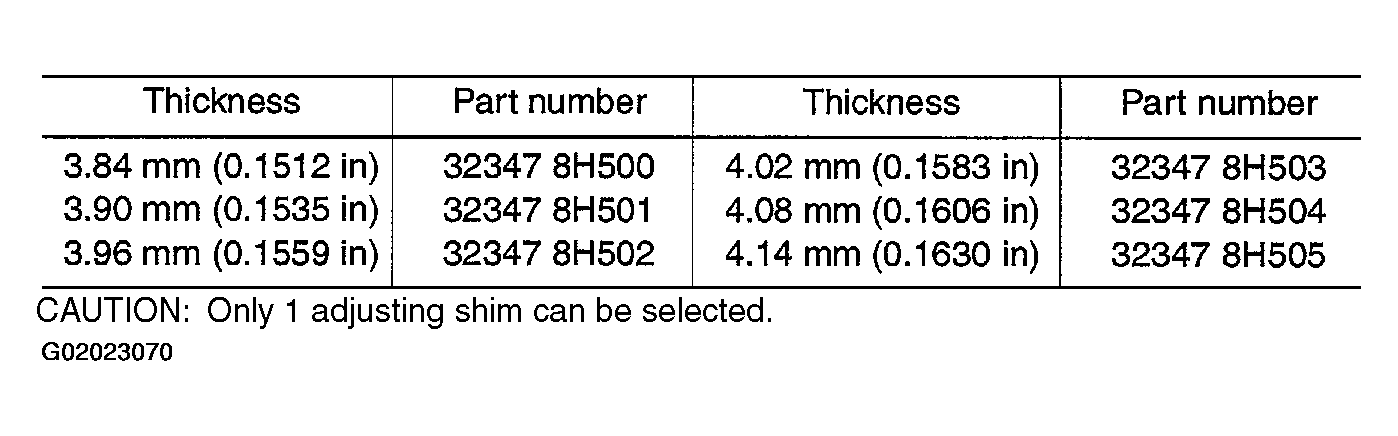

Fig 15: 5th Gear End Play Adjustment Shims
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Install input shaft rear bearing with its brown surface facing the input gear side.

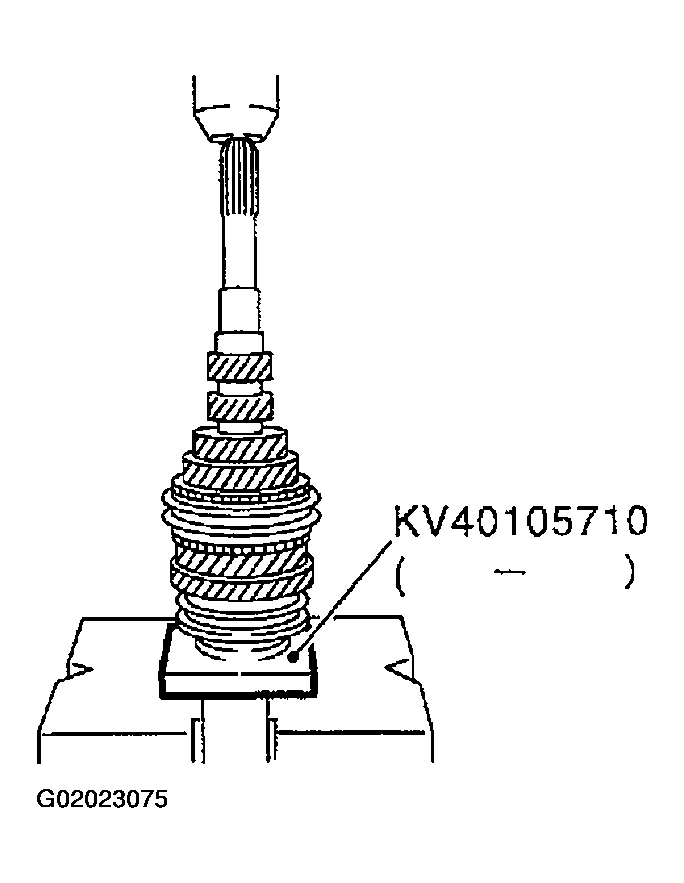

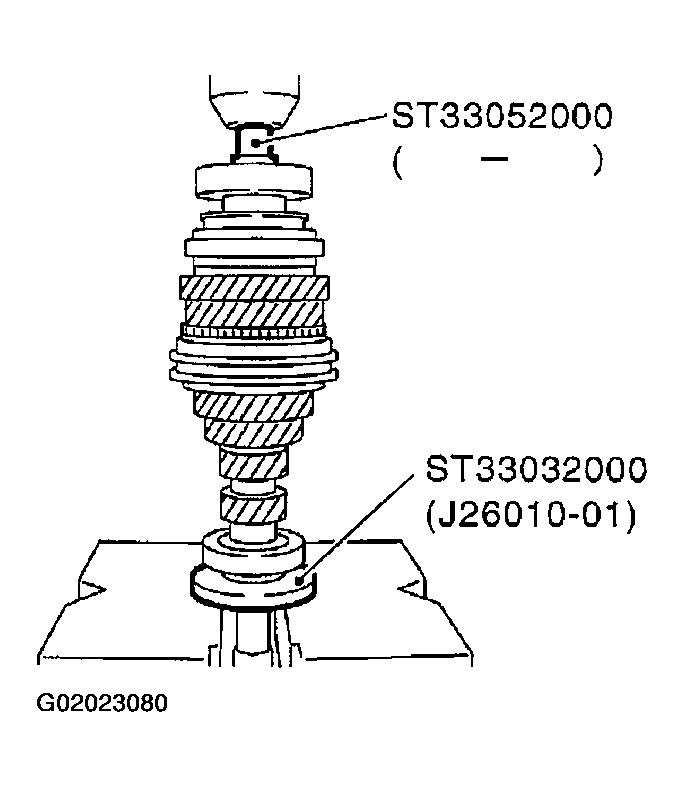

Fig 16: Installing Input Shaft Rear Bearing

Courtesy of NISSAN MOTOR CO., U.S.A.

Install input shaft rear bearing.
Install input shaft front bearing.
Install oil channel onto input shaft.

Fig 17: Installing Input Shaft Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.

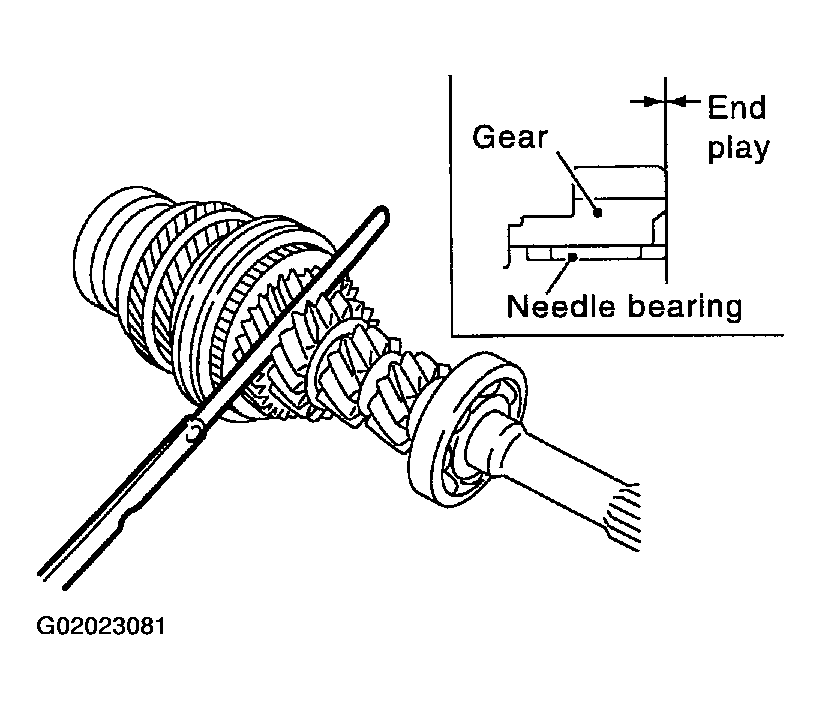

Check end play of 3rd, 4th, and 5th input gears.

Fig 18: Measuring Input Shaft End Play
Courtesy of NISSAN MOTOR CO., U.S.A.
1. End play standard value
  1. 3rd gear: 0.18 - 0.31 mm (0.0071 - 0.0122 in)
  2. 4th gear: 0.20 - 0.30 mm (0.0079 - 0.0118 in)
  3. 5th gear: 0.06 - 0.16 mm (0.0024 - 0.0063 in)
