Section 774 (Manual Transaxle RS5F70A)
>>
Service Data And Specifications (SDS)
>>
General Specifications
>>
Clearance Between Baulk Ring and Gear
>>
3rd, 4th, 5th, Reverse Baulk Ring
3rd, 4th, 5th, Reverse Baulk Ring
WARNING:
This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

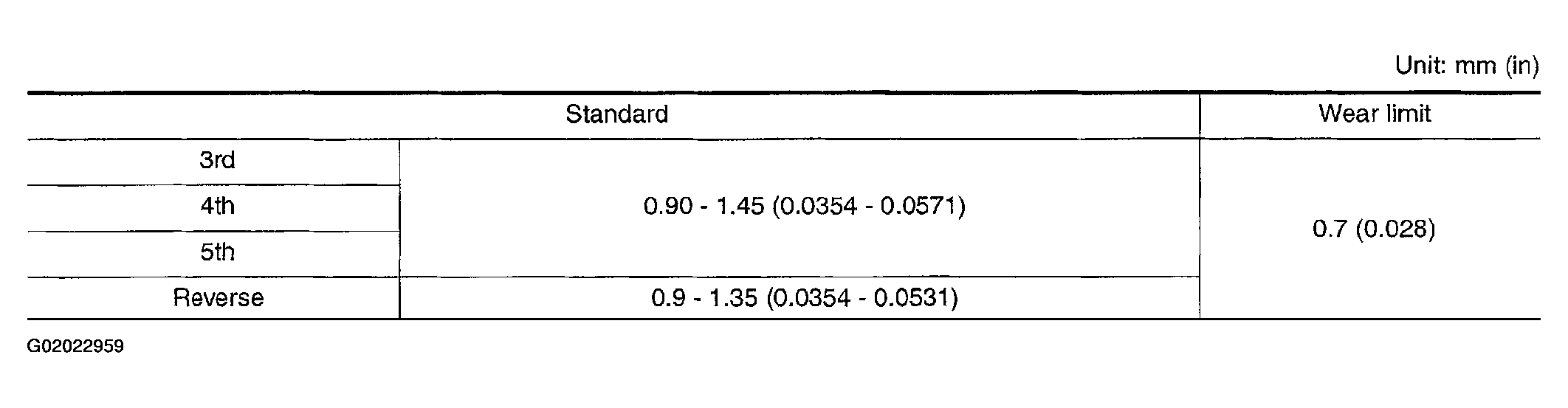

Fig 1: 3rd, 4th, 5th, Reverse Baulk Ring Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
