MAINSHAFT Rear Bearing Adjusting Shim

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

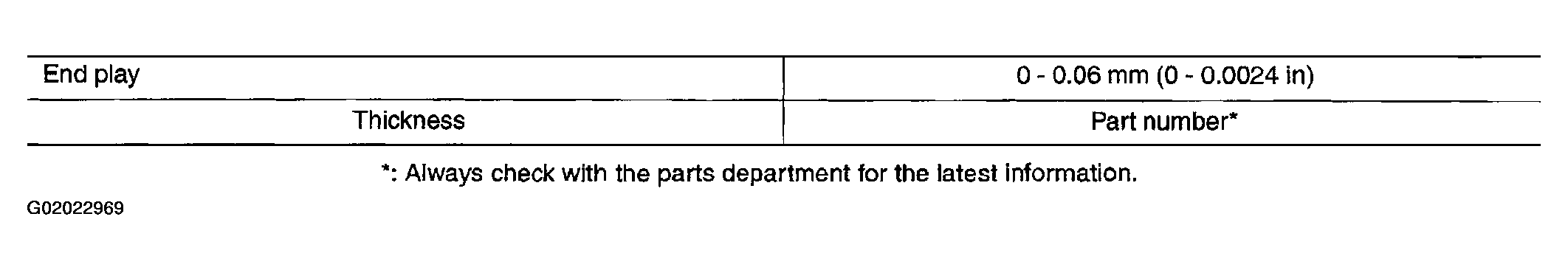

Fig 1: Mainshaft Rear Bearing Adjusting Shim Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

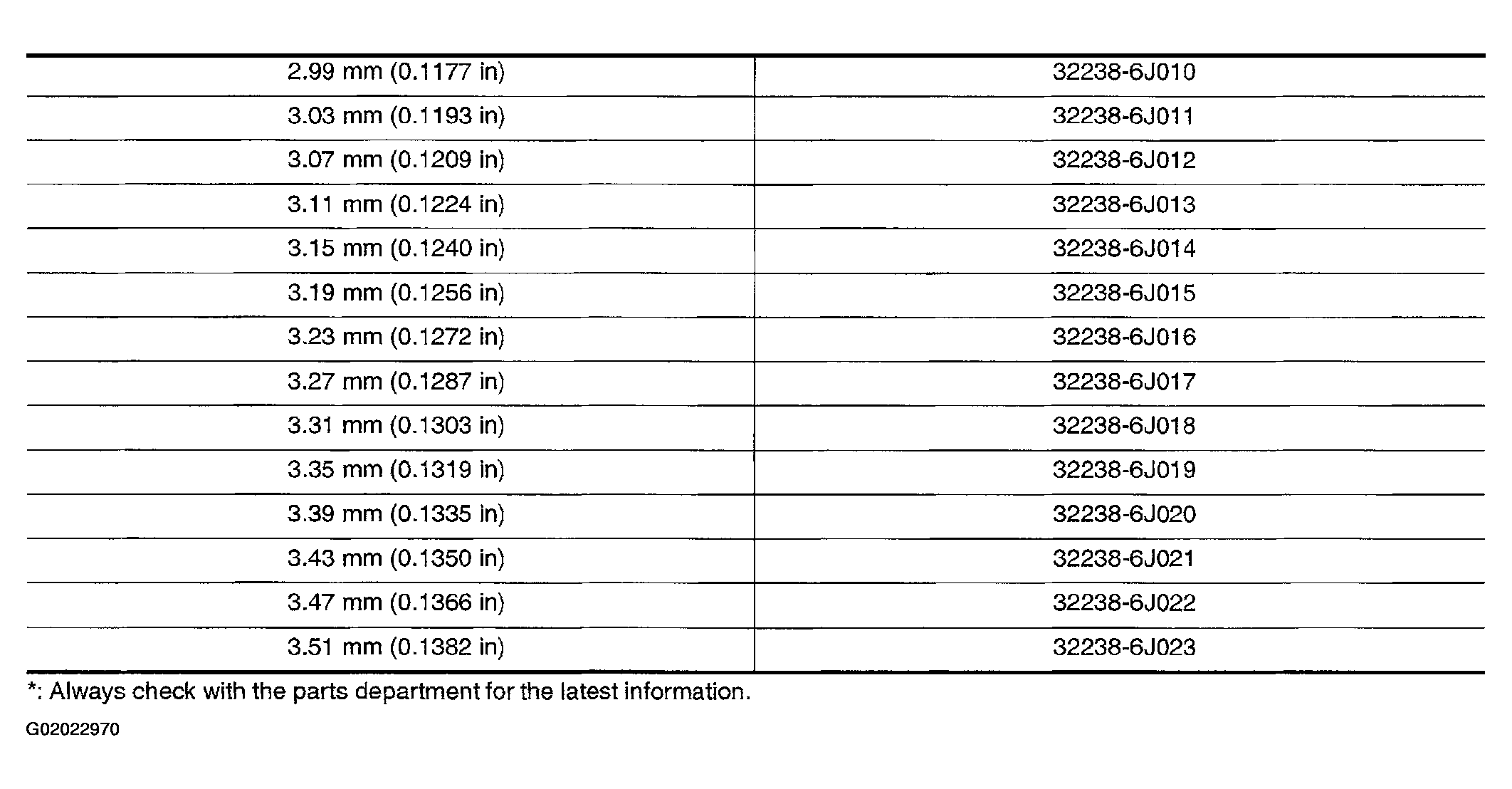

Fig 2: Mainshaft Rear Bearing Adjusting Shim Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
