NVH Troubleshooting Chart

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Use Fig 1 to help you find the cause of the symptom. the numbers indicate the order of the inspection. If necessary, repair or replace these parts.

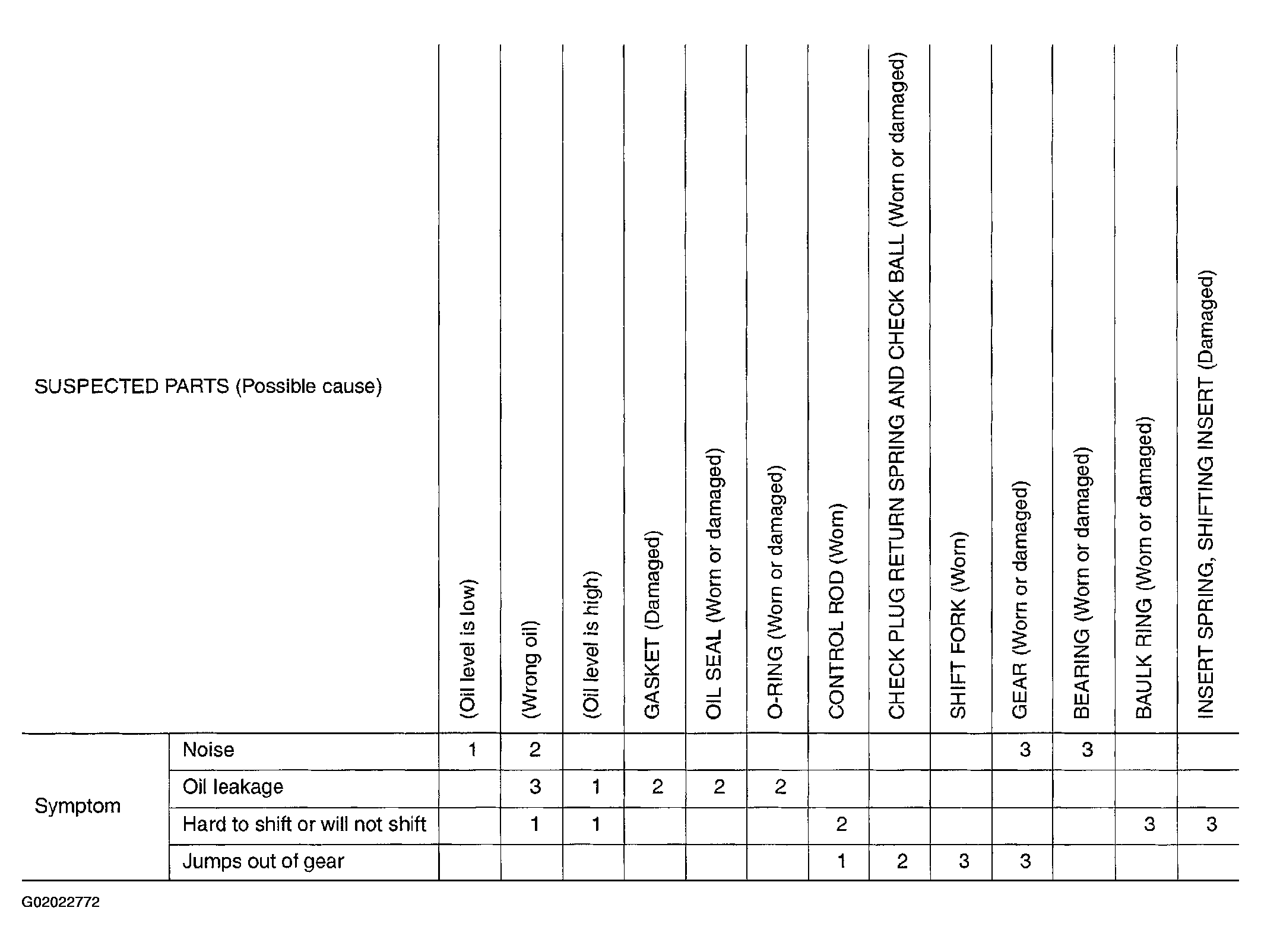

Fig 1: NVH Troubleshooting Chart
G02022772Courtesy of NISSAN MOTOR CO., U.S.A.
