Transaxle Gear Control

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the figure below for removal and installation procedure.

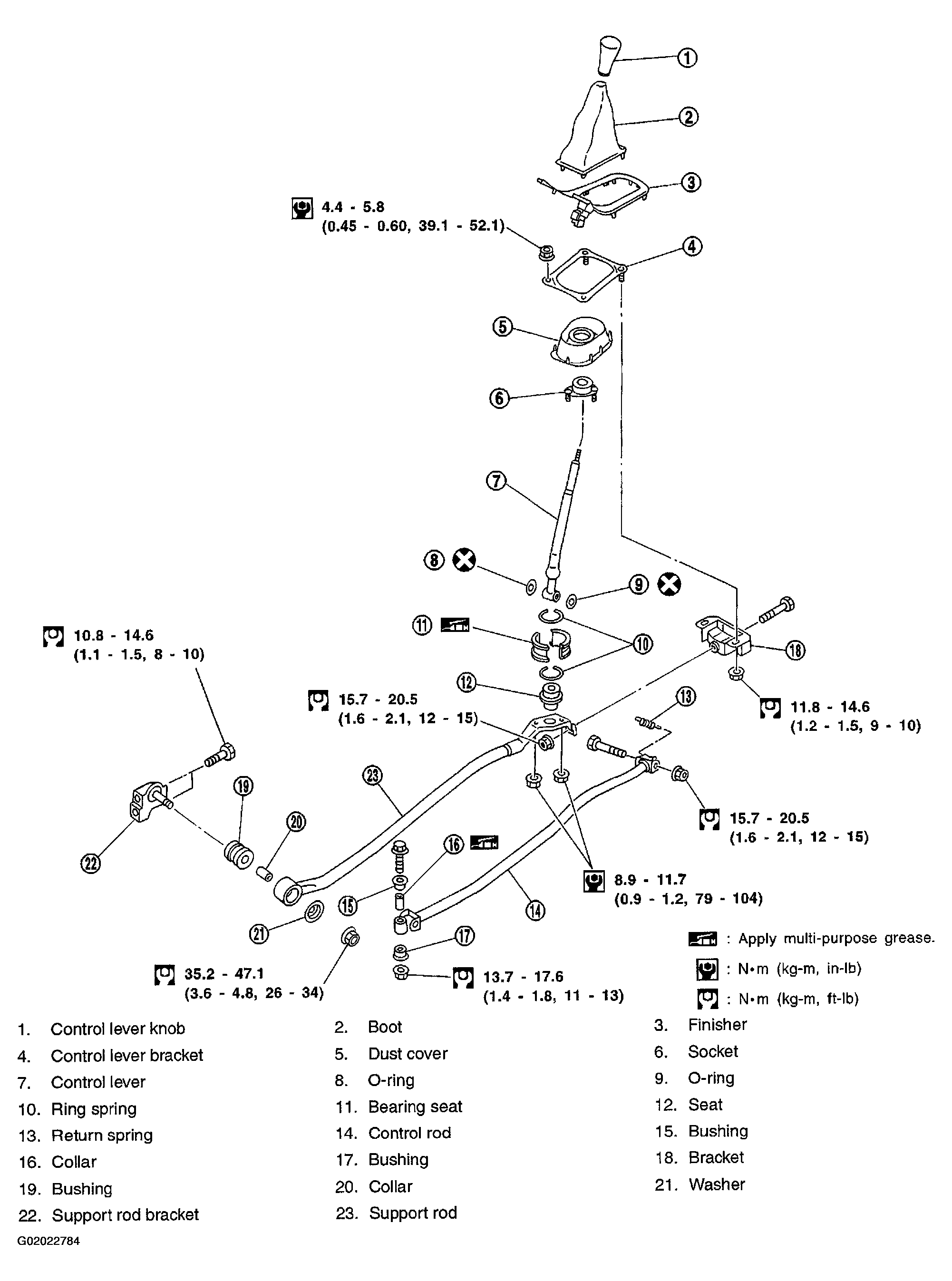

Fig 1: Exploded View Of Transaxle Gear Control Linkage
G02022784Courtesy of NISSAN MOTOR CO., U.S.A.
