Striking Rod Oil Seal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transaxle control rod from yoke.
  2. Remove retaining pin of yoke using Tool.

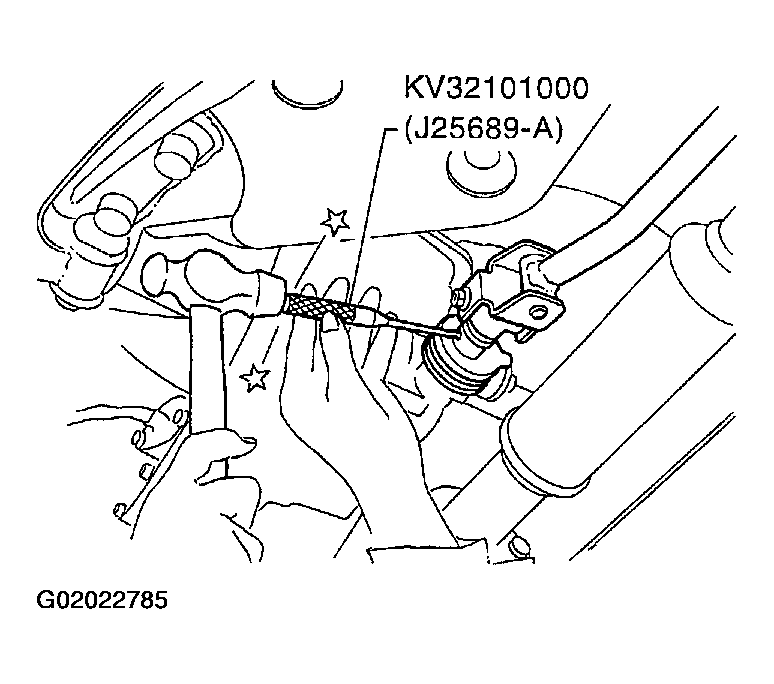

    Fig 1: Removing Retaining Pin From Yoke
    G02022785Courtesy of NISSAN MOTOR CO., U.S.A.
    • Be careful not to damage boot.
  3. Remove the boot.
  4. Remove striking rod oil seal with a suitable tool.

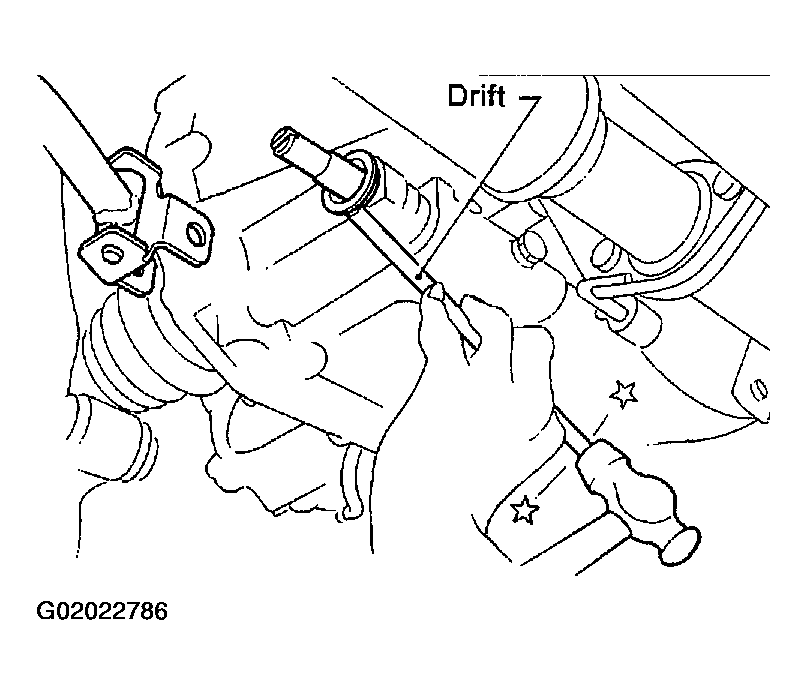

    Fig 2: Removing Striking Rod Oil Seal
    G02022786Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install striking rod oil seal using Tool.

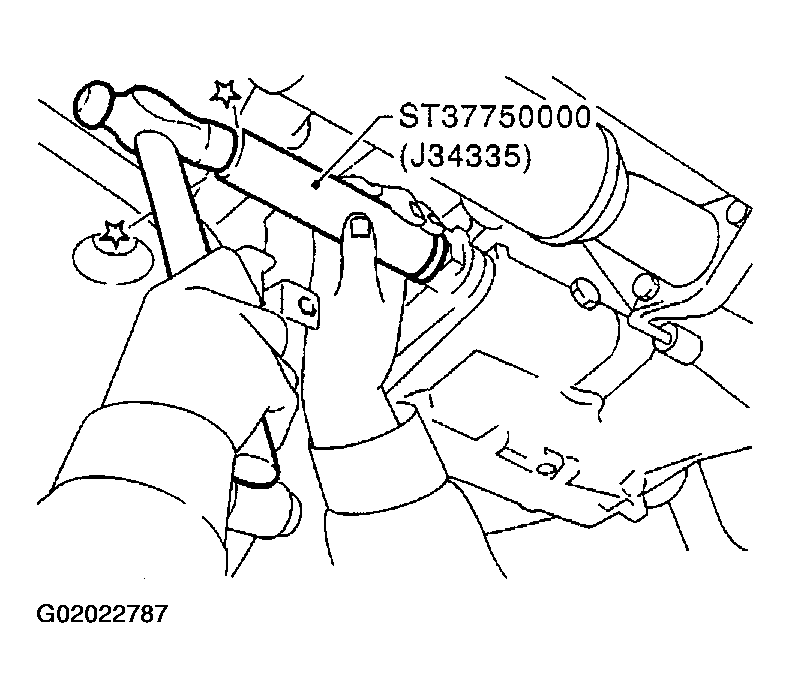

    Fig 3: Installing Striking Rod Oil Seal
    G02022787Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply multi-purpose grease to seal lip of oil seal before installing.
  6. Install the boot.
  7. Install yoke and retaining pin.
  8. Connect the transaxle control rod to the yoke.
