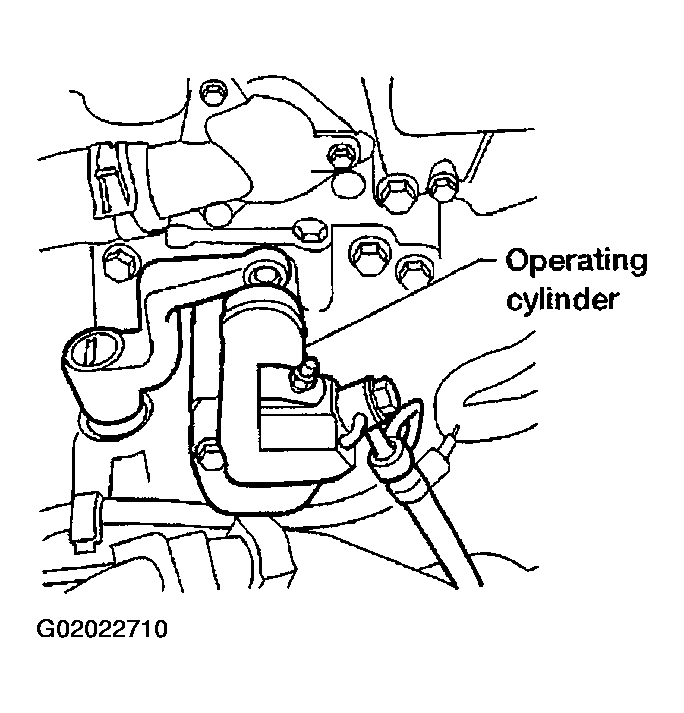

Operating Cylinder: Removal
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Drain brake fluid from clutch system.
- Remove union bolt and clutch hose from operating cylinder.
- Remove operating cylinder mounting bolts, and remove cylinder from vehicle.
CAUTION:
Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
