Pedal Height

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that clutch pedal height "H" is within specification.
    • Measure distance between the upper surface of dash reinforcement and pedal.

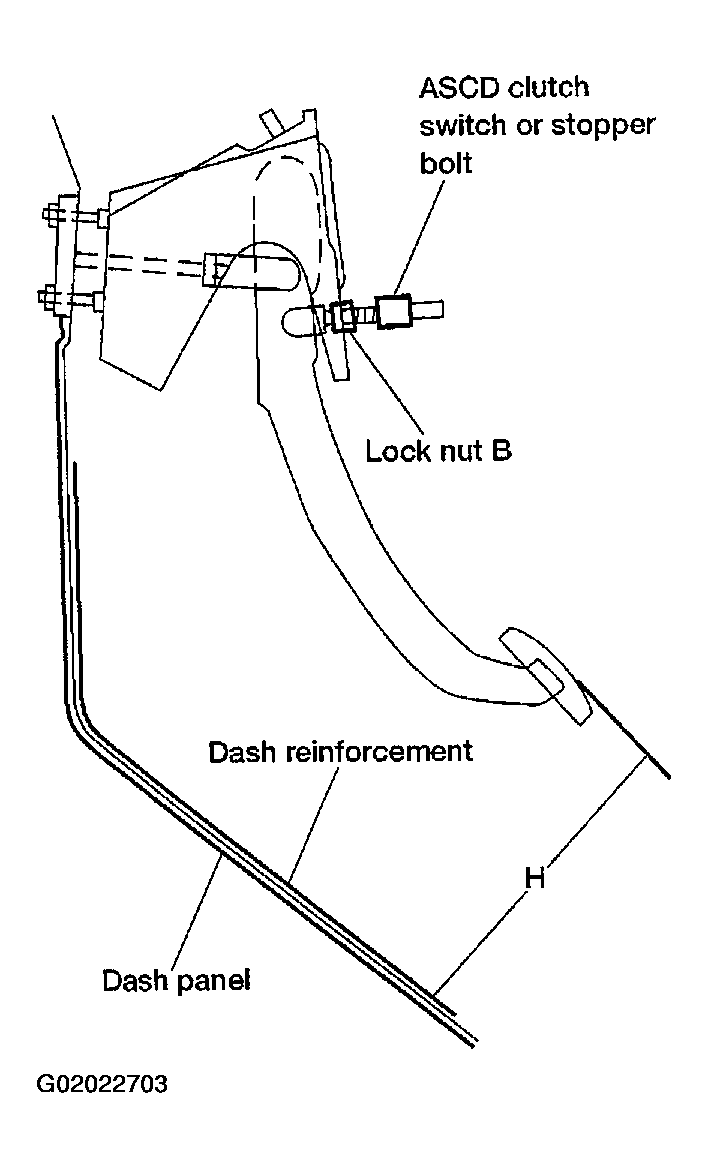

      • Fig 1: Measuring Distance H
      G02022703Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Pedal height "H" : 156.1 - 166.1 mm (6.146 - 6.539 in)
  2. Adjust pedal free play with master cylinder push rod. Then tighten lock nut.
    • Push or step on clutch pedal until resistance is felt, and check the distance the pedal moves.

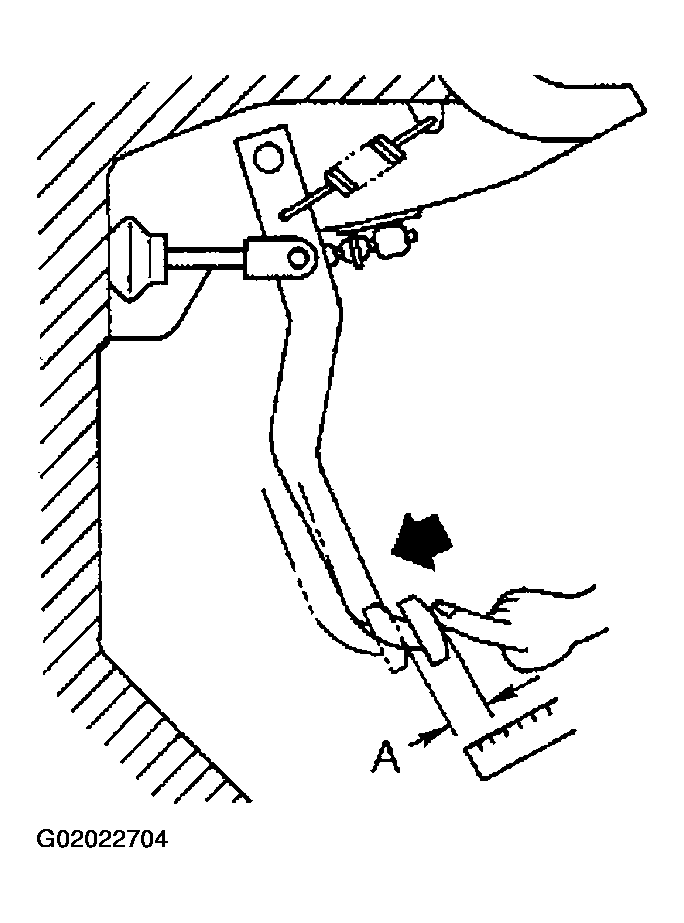

      • Fig 2: Determining Pedal Free Play
      G02022704Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Pedal free play "A" : 9 -16 mm (0.35 - 0.63 in)
  3. Adjust clearance "C" shown in Fig 3 while fully depressing clutch pedal.

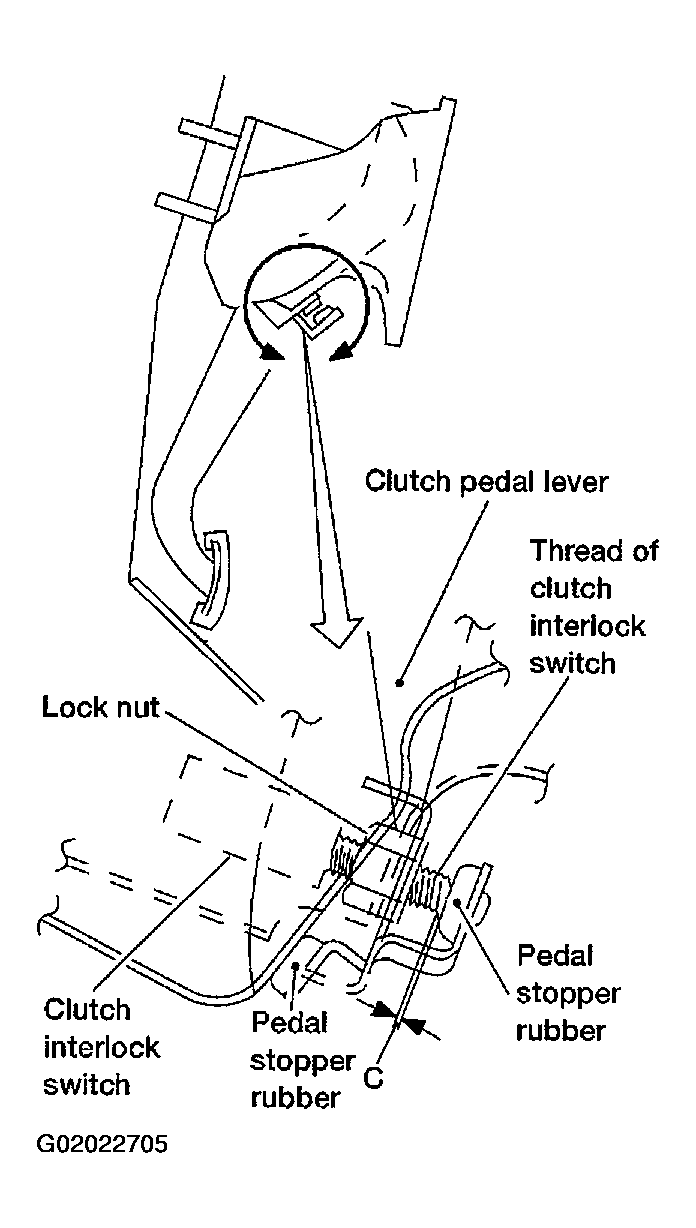

Fig 3: Adjusting Clearance C
G02022705Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Clearance C : 0.1 - 1.0 mm (0.004 - 0.039 in)
