Clutch Release Mechanism: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove manual transaxle from vehicle. Refer to REMOVAL AND INSTALLATION - RS5F70A , REMOVAL AND INSTALLATION - RS5F51A , or REMOVAL AND INSTALLATION - RS6F51H .
  2. Move withdrawal lever enough to remove release bearing and release bearing spring, and remove release bearing from clutch lever.
  3. Support clutch lever claws with an appropriate wood block, align retaining pin with A in the figure, and drive out spring pins using a pin punch.

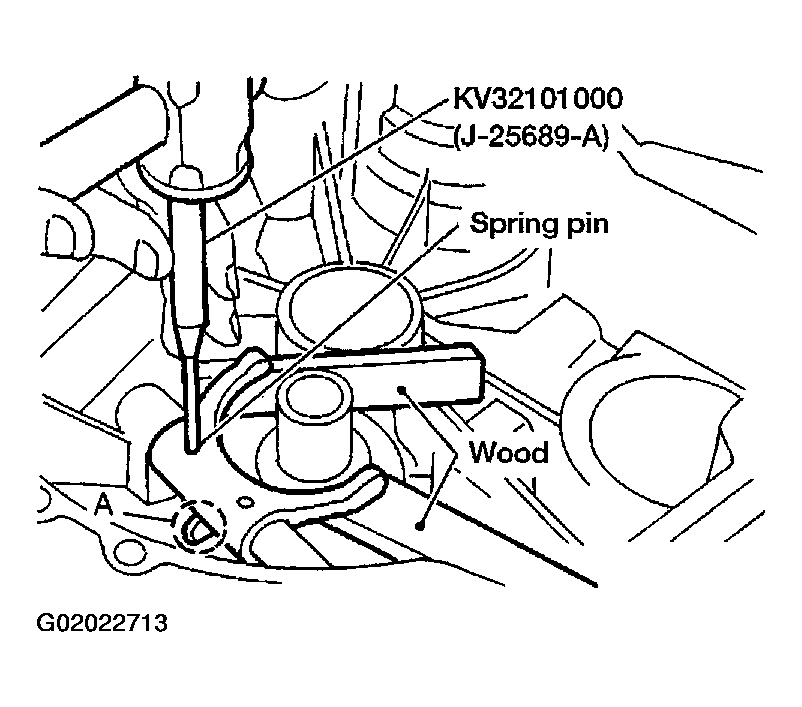

    Fig 1: Driving Out Spring Pins
    G02022713Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Pull out withdrawal lever and remove clutch lever from clutch housing.
