Clutch Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen push rod lock nut "A" to remove clevis and lock nut "A".

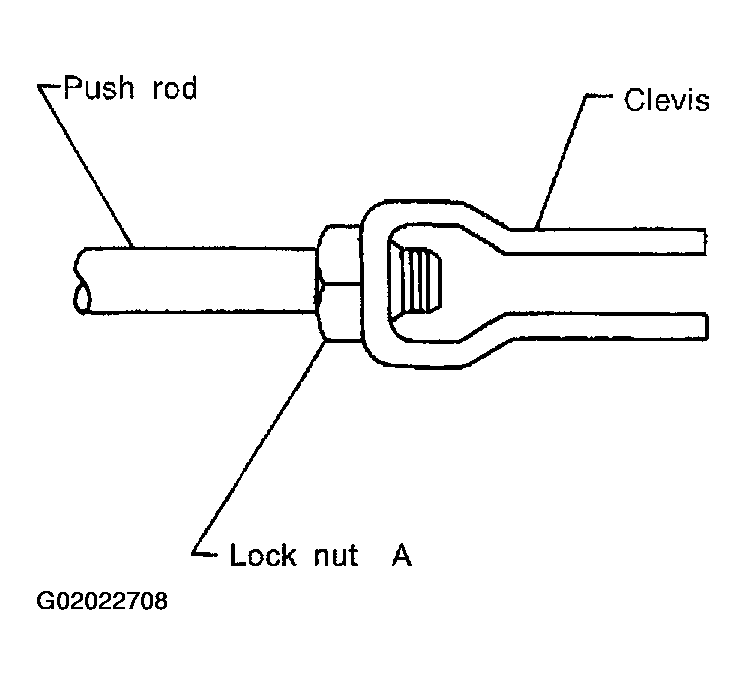

    Fig 1: Identifying Push Rod, Lock Nut & Clevis
    G02022708Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove dust cover.
  3. Remove stopper ring and stopper, and remove push rod from cylinder body. During removal, keep push rod depressed, to prevent piston inside master cylinder from popping out.
  4. Remove piston assembly from cylinder body.
  5. Remove return spring.
  6. Remove pin using pin punch, then remove nipple and seal.
