Clutch Disc

Check clutch disc for wear of facing.

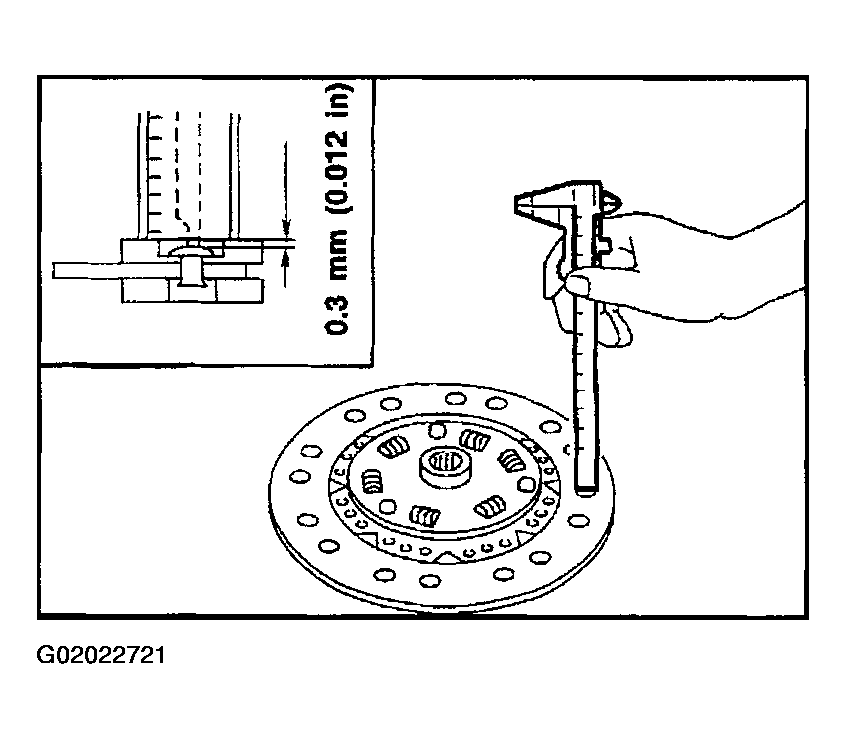

Fig 1: Checking Clutch Disc For Wear Of Facing

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Wear limit of facing : 0.3 mm (0.012 in)
2. surface to rivet head

• Check clutch disc for backlash of spline and runout of facing.

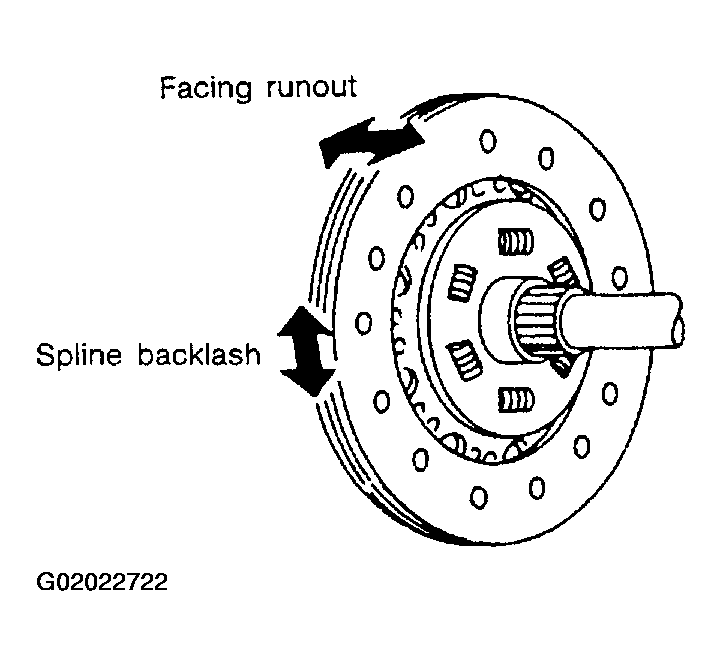

  Fig 2: Checking Clutch Disc For Spline Backlash & Runout

  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Maximum backlash of : 0.9 mm (0.035 in)
  2. spline (at outer edge of
  3. disc)
  4. Runout limit : 1.0 mm (0.039 in)
  5. Distance of runout : 102.5 mm (4.04 in)
  6. check point (from hub
  7. center)
• Check clutch disc for burns, discoloration or oil or grease leakage. Replace if necessary.
