Clutch Disc, Clutch Cover And Flywheel: Components

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following operations are with manual transaxle removed from vehicle.

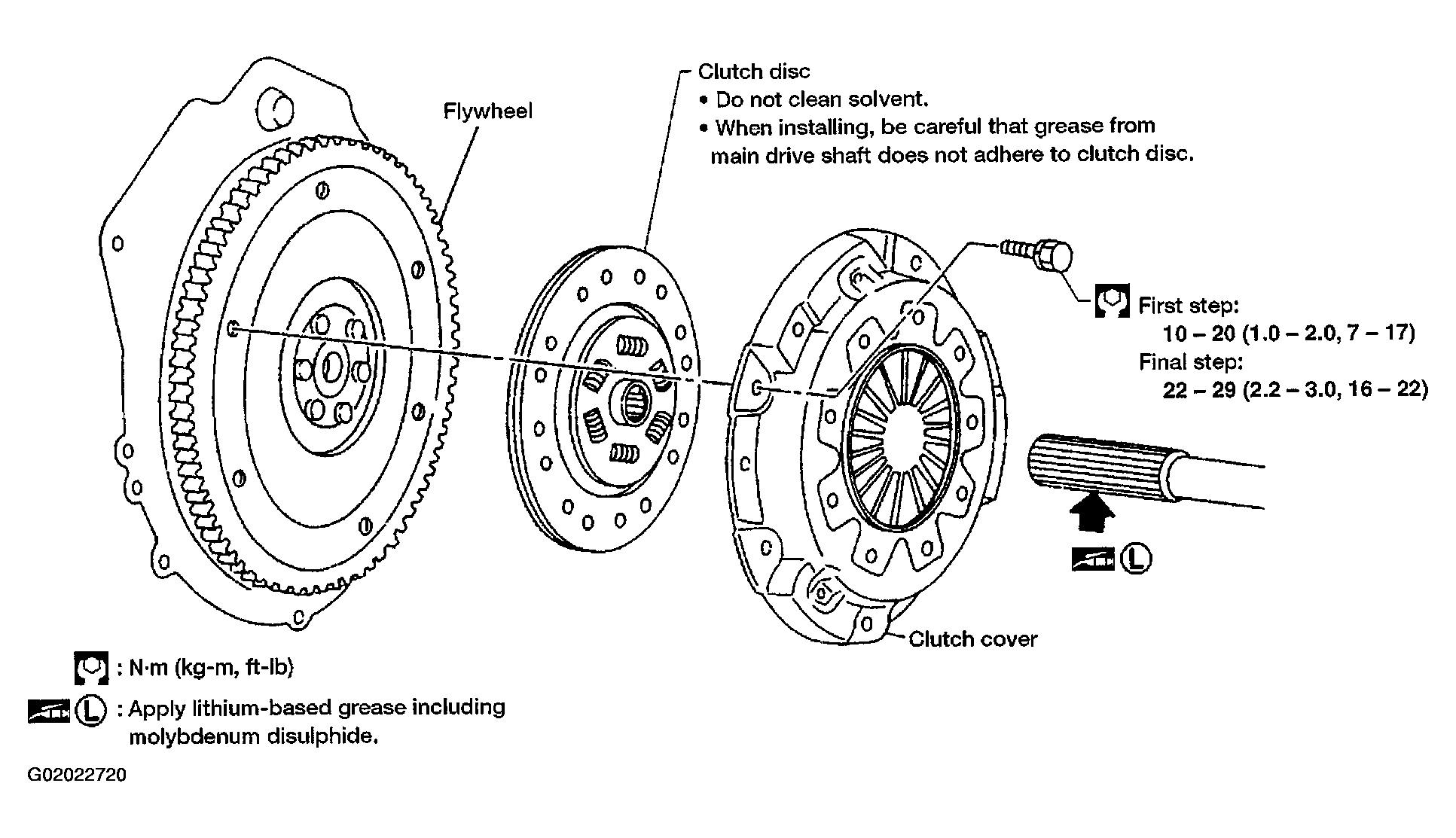

Fig 1: Identifying Clutch Related Components

Courtesy of NISSAN MOTOR CO., U.S.A.
