Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

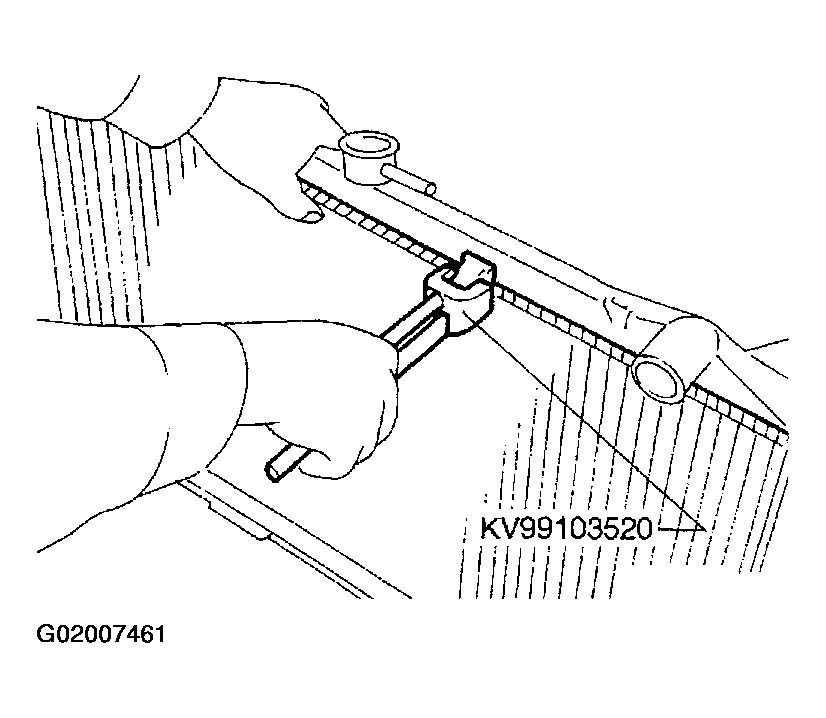

Remove tank with Tool.

Fig 1: Removing Radiator Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

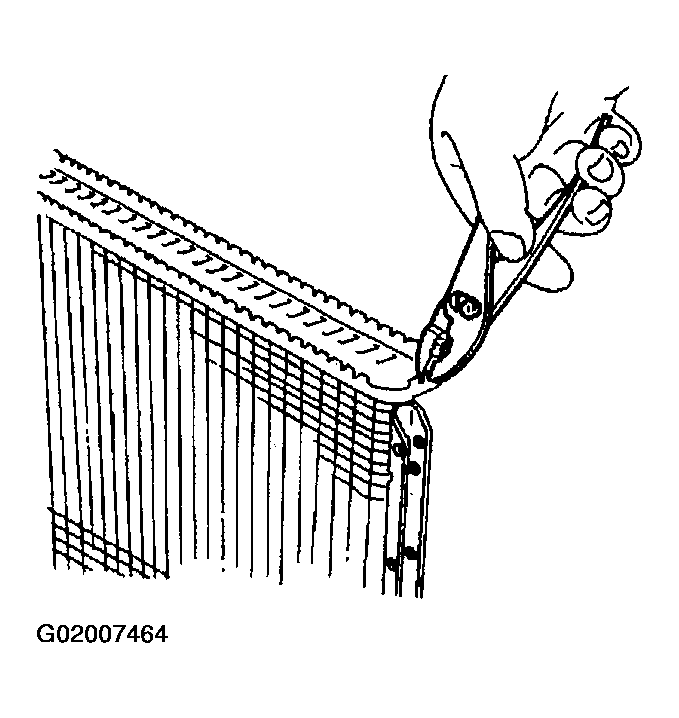

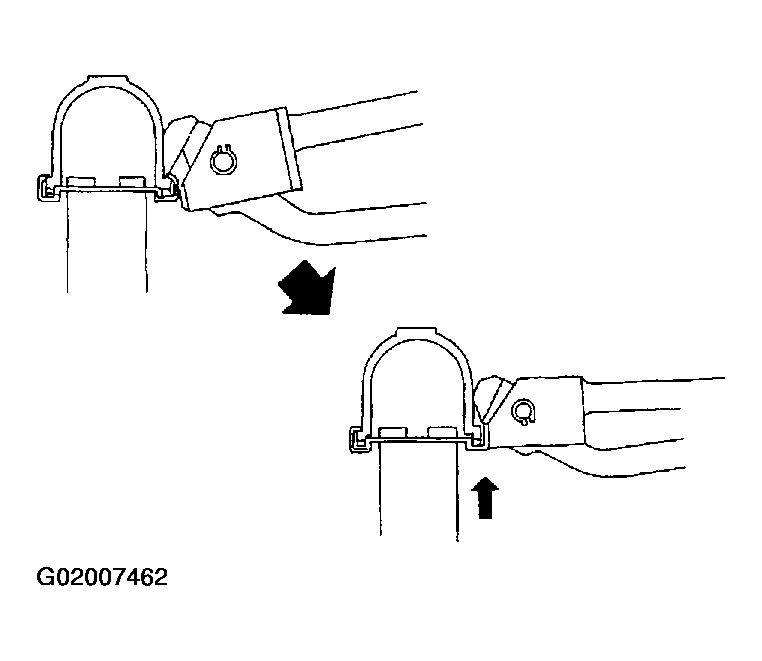

- Grip the crimped edge and bend it upwards so that the Tool slips off.
  Do not bend excessively.

  Fig 2: Bending Crimped Edge
  Courtesy of NISSAN MOTOR CO., U.S.A.

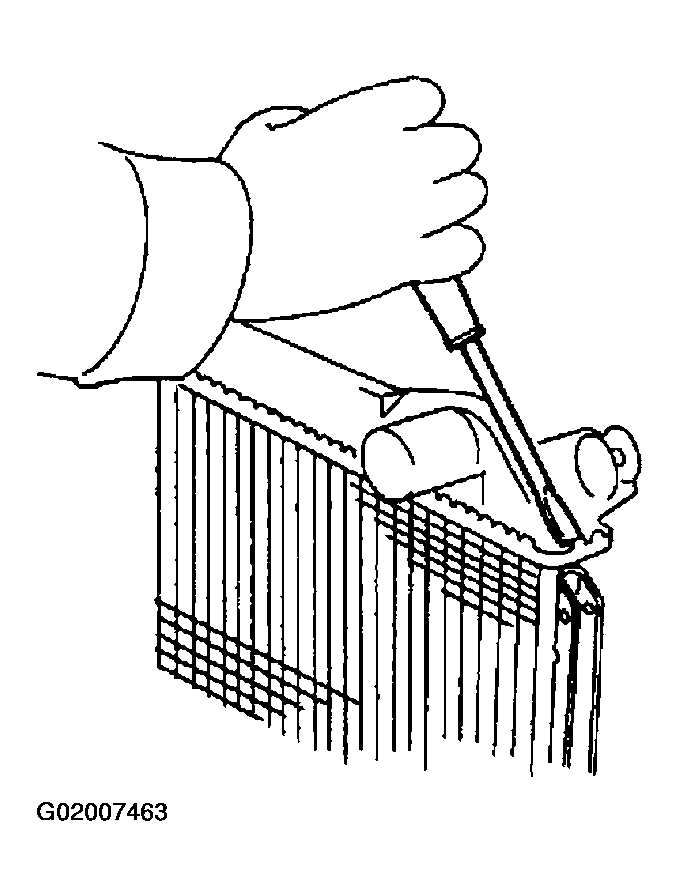

- In areas where Tool cannot be used, use a screwdriver to bend the edge up.

  Fig 3: Bending Crimped Edge With Screwdriver
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Be careful not to damage tank.
Make sure the edge stands straight up.
Remove oil cooler from tank (A/T model only).

Fig 4: Removing Oil Cooler From Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
