Removal and Installation: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Drain engine coolant. Refer to COOLING SYSTEM BLEEDING .
Remove the air duct and air cleaner assembly.
Disconnect the A/T oil cooler hoses (if equipped) and install a blind plug in the hoses to prevent A/T oil loss.

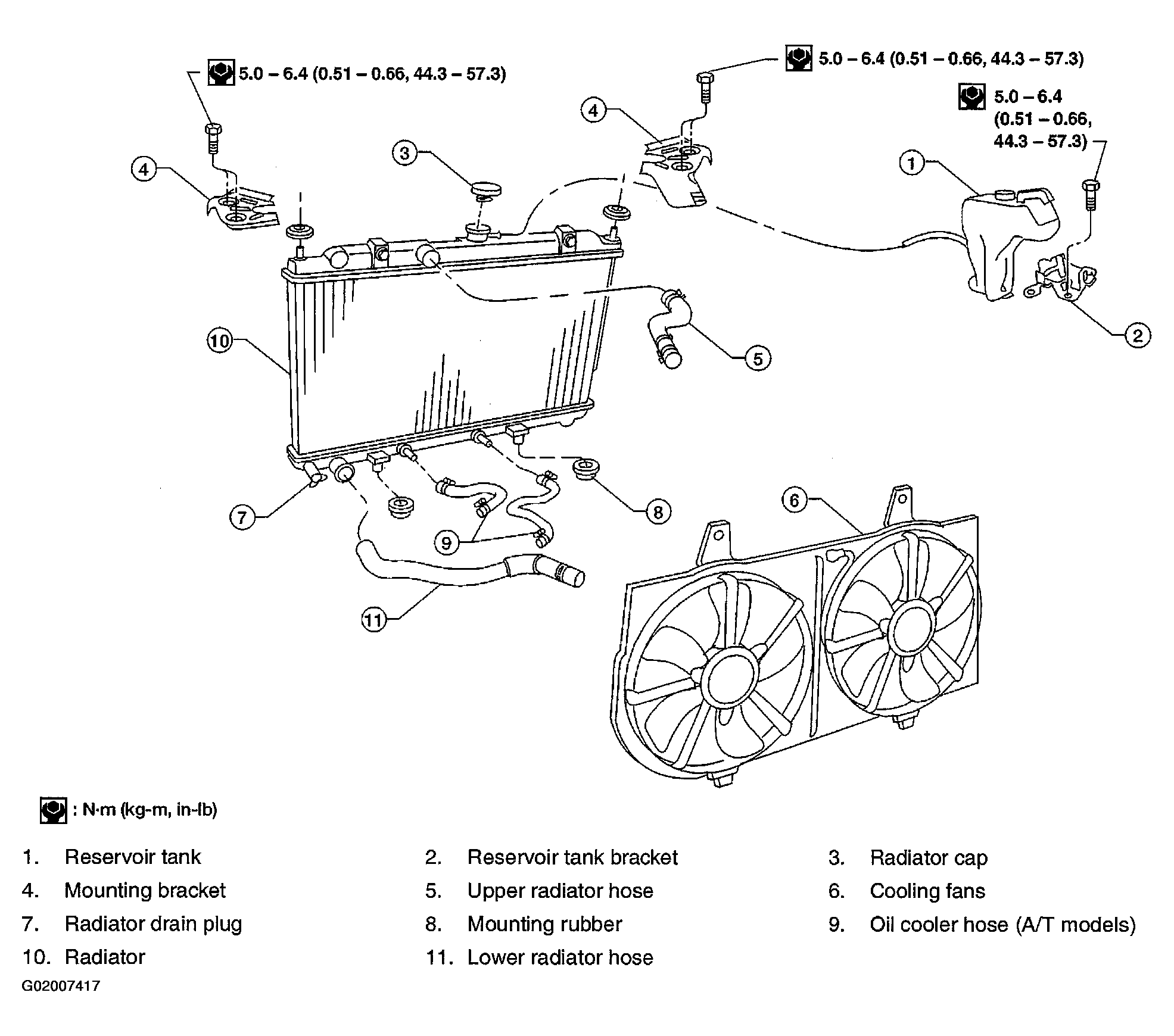

Fig 1: Identifying Radiator Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the upper and lower radiator hoses and mounting bracket.
Remove the radiator and radiator fan assembly as one unit.

CAUTION: Do not damage or scratch the radiator core when removing.
