Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Use a scraper to remove all traces of old RTV Silicone Sealant from mating surfaces and grooves. Also, completely clean any oil from these areas.
Apply a continuous bead of Genuine RTV Silicone Sealant or equivalent to the mating surfaces. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
- For oil pan, be sure RTV Silicone Sealant diameter is 3.5 to 4.5 mm (0.138 to 0.177 in).
- For areas except oil pan, be sure RTV Silicone Sealant diameter is 2.0 to 3.0 mm (0.079 to 0.118 in).

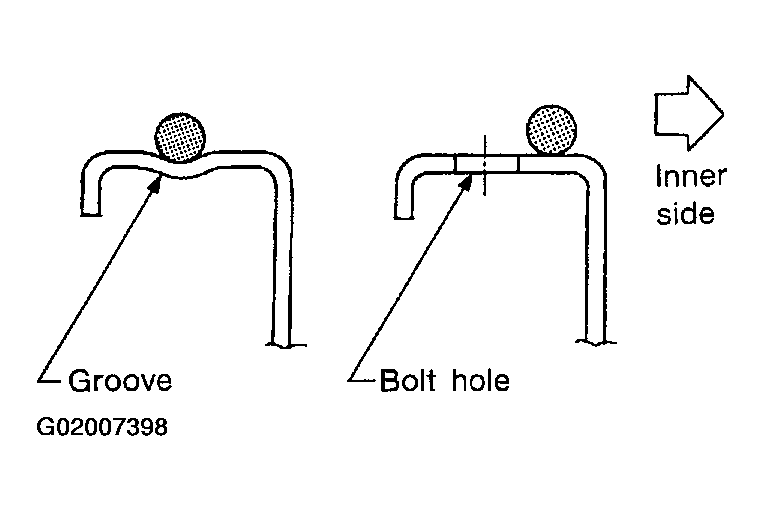

  Fig 1: Liquid Gasket Application Procedure (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Apply RTV Silicone Sealant around the inner side of bolt holes (unless otherwise specified).

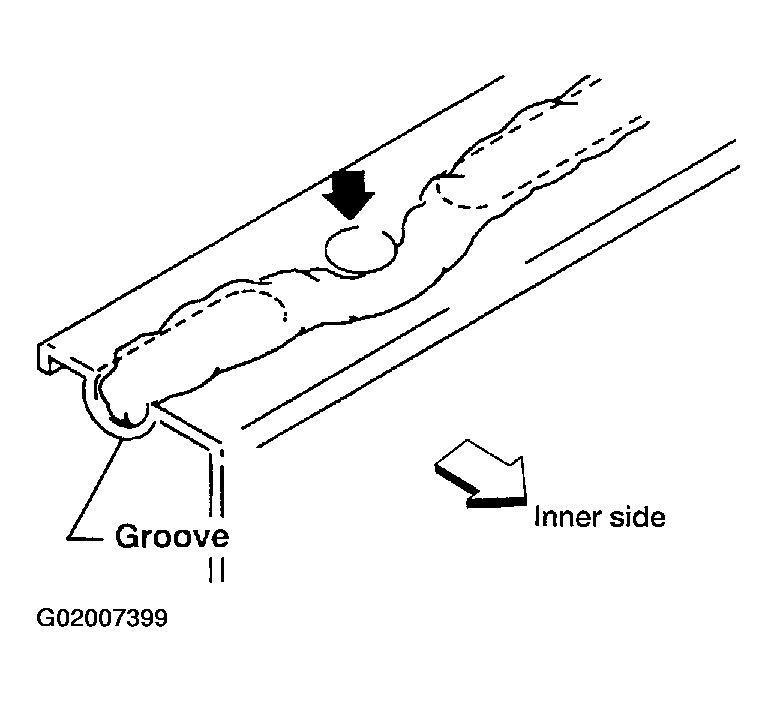

Fig 2: Liquid Gasket Application Procedure (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Assembly should be done within 5 minutes after coating.
Wait at least 30 minutes before refilling the engine with the recommended oil and coolant. Refer to RECOMMENDED FLUIDS AND LUBRICANTS .
