6. Warning Lamp Does Not Come On When Ignition Switch Is Turned On

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

INSPECTION START
Warning lamp circuit inspection

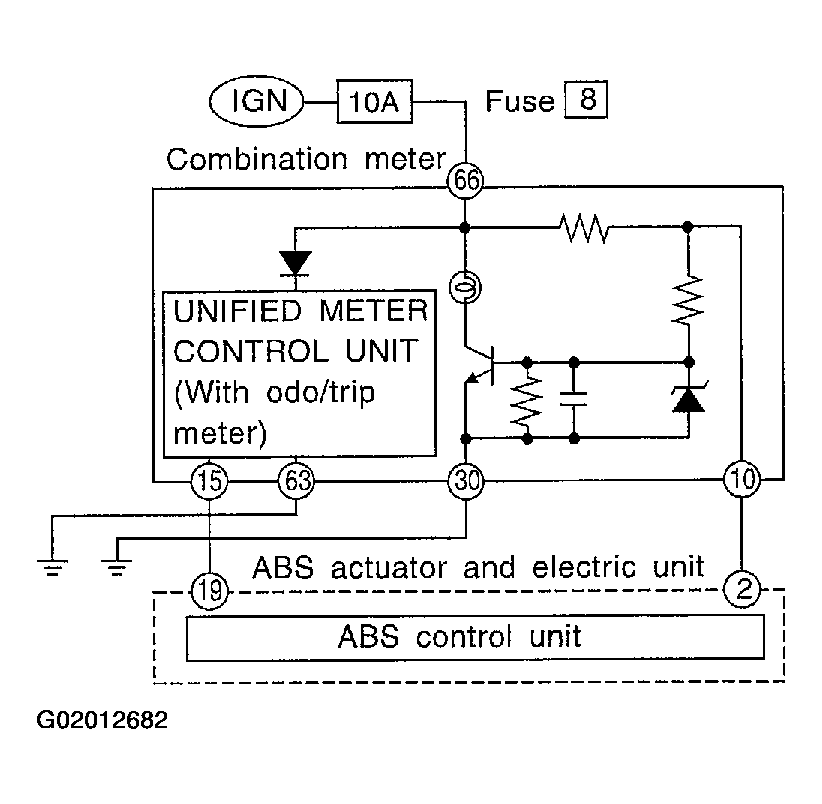

Fig 1: Warning Lamp Circuit Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
1. GO TO 2.
CHECK FUSE
Check 10A fuse No. 8. For fuse layout, refer to FUSES & CIRCUIT BREAKERS .

Is fuse OK?
1. Yes: GO TO 3.
2. No: Replace fuse.
CHECK WARNING LAMP ACTIVATE
Disconnect ABS actuator and electric unit connector.

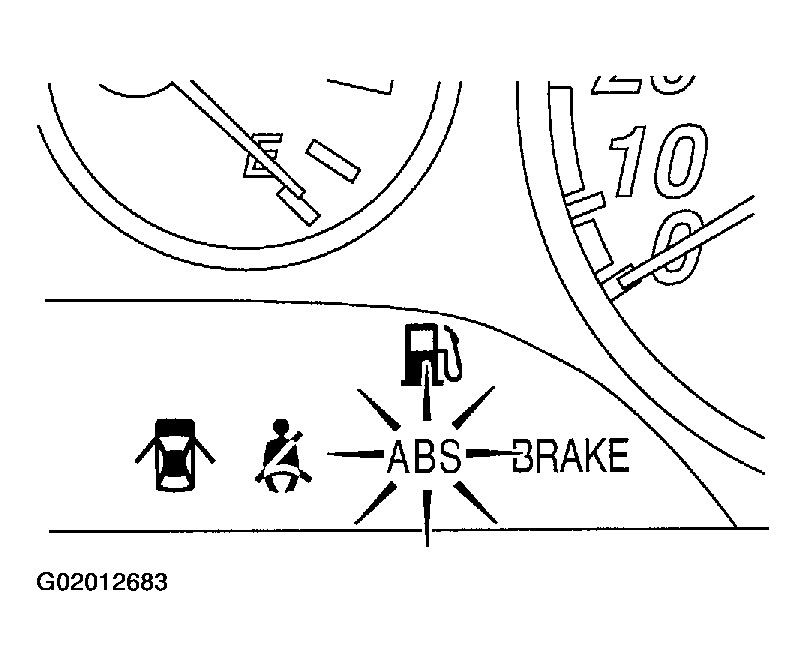

Fig 2: Checking Warning Lamp Activation
Courtesy of NISSAN MOTOR CO., U.S.A.

Does the warning lamp activate?
1. Yes: Replace ABS actuator and electric unit.
2. No: GO TO 4.
CHECK HARNESS FOR SHORT
1. Disconnect ABS actuator and electric unit connector and combination meter connector M24.
2. Check continuity between ABS actuator and electric unit connector E111 (body side) terminal 2.

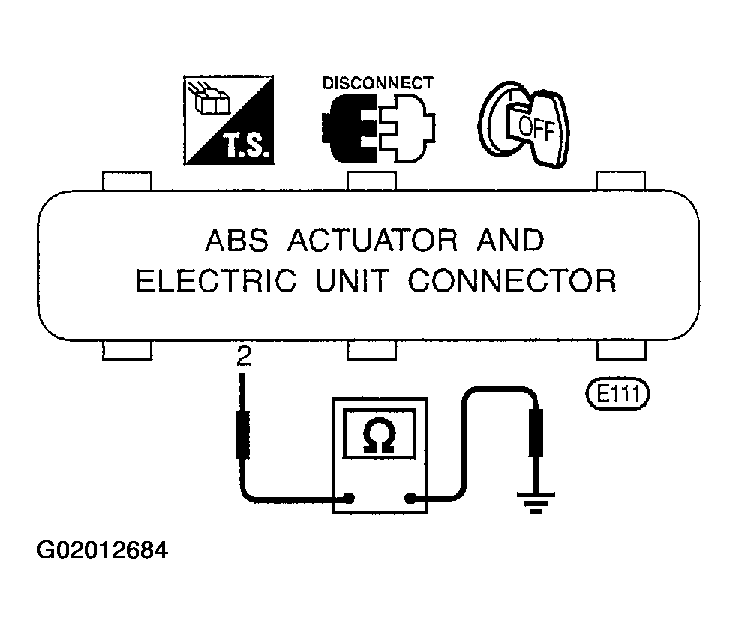

  Fig 3: Checking Harness For Short
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should not exist.
Does continuity exist?
1. Yes: Repair harness or connectors.
2. No: Check combination meter.
  Refer to "WARNING LAMPS ".
