5. Pedal Vibration and Noise

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

INSPECTION START
Pedal vibration and noise inspection

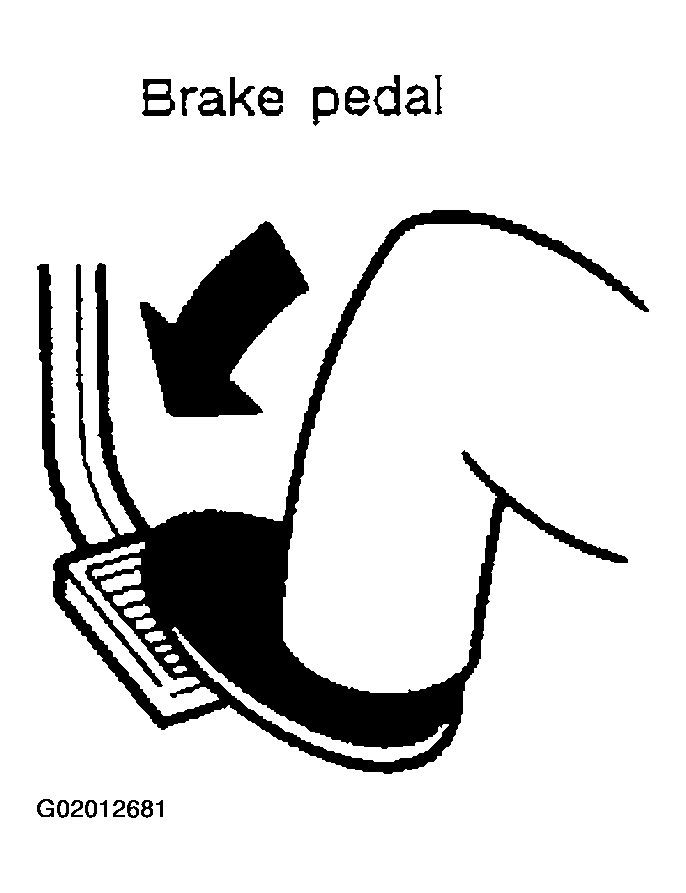

Fig 1: Pedal Vibration And Noise Inspection
Courtesy of NISSAN MOTOR CO., U.S.A.
1. GO TO 2.
CHECK SYMPTOM
1. Apply brake.
2. Start engine.
Does the symptom appear only when engine is started?
1. Yes: Carry out self-diagnosis. Refer to SELF-DIAGNOSIS PROCEDURE or SELF-DIAGNOSIS PROCEDURE .
2. No: Go to 3 .

NOTE: ABS may operate and cause vibration under any of the following conditions.

Applying brake gradually when shifting or operating clutch.
Low friction (slippery) road.
High speed cornering.
Driving over bumps and pot holes.
Engine speed is over 5,000 RPM with vehicle stopped.
