Tightening Torque Of Standard Bolts

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

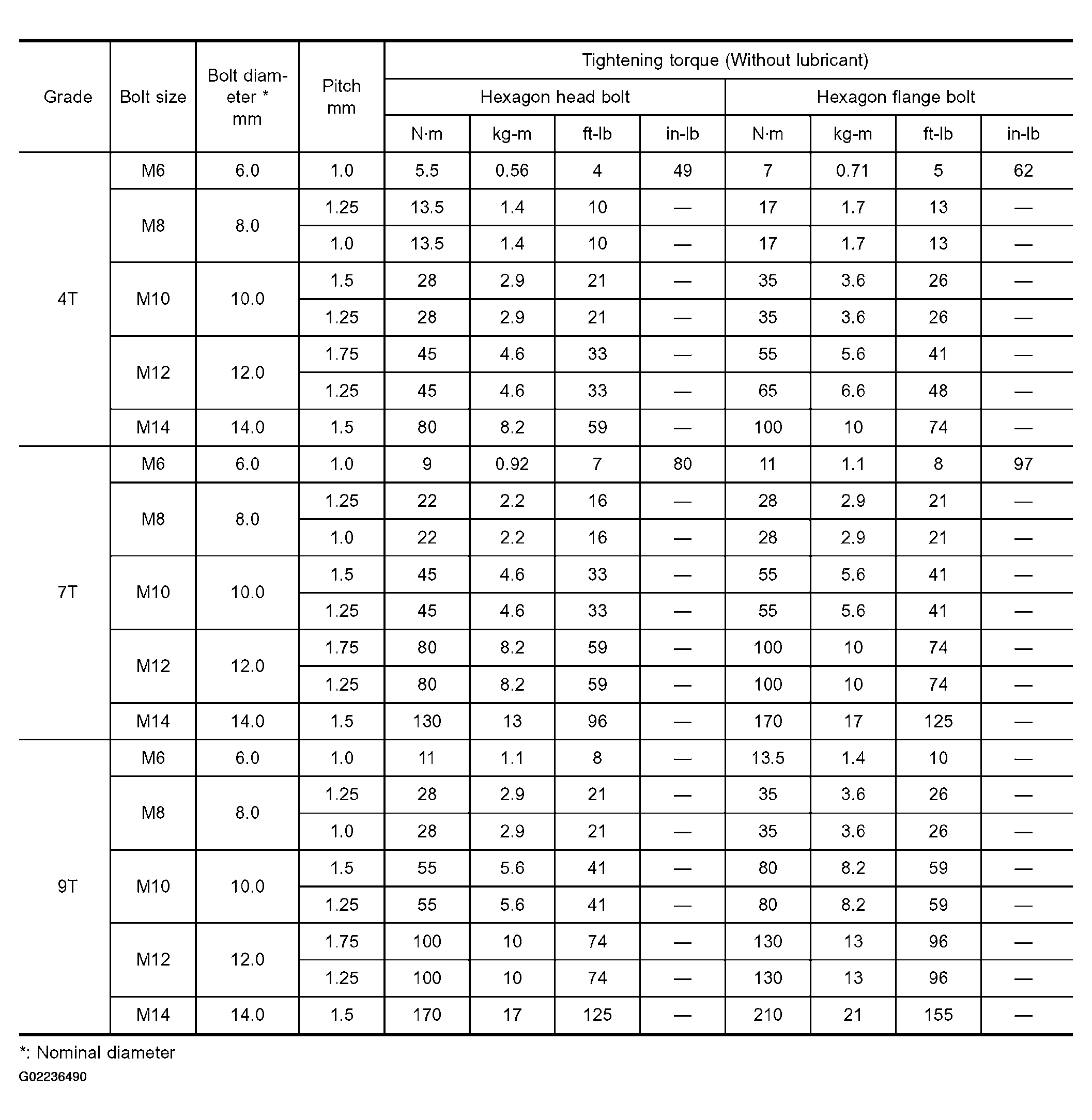

Fig 1: Displaying Tightening Torque Table Of Standard Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

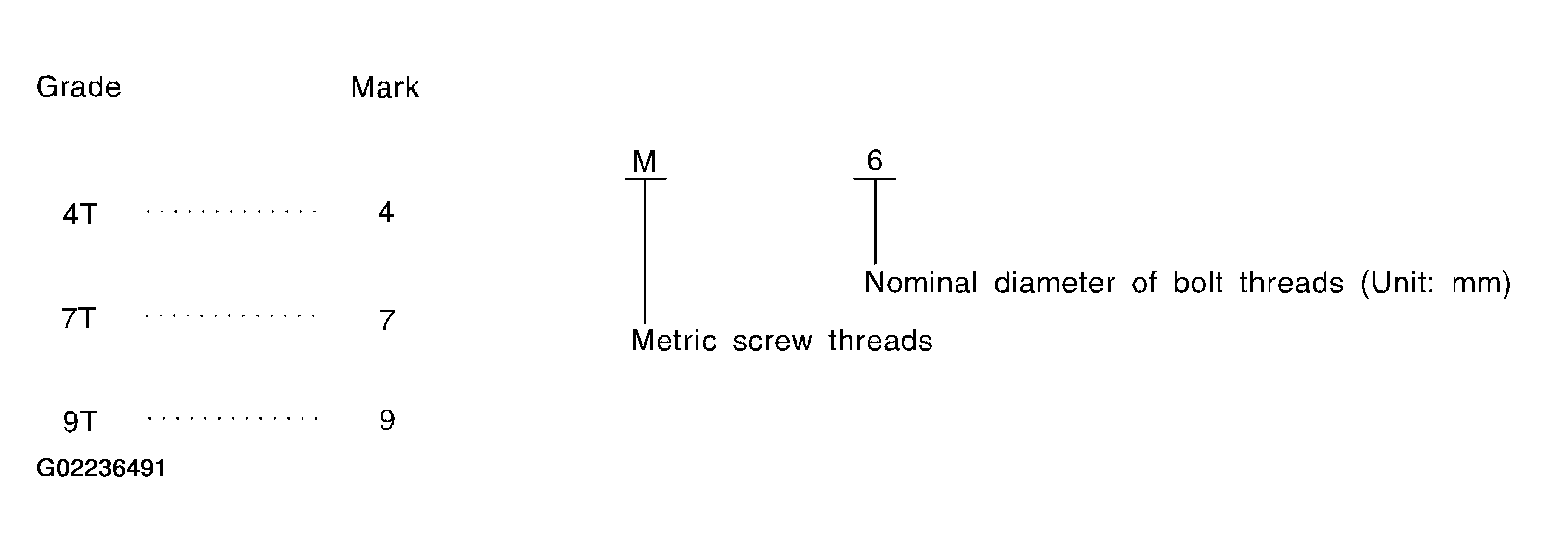

Fig 2: Locating Standard Bolts Grade & Mark

Courtesy of NISSAN MOTOR CO., U.S.A.
