Garage Jack And Safety Stand

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.

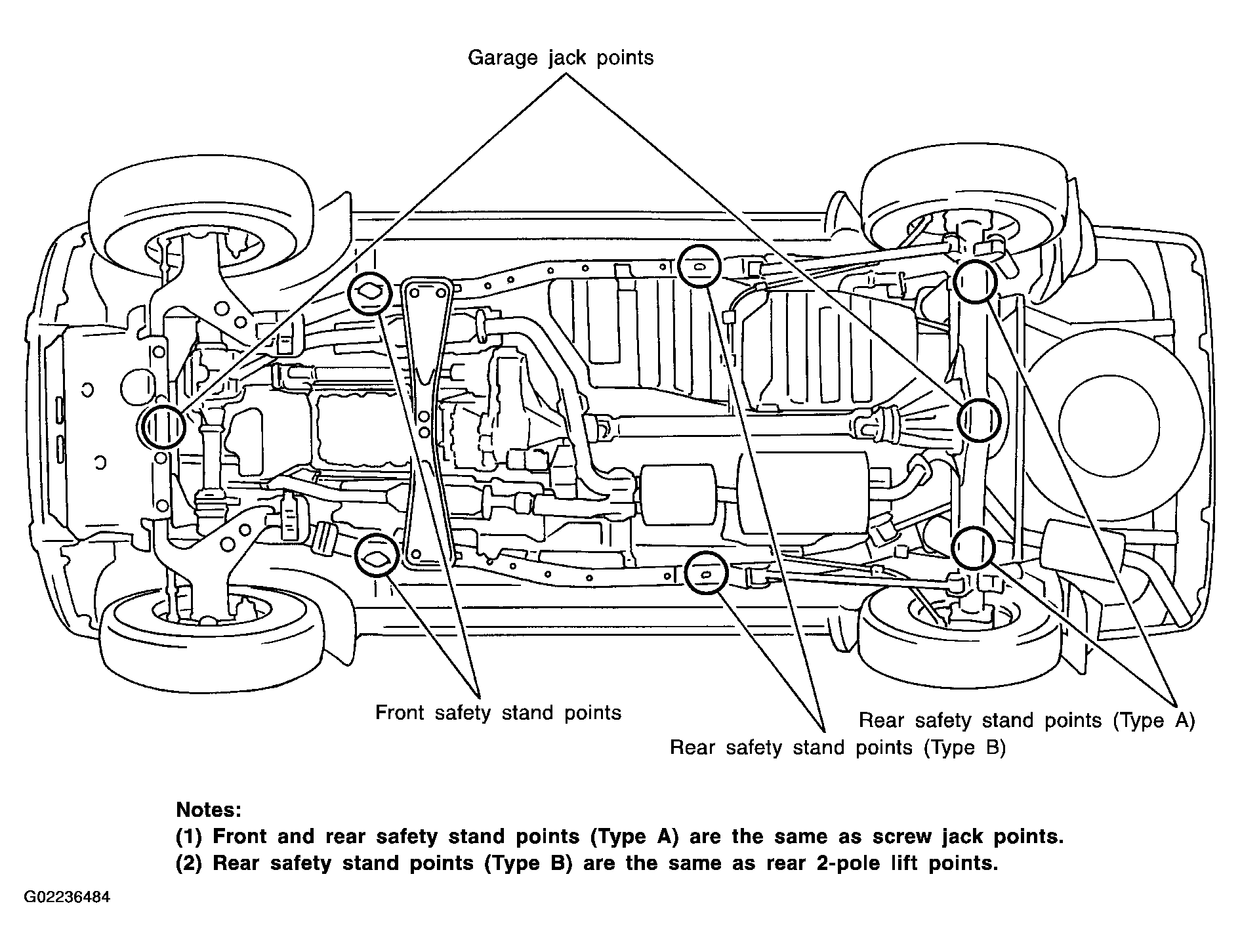

Fig 1: Locating Garage Jack & Safety Stand Points
G02236484Courtesy of NISSAN MOTOR CO., U.S.A.
