2-Pole Lift

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable and fuel lines.

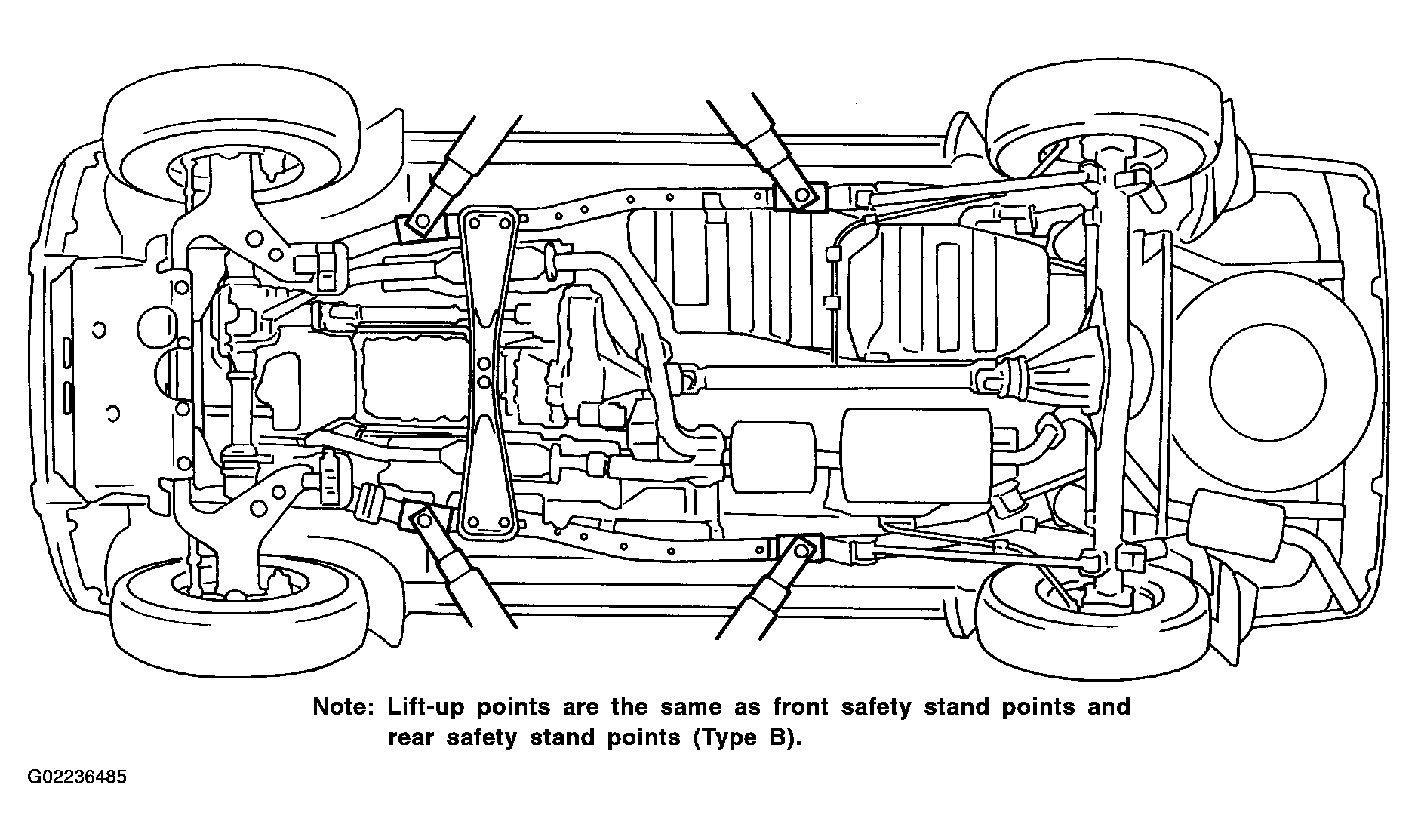

Fig 1: Locating 2-Pole Lift Points
G02236485Courtesy of NISSAN MOTOR CO., U.S.A.
