Water Intrusion

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

The incident may occur only during high humidity or in rainy/snowy weather. In such cases the incident could be caused by water intrusion on an electrical part. This can be simulated by soaking the car or running it through a car wash.

Do not spray water directly on any electrical components.

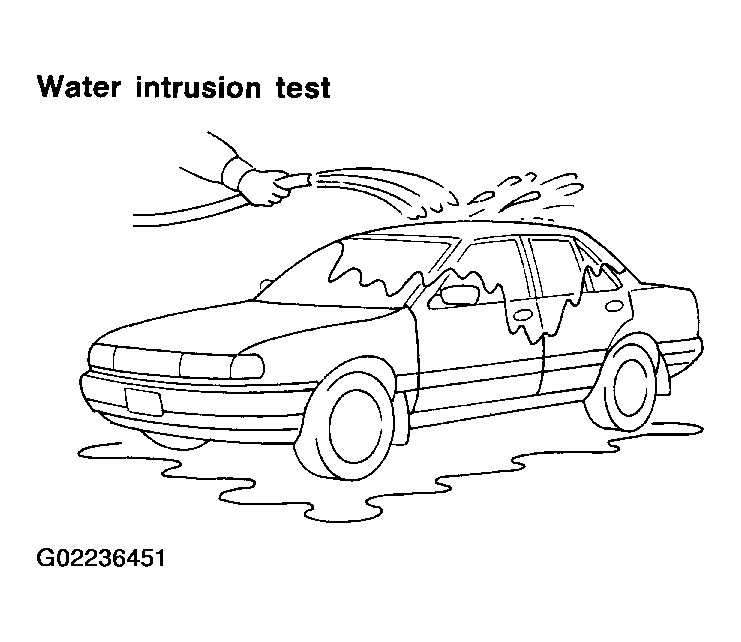

Fig 1: Displaying Connectors & Harness, Sensor & Relays Water Intrusion Test
G02236451Courtesy of NISSAN MOTOR CO., U.S.A.
