Heat Sensitive

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

The owner's incident may occur during hot weather or after car has sat for a short time. In such cases you will want to check for a heat sensitive condition.

To determine if an electrical component is heat sensitive, heat the component with a heat gun or equivalent.

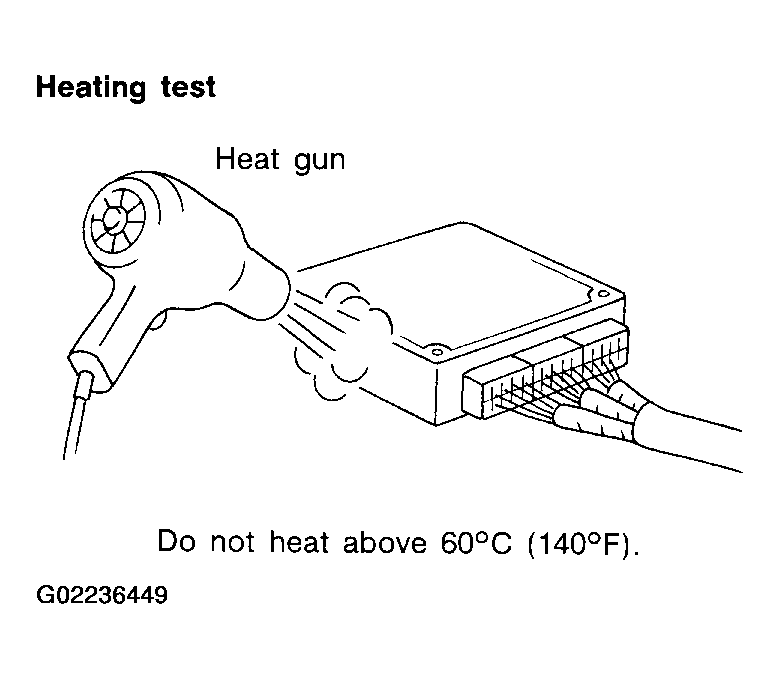

Fig 1: Displaying Connectors & Harness, Sensor & Relays Heat Sensitivity Test
G02236449Courtesy of NISSAN MOTOR CO., U.S.A.
