Incident Simulation Tests: Freezing

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

The customer may indicate the incident goes away after the car warms up (winter time). The cause could be related to water freezing somewhere in the wiring/electrical system.

There are two methods to check for this. The first is to arrange for the owner to leave his car overnight. Make sure it will get cold enough to demonstrate his complaint. Leave the car parked outside overnight. In the morning, do a quick and through diagnosis of those electrical components which could be affected.

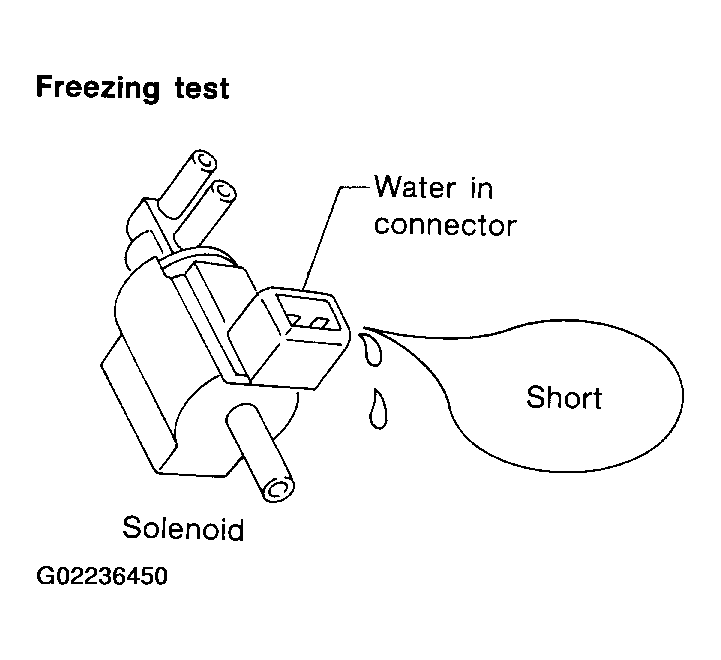

Fig 1: Displaying Connectors & Harness, Sensor & Relays Freezing Test
G02236450Courtesy of NISSAN MOTOR CO., U.S.A.

The second method is to put the suspect component into a freezer long enough for any water to freeze. Reinstall the part into the car and check for the reoccurrence of the incident. If it occurs, repair or replace the component.
