How To Follow Test Groups In Trouble Diagnosis

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

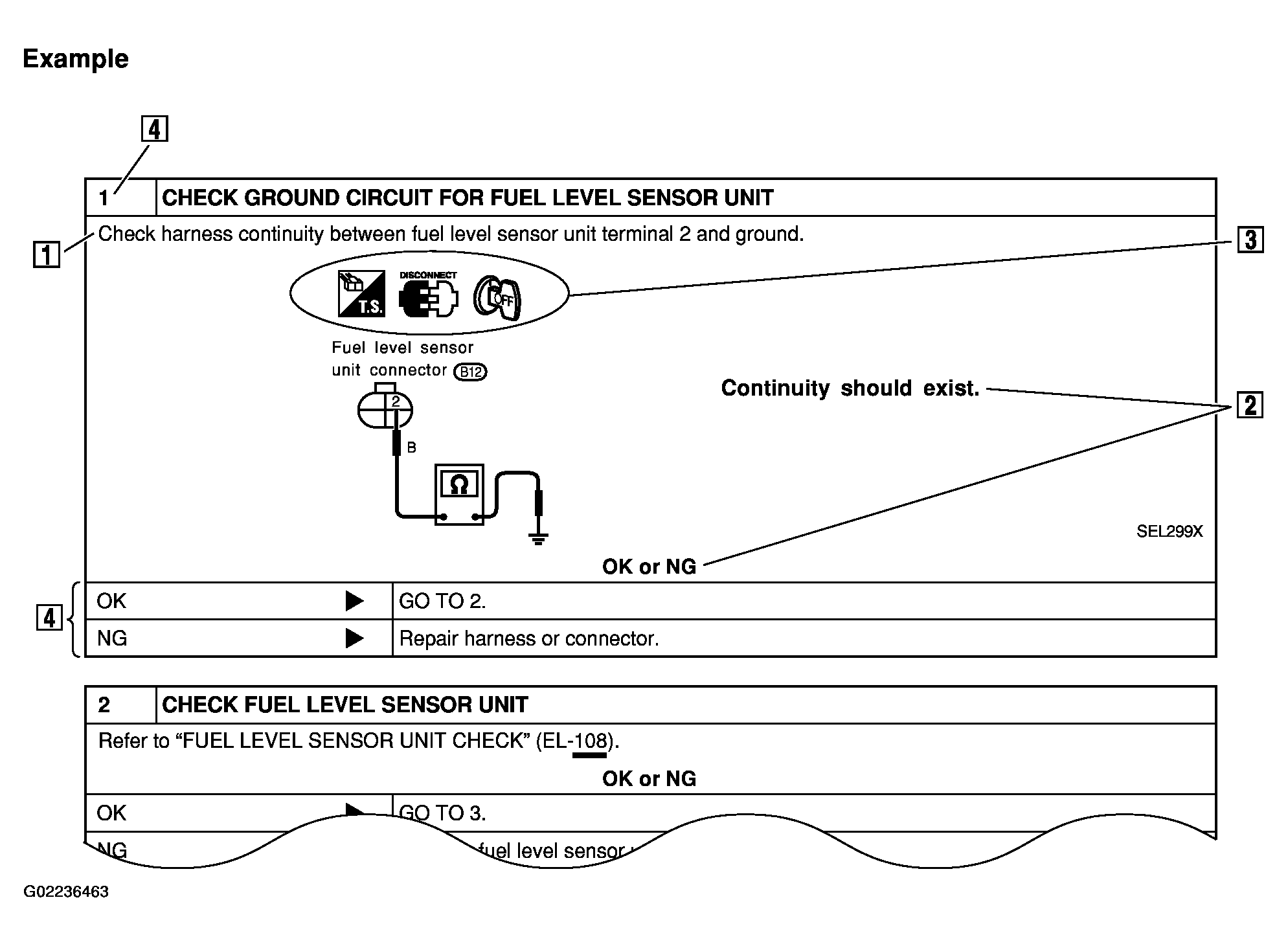

Fig 1: Locating Example How To Follow Test Groups In Trouble Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

Work And Diagnostic Procedure
Start to diagnose an incident using procedures indicated in enclosed test groups.
Questions And Required Results
Questions and required results are indicated in bold type in test group

The meaning of are as follows:
1. Battery voltage 11 - 14V or approximately 12V
2. Voltage: Approximately 0V Less than 1V
Symbol Used In Illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing an incident, familiarize yourself with each symbol. Refer to CONNECTOR SYMBOLS and KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES .
Action items
Next action for each test group is indicated based on result of each question. Test group number is shown in the left upper portion of each test group.
